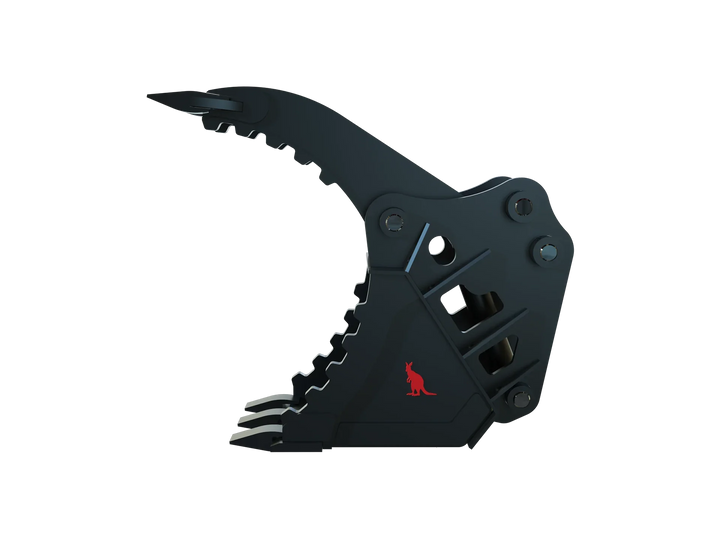

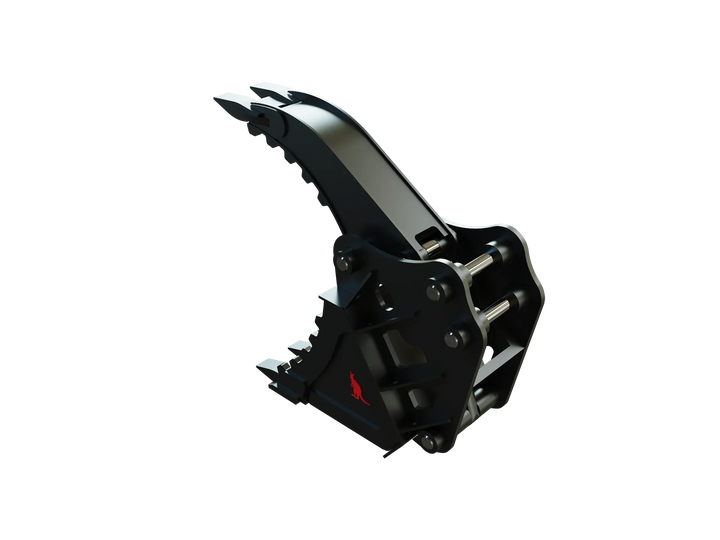

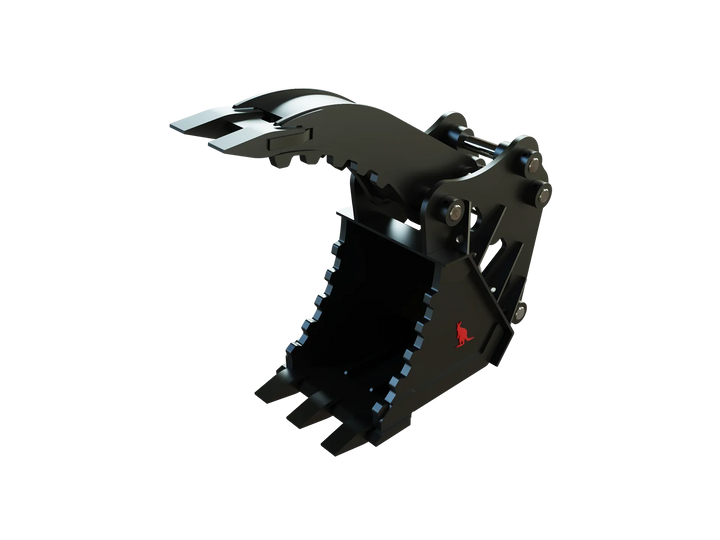

Roo Attachments 18T to 23T hydraulic Grapple Bucket. The perfect attachments for handing debris, scrap removal, brush, landscaping, demolition and concrete piping work.
Specifications:
Weight: 1244Kg
Width: 960mm
Opening: 2030mm
Includes hoses and couplers
*1/2 inch FF or Poppet* Couplers
Perfect for
Case CX210, CX225
Cat 320, 322, 323
Doosan DX225
Hitachi ZX200, ZX210, ZX225
Hyundai R210
JCB JS220, JS200
Kobelco SK200, SK210, SK225
Komatsu PC200, HB210, PC228
Liebher R920, R922, R916
Luigong 922
Sany SY215C
Sumitomo SH210
Volvo EC210, EC220
Yuchai YC230
Please provide machine make & model and hydraulic coupler type in Customer Comments
Checking your machines hitch specifications.
The pin layout of your machine is crucial especially for machines with Half Hitches (pull pin hitch).
Please choose the make your machine from the drop down menu and compare its hitch specs.
- Pin Diameter = P
- Pin Centres = C
- Ear Width/Boss Width = E
Note that some machine models are made by a different manufacturer (OEM).
Examples of this include the early model Case CX17B which at the time was manufactured by Kobelco and being the SK17SR-2. Both have the same hitch specs.
Recently Yanmar have produced the Kobelco SK17SR-5 and -6 and the Case CX17C is now produced by Hyundai being the R17Z-9A.
So please review all hitch specs from the drop down menu and check measure all pin specs of your machine prior to purchasing.
If your machines hitch specs are not on the list please provide its specifications in the SPECIAL INSTRUCTIONS FOR SELLER on the first page of the checkout.
How to measure your hitch specs:
- Choose one of your attachments.
- Measure the Pin Diameters. Check both front and back pins.
- Measure the pin centres. From the centre of the front pin to the centre of the back pin.
- Measure the width where the hitch of the machine fits between the ears or bosses. Which ever is narrowest.
Other information required:
