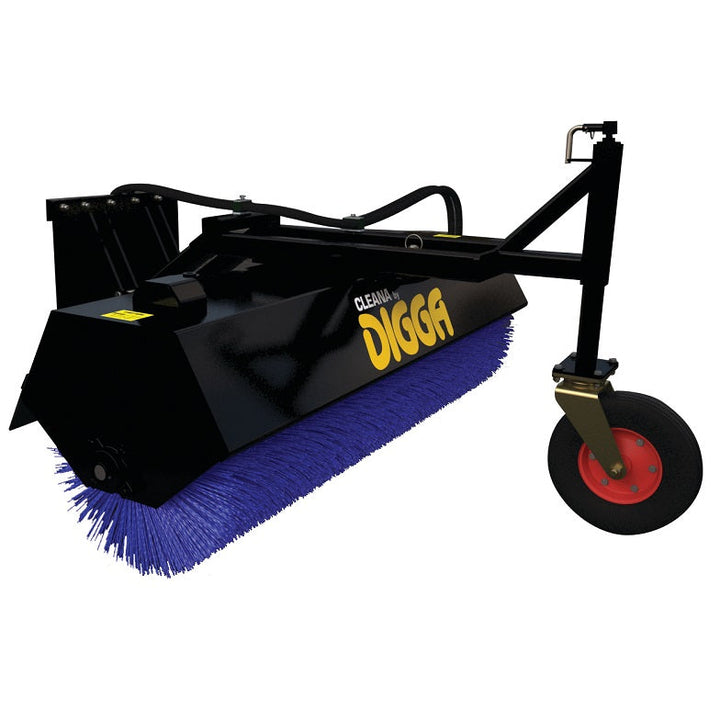

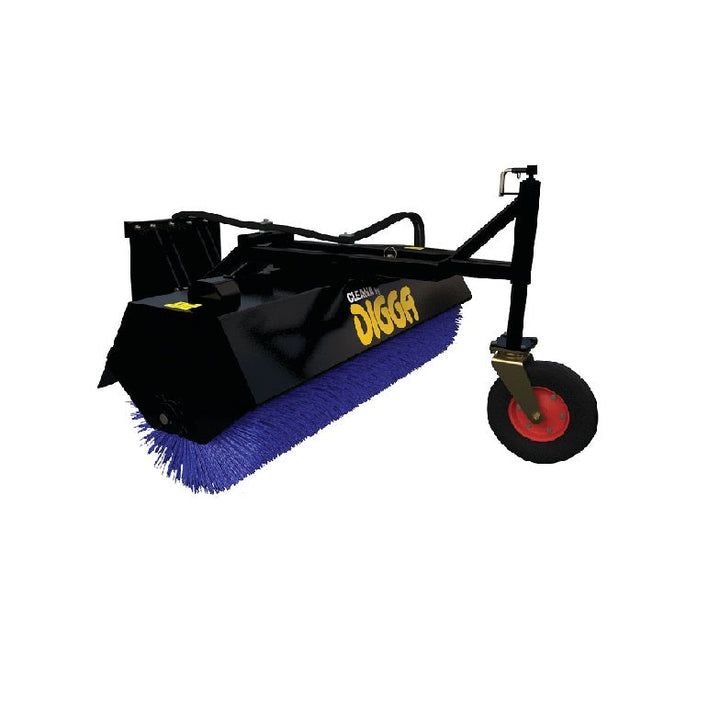

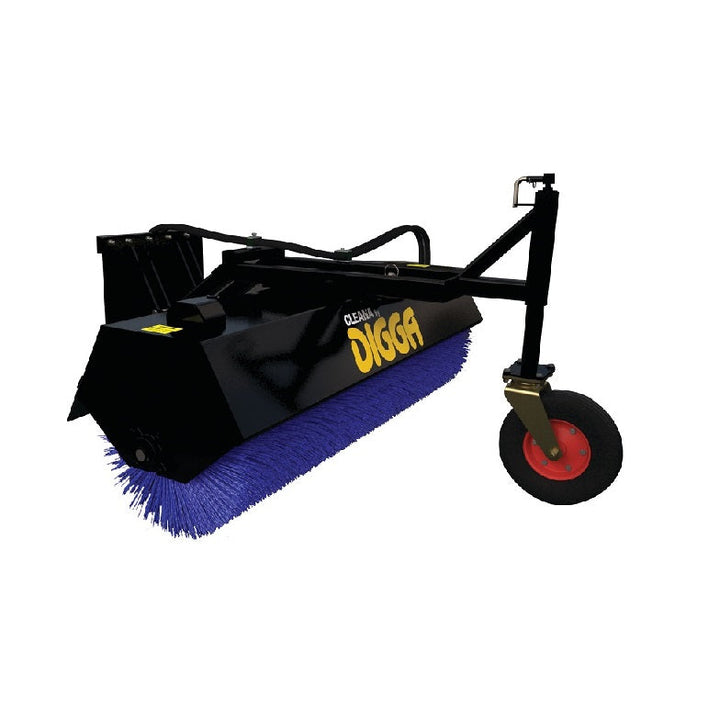

Angle Broom Manual Pivot Skid Steer Loader (Standard Flow) & Tractors
Angle Broom (Manual Pivot) suits all makes and models of Skid Steer Loaders and many Tractors. They are also available in Hydraulic Pivot for Dual Remote Machines and Hydraulic Pivot for Single Remote Machines.
PROUDLY PRODUCED AND MANUFACTURED IN AUSTRALIA
"Plug and Play" Package includes:
1x Angle Broom
1x Jockey Wheel
1x Hoses and couplers (poppet or flat faced)
1x Standard frame (Non-Standard frames are also available)
The Open Face Skid Steers Bucket Broom sweeps right up against structures, walls and gutters to collect a variety of debris in both outdoor (car parks, road construction, stock yards) and indoor (factory, warehouse, shipping containers) settings.
Features:
- Forward and Reverse broom action
- Easy to use
- Adjustable heavy duty Jockey Wheel
- Bi-directional slew
- Easily adjustable support legs
- Replaceable long life poly brush
- Longer brush life
- Easy to empty
Specifications:
| 1800mm | 2000mm | 2500mm | |
| Rec Flow | 30-75 lpm | 30-75 lpm | 30-75 lpm |
| Max Press. | 205 Bar | 205 Bar | 205 Bar |
| Height | 1116mm | 1116mm | 1116mm |
| Width | 2020mm | 2220mm | 2720mm |
| Depth | 2150mm | 2150mm | 2150mm |
| Approx Weight | 450kg | 470kg | 550kg |
| Broom Width (at 15°) | 738mm |
1931mm | 2318mm |
| Broom Width (at 30°) | 1558mm |
1732mm | 2078mm |
Pick up available from Brisbane, Gold Coast, Sydney or Melbourne
Freight available Australia wide.
| Angle Broom Width |
Multi Fit 1800mm Poly, Multi Fit 2000mm Poly, Multi Fit 2500mm Poly, Multi Fit 1800mm Poly - Hydraulic Pivot - Dual Remote, Multi Fit 2000mm Poly - Hydraulic Pivot - Dual Remote, Multi Fit 2500mm Poly - Hydraulic Pivot - Dual Remote, Multi Fit 1800mm Poly - Hydraulic Pivot - Single Remote, Multi Fit 2000mm Poly - Hydraulic Pivot - Single Remote, Multi Fit 2500mm Poly - Hydraulic Pivot - Single Remote |
|---|
