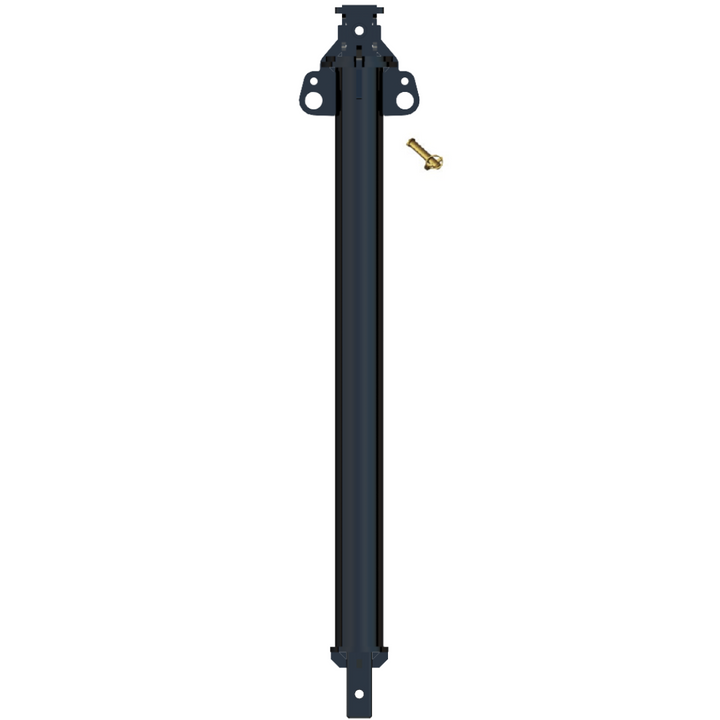

Auger Extensions To Suit A8, RC8 & DR8 Augers - INNER
Auger Extensions To Suit A8, RC8 & DR8 Augers - INNER
Digga’s drilling extension range is the ultimate in quality and cost effectiveness. Completely manufactured by Digga using only the highest grade materials and strictest quality control. Our range of extensions are suited for machines between 8 and 20 tonnes.
Features
• Easy connect design. No adaptors required.
• Welded hub and shaft reduces excess play in the
connections ensuring a straighter hole.
• Telescopic design makes it easier to drill deeper
while making it easier to store and transport extensions.
• Australian made quality
Specifications

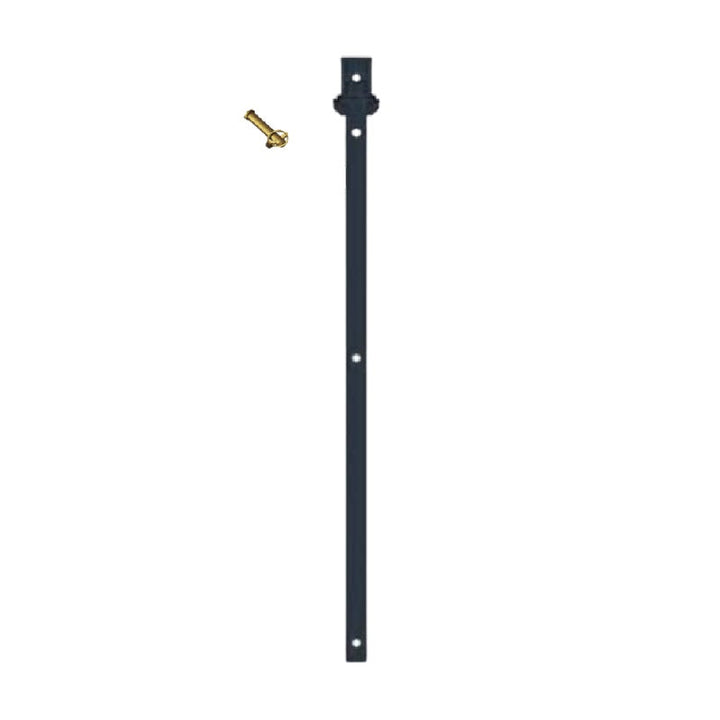

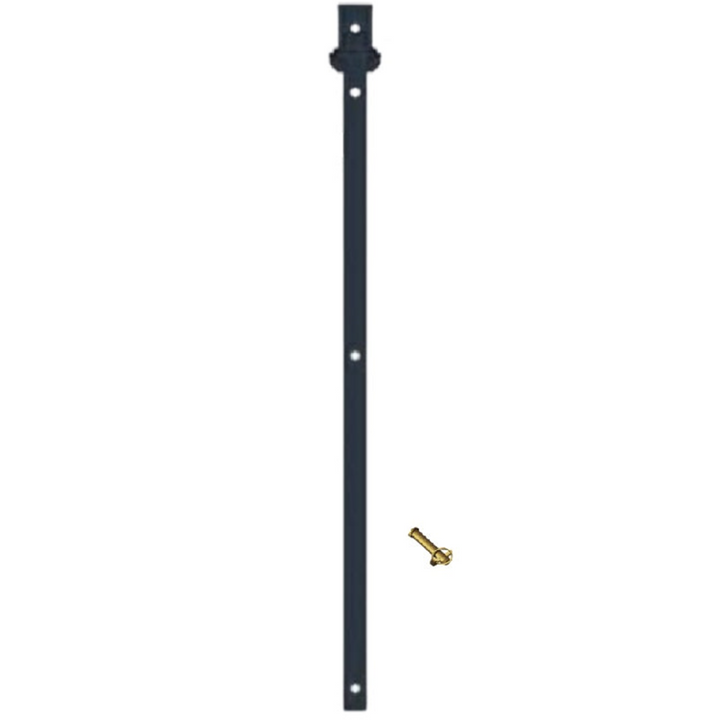

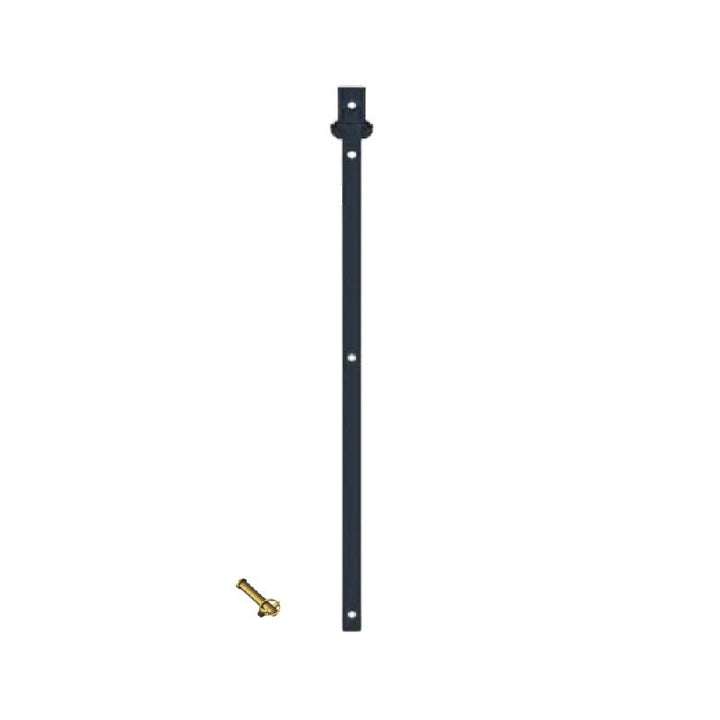

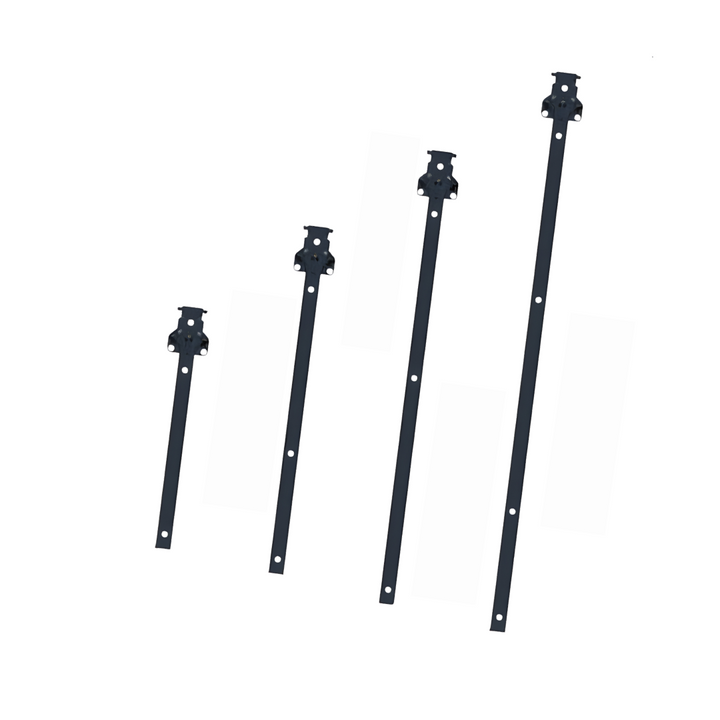

Available Length: 1000mm, 1500mm, 2000mm, 2500mm, 3000mm, 3500mm & 4000mm

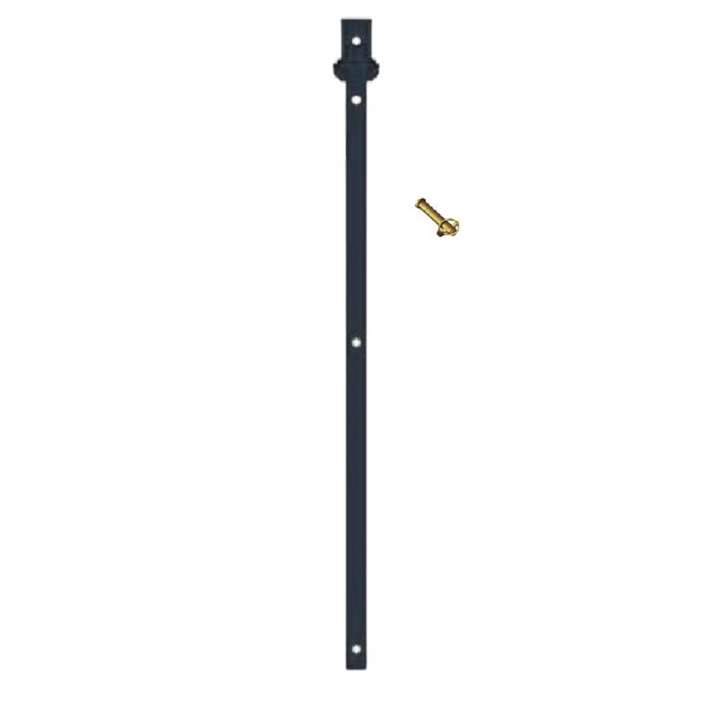

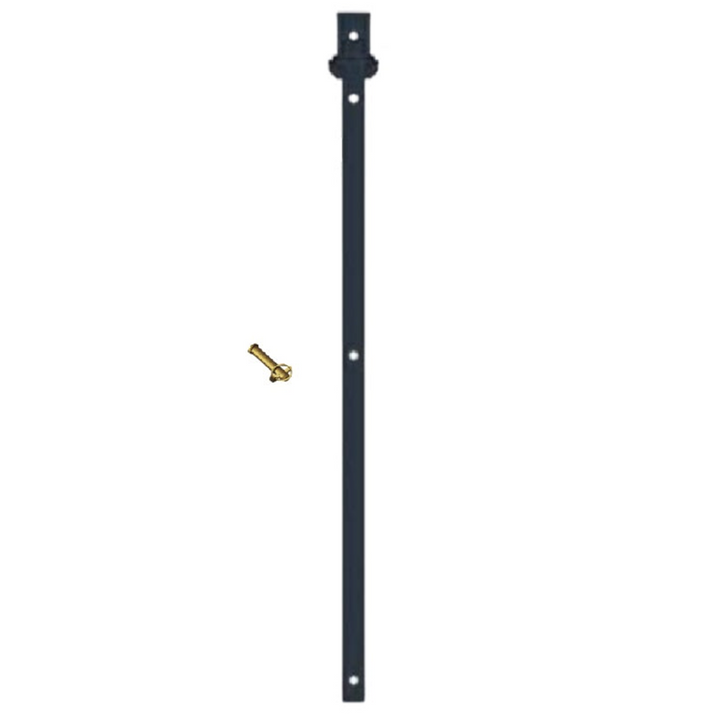

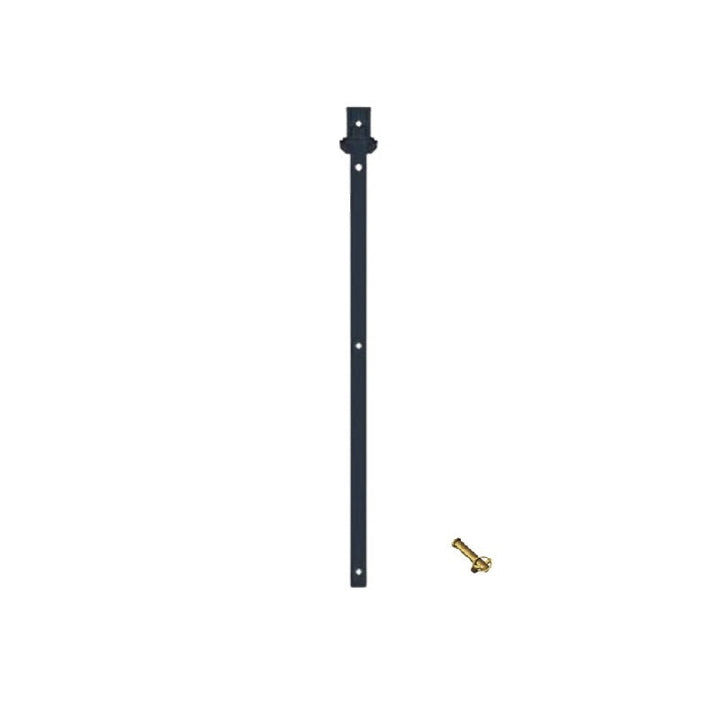

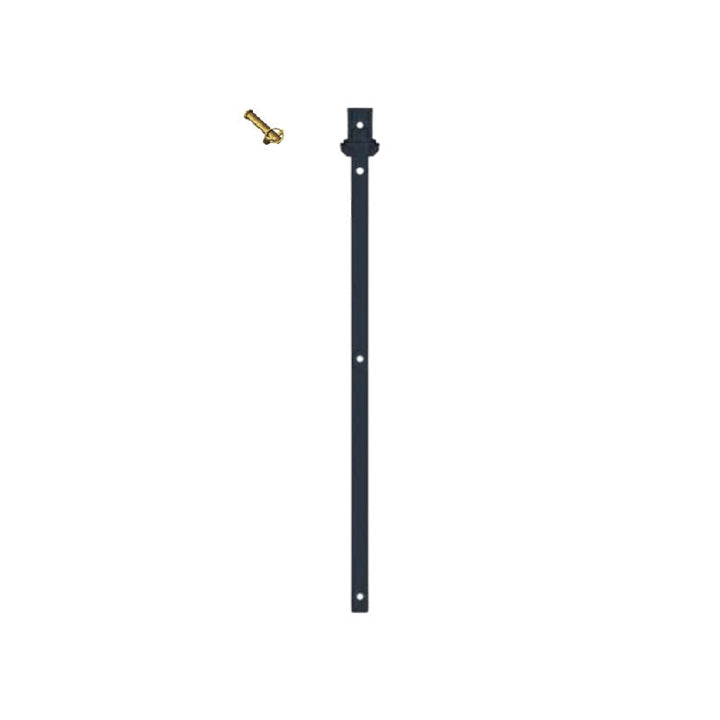

Type: Inner
Auger Suitability: A8, RC8, DR8
Drive Suitability: PD4-5 to PD15
Machine Type: 8 To 20 Tonne
Max Torque: 14,000Nm
Standard Hub: 75mm / Square
Body: 75mm Square Solid
Availability: 2500mm to 4000mm are made to order
EASY TRANSPORTATION
Telescopic extensions can slide inside the outer extension and even the auger for easy transportation.
EASY LENGTH ADJUSTMENT
The length of your auger and Telescopic extension can easily be adjusted for required drilling depth.
NOTE
XT75HD Extensions will not fit inside A8 and RC8 augers which are 450mm (18”) and below in size and DR8 augers 300mm (12”) and below in diameter.
Size |

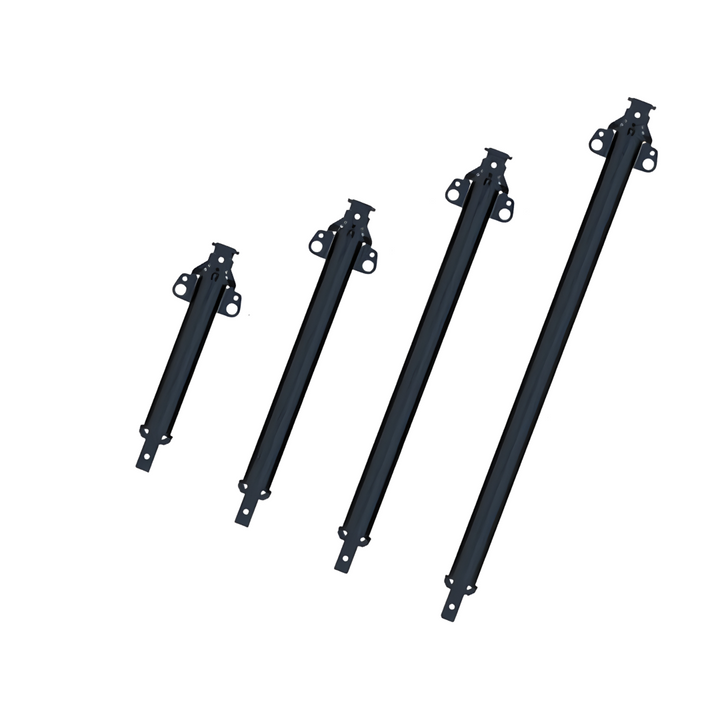

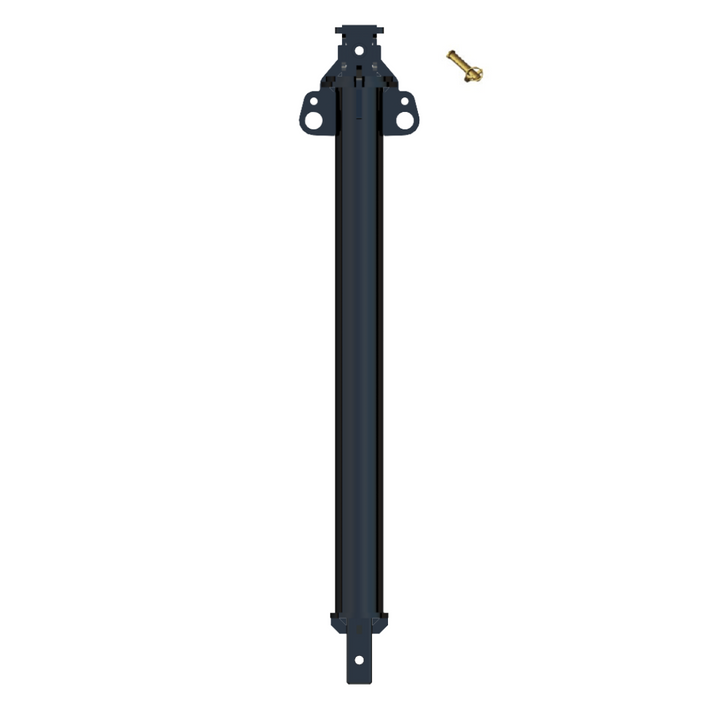

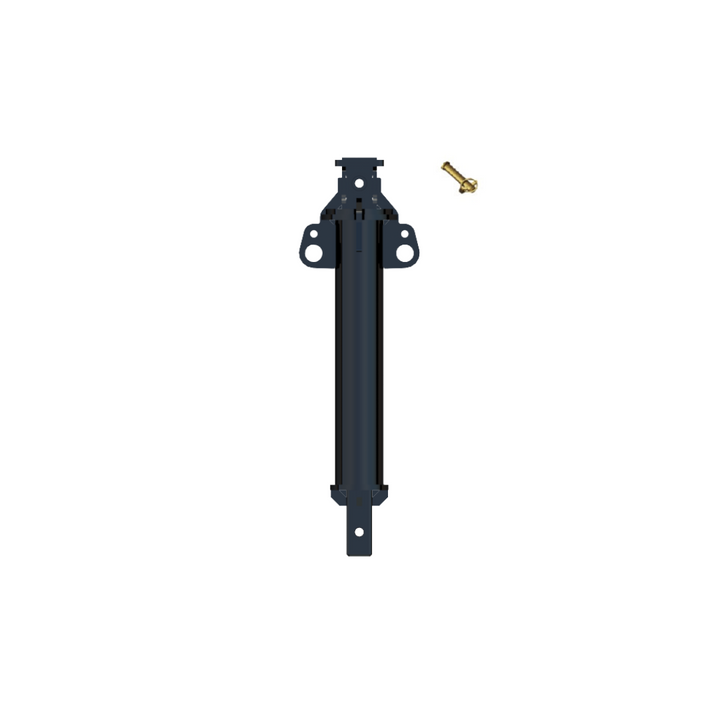

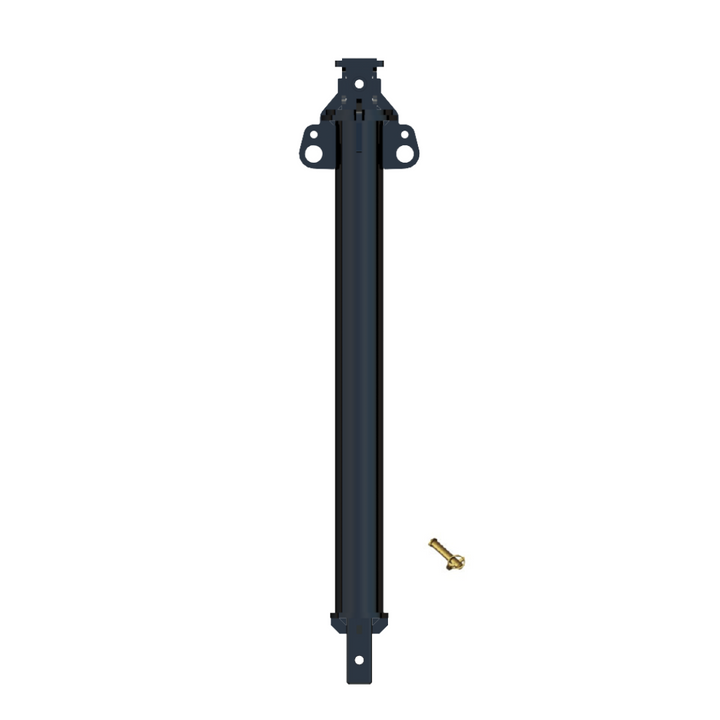

1000mm Inner Extension - 75mm Square, 1500mm Inner Extension - 75mm Square, 2000mm Inner Extension - 75mm Square, 2500mm Inner Extension - 75mm Square, 3000mm Inner Extension - 75mm Square, 3500mm Inner Extension - 75mm Square, 4000mm Inner Extension - 75mm Square, 1000mm Outer Extension - 75mm Square, 1500mm Outer Extension - 75mm Square, 2000mm Outer Extension - 75mm Square, 2500mm Outer Extension - 75mm Square, 3000mm Outer Extension - 75mm Square, 3500mm Outer Extension - 75mm Square, 4000mm Outer Extension - 75mm Square, 4500mm Outer Extension - 75mm Square, 5000mm Outer Extension - 75mm Square |
---|
