NOTE: Due to high demand on the Digga 4 in 1 Bucket please call us on 0459 WAREHOUSE (that's 0459927346) prior to placing your order.

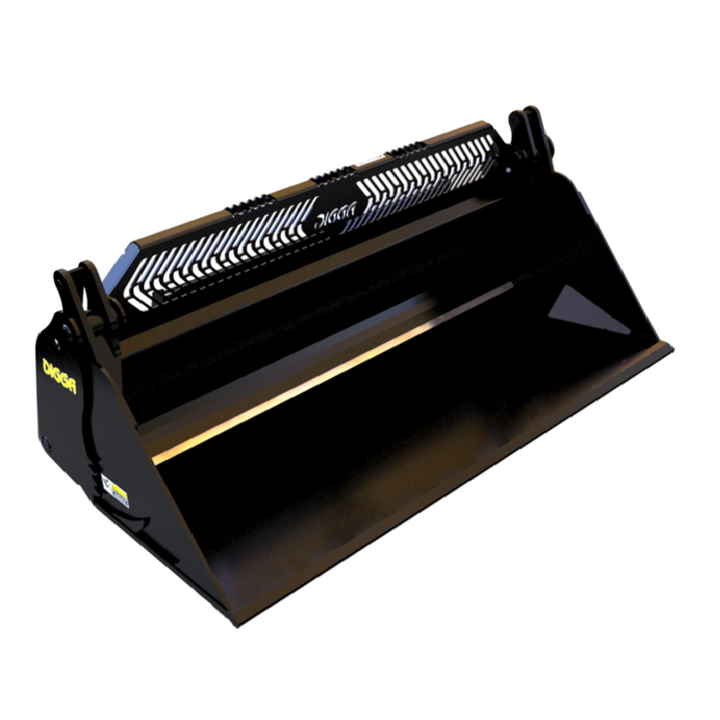

Digga 4 in 1 Bucket - Standard Range
Machine Suitability: extensive range to suit most machines
Your go-to 4 in 1 bucket for grading, scraping, grappling, dozing, spreading and construction work.
Price Inclusions:
BUCKET, HOSES AND COUPLERS
*This product is built to order. Please contact us for current build and delivery times before purchace.
Options:
Standard Range: 1450mm - 1727mm (Low Cut Grill / Standard Floor)
*Lock Valve is required for CAT, ASV, Kubota and JCB Machines.

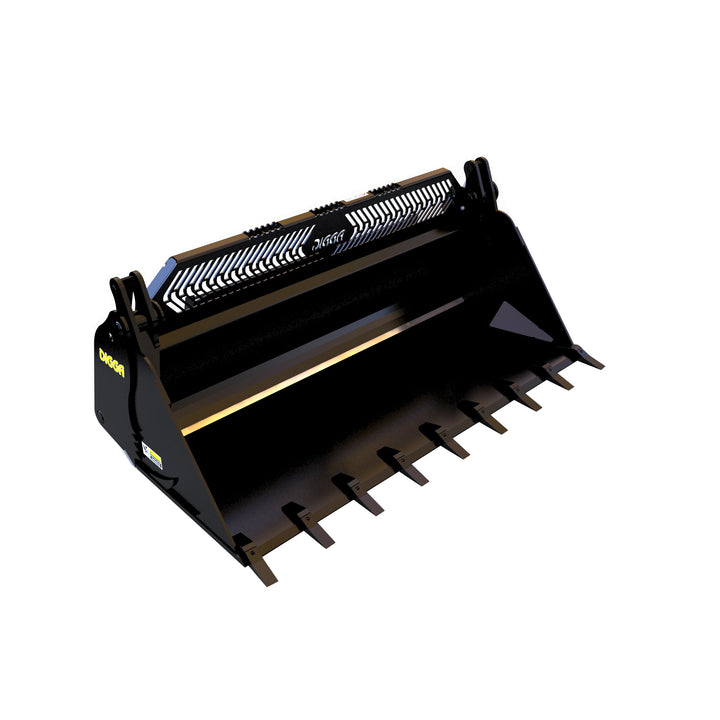

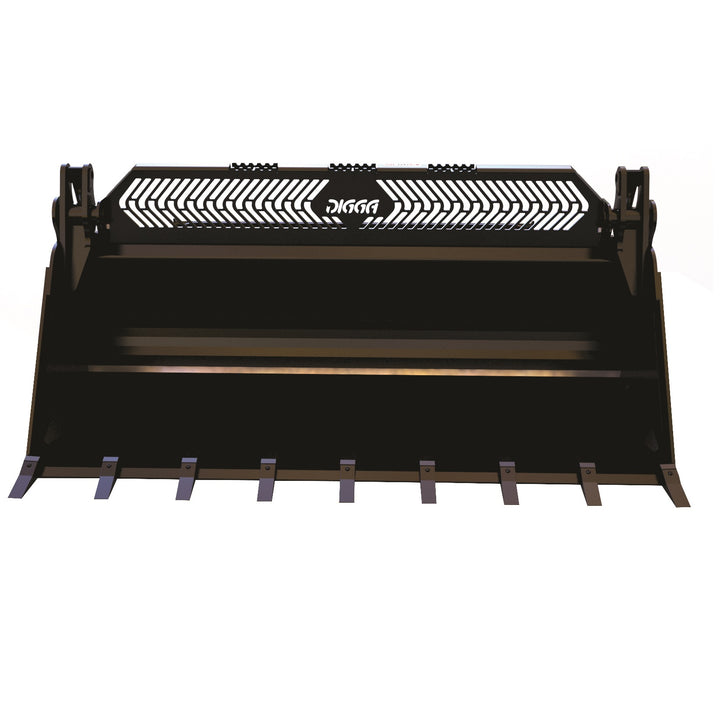

Add 7 Chisel Teeth or 7 Tiger Teeth*
Add B.O.E (Cutting Edge) x1 - Front*

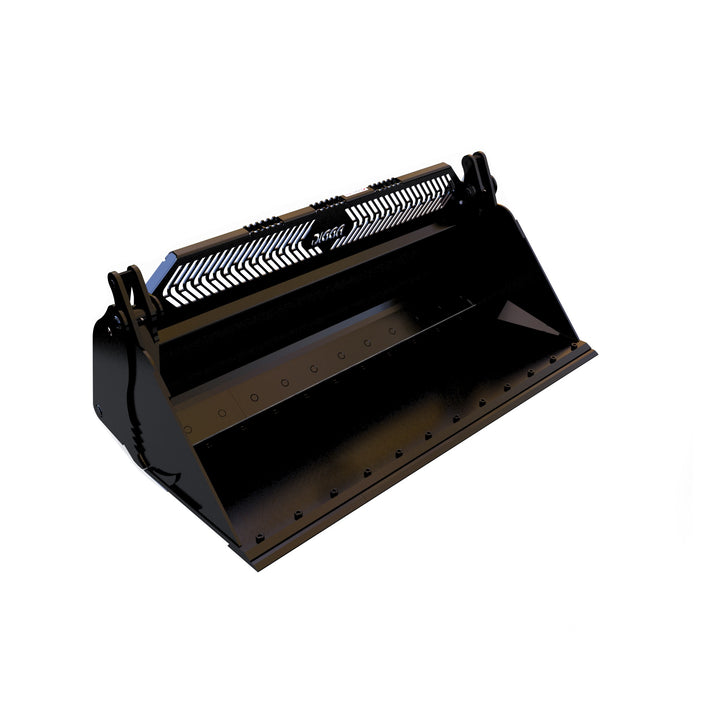

Add B.O.E (Cutting Edge) x3 - Front, Dozer & Rear*
*Teeth and Cutting Edges must be purchaced at time of order
*For Custom Teeth Options please contact us directly.
Also available in High Volume Range: 1727mm - 2130mm (High Cut Grill / Long Floor)

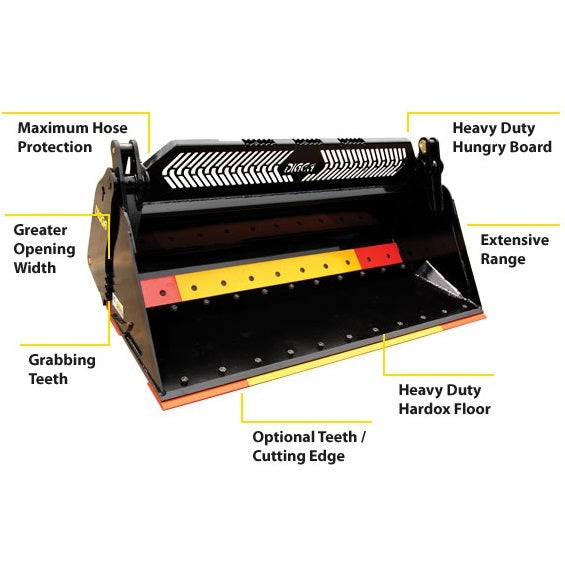

Features:
- Grabbing teeth profiled on both front/rear overlap for greater grip of logs or other debris.
- Side curved sections create greater opening bucket width of 860mm.
- 1-piece heavy duty fully welded 6mm grill/hungry board with unique high visibility design, for clear vision of both front and back bucket edge.
- Standard Heavy Duty 20mm Floors.
- Optional reversible bolt on cutting edges for all 3 edges of the bucket
- Optional chisel or tiger teeth with pin on design.
- Full range available from 880mm to 2130mm.
- 12mm and 16mm floors available on request.
| STANDARD RANGE | 1450 MM | 1550 MM | 1600 MM |
|---|---|---|---|
| Depth (Bucket Closed) | 826 mm | 826 mm | 826 mm |
| Bucket Cutting Width | 1450 mm | 1550 mm | 1600 mm |
| Height | 643 mm | 643 mm | 643 mm |
| Weight | 330 kg | 345 kg | 352 kg |
| Struck Volume | 0.20 m³ | 0.22 m³ | 0.22 m³ |
| Heaped Volume | 0.26 m³ | 0.29 m³ | 0.29 m³ |
| STANDARD RANGE (CONT) | 1650 MM | 1680 MM | 1727 MM |
|---|---|---|---|
| Depth (Bucket Closed) | 826 mm | 826 mm | 826 mm |
| Bucket Cutting Width | 1650 mm | 1680 mm | 1727 mm |
| Height | 643 mm | 643 mm | 643 mm |
| Weight | 360 kg | 370 kg | 380 kg |
| Struck Volume | 0.23 m³ | 0.23 m³ | 0.24 m³ |
| Heaped Volume | 0.30 m³ | 0.31 m³ | 0.32 m³ |
| Size |
1450mm, 1550mm, 1600mm, 1650mm, 1680mm, 1727mm |
|---|---|
| Teeth and Cutting Edges |
Bucket Only, Add 7 Chisel Teeth, Add 7 Tiger Teeth, Add B.O.E x1 - Front, Add B.O.E x3 - Front / Dozer / Rear |
| Lock Valve |
No Lock Valve Required, Add Lock Valve |
