NOTE: Due to high demand on the Digga 4 in 1 Bucket please call us on 0459 WAREHOUSE (that's 0459927346) prior to placing your order.

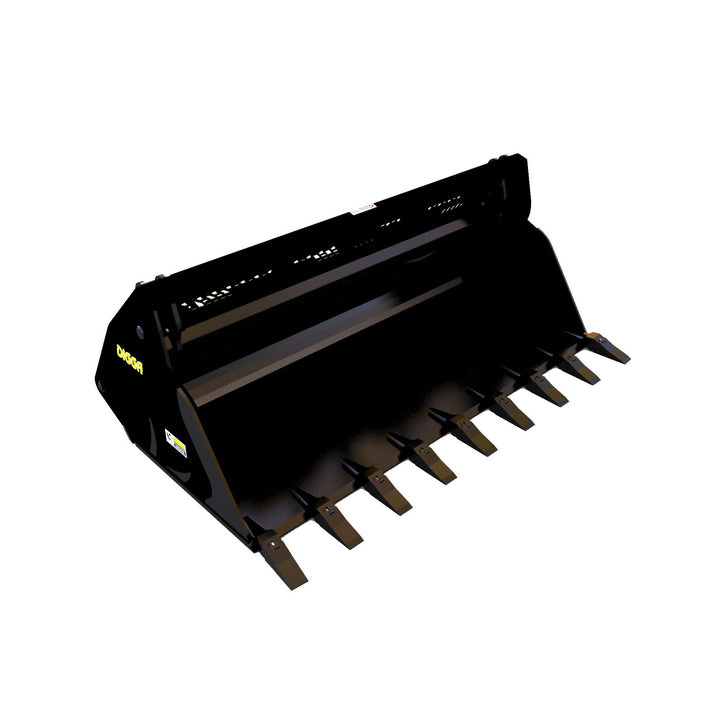

Digga 4 in 1 Heavy Duty Bucket
Machine Suitability: Large Skid Steer Loaders
Special Heavy Duty Range from 1800mm - 2200mm
Digga’s Heavy Duty 4 in 1 Bucket is designed for large skid steer loaders with increased power and break out force. Optional Teeth and Cutting Edges.
Price Inclusions:
Bucket, Lock Valve, Hoses and Couplers
NB: These products are custom made to order. Please check for current build and delivery times for each product on this page.
Options:
Bucket Only
Add 1x B.O.E (Cutting Edge) - Front
Add 3x B.O.E (Cutting Edges) - Front, Dozer and Rear
Add 9 Teeth Set for 1800mm - 2040mm (includes Adpaters and Pins)
Add 11 Teeth Set for 2130mm - 2200mm (includes Adpaters and Pins)
*Teeth and Cutting Edges must be purchaced at time of order. These can not be retro-fitted.

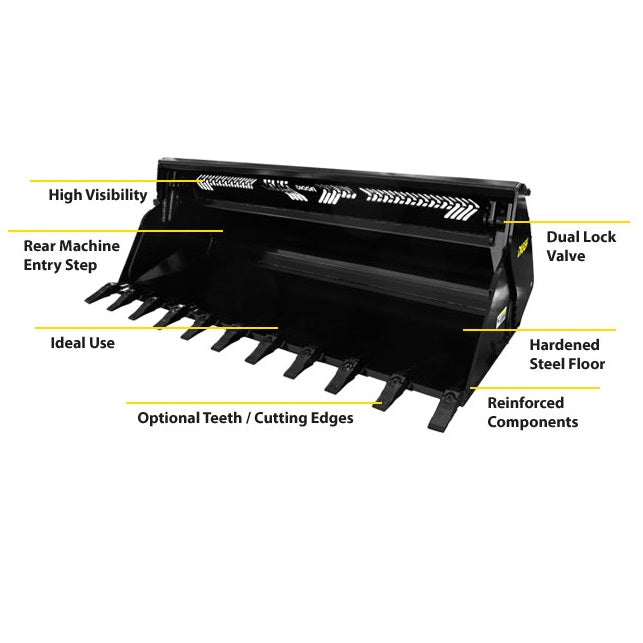

Features:
Reinforced pick-up, side plates, and grille
High visibility of front edge
Dual lock valve
Step for machine ease of entry
20 mm hardened steel floor
Optional teeth and cutting edges
|
HEAVY DUTY RANGE |
1800 MM |
1880 MM |
2000 MM |
2040 MM |
2130 MM |
2200 MM |
|
Depth (Bucket Closed) |
944mm |
944mm |
944mm |
944mm |
944mm |
944mm |
|
Bucket Cutting Width |
1800mm |
1880mm |
2000mm |
2040mm |
2130mm |
2200mm |
|
Height |
712mm |
712mm |
712mm |
712mm |
71 mm |
712mm |
|
Weight |
541kg |
565kg |
587kg |
595kg |
600kg |
625kg |
|
Struck Volume |
0.33 m³ |
0.35 m³ |
0.37 m³ |
0.38 m³ |
0.39 m³ |
0.41 m³ |
|
Heaped Volume |
0.43 m³ |
0.45 m³ |
0.48 m³ |
0.95 m³ |
0.52 m³ |
0.54 m³ |
| Size |
1800mm, 1880mm, 2000mm, 2040mm, 2130mm, 2200mm |
|---|---|
| G.E.T |
Bucket Only, Add 1x B.O.E - Front, Add 3x B.O.E - Front/Dozer/Rear, Add 9 Teeth Set for 1800mm - 2040mm, Add 11 Teeth Set for 2130mm - 2200mm |
