Digga Mini 4 in 1 Bucket - High Volume Range
NOTE: Due to high demand on the Digga 4 in 1 Bucket please call us on 0459 WAREHOUSE (that's 0459927346) prior to placing your order.

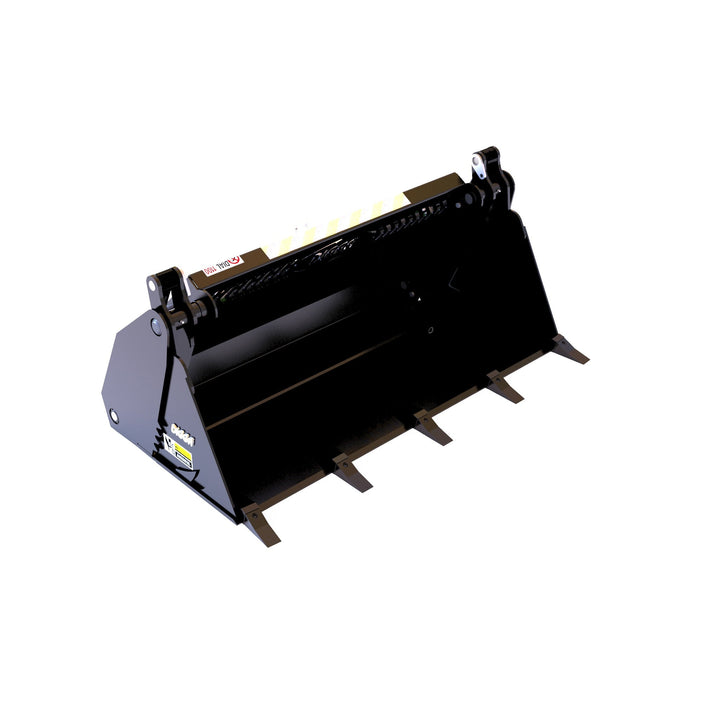

Digga Mini 4 in 1 Bucket (High Volume Range)
Machine Suitability: Mini Skid Steer Loaders
High Volume Range: 900mm – 1400mm
The MUST HAVE attachment from Digga.
Perfect for grading, scraping, grappling, dozing, material spreading and most construction work.
Price Inclusions:
HV Bucket, Hoses and Couplers
NB: This product is made to order. Please check for current build and delivery times.
Options:
5 CHISEL POINT TOOTH KIT TO SUIT BUCKETS 880MM TO 1130MM
5 TIGER TOOTH KIT TO SUIT BUCKETS 880MM TO 1130MM
6 CHISEL POINT TOOTH KIT TO SUIT BUCKETS 1225MM TO 1400MM
6 TIGER TOOTH KIT TO SUIT BUCKETS 1225MM TO 1400MM
B.O.E (Cutting Edge)
Lock Valve (Optional if required)
*Teeth and B.O.E must be ordered at time of purchace.

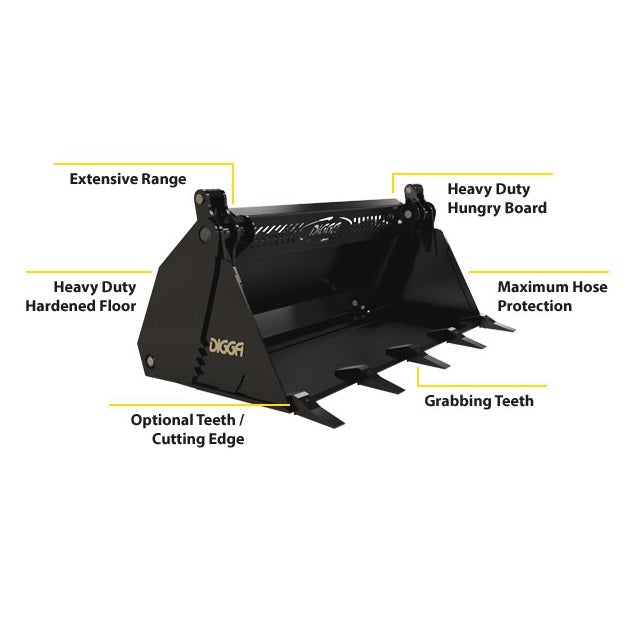

Features:
- Full range includes standard, heavy duty, and high volume
- Grabbing teeth profiled on both front/rear overlap for greater grip of logs or other debris
- Optional reversible bolt-on cutting edges for all 3 edges of the Mini 4 in 1 bucket
- Optional chisel and tiger teeth available with pin on design
- Heavy duty 12mm hardened steel floor
- Unique rear channel design provides maximum hose protection
- 1-piece heavy duty grille/hungry board that is fully welded
| HIGH VOLUME | 900 MM | 1070 MM | 1100 MM | 1130 MM |
|---|---|---|---|---|
| Depth (Bucket Closed) | 655 mm | 655 mm | 655 mm | 655 mm |
| Bucket Cutting Width | 900 mm | 1070 mm | 110 mm | 1130 mm |
| Height | 493 mm | 493 mm | 493 mm | 493 mm |
| Weight | 136 kg | 148 kg | 151 kg | 154 kg |
| Struck Volume | 0.10 m³ | 0.12 m³ | 0.13 m³ | 0.13 m³ |
| Heaped Volume | 0.13 m³ | 0.16 m³ | 0.16 m³ | 0.17 m³ |
| HIGH VOLUME (CONT) | 1225 MM | 1300 MM | 1400 MM |
|---|---|---|---|
| Depth (Bucket Closed) | 655 mm | 655 mm | 655 mm |
| Bucket Cutting Width | 1225 mm | 1300 mm | 1400 mm |
| Height | 493 mm | 493 mm | 493 mm |
| Weight | 165 kg | 175 kg | 190 kg |
| Struck Volume | 0.14 m³ | 0.15 m³ | 0.17 m³ |
| Heaped Volume | 0.18 m³ | 0.19 m³ | 0.21 m³ |
| Bucket Size |
900mm High Volume, 1070mm High Volume, 1100mm High Volume, 1130mm High Volume, 1225mm High Volume, 1300mm High Volume, 1400mm High Volume |
|---|---|
| Add Teeth or B.O.E |
Bucket Only, B.O.E (Cutting Edge Front), 5 Chisel Teeth To Suit 880mm - 1130mm, 5 Tiger Teeth To Suit 880mm - 1130mm, 6 Chisel Teeth To Suit 1225mm - 1400mm, 6 Tiger Teeth To Suit 1225mm - 1400mm |
| Lock Valve |
No Lock Valve Required, Add Lock Valve |
