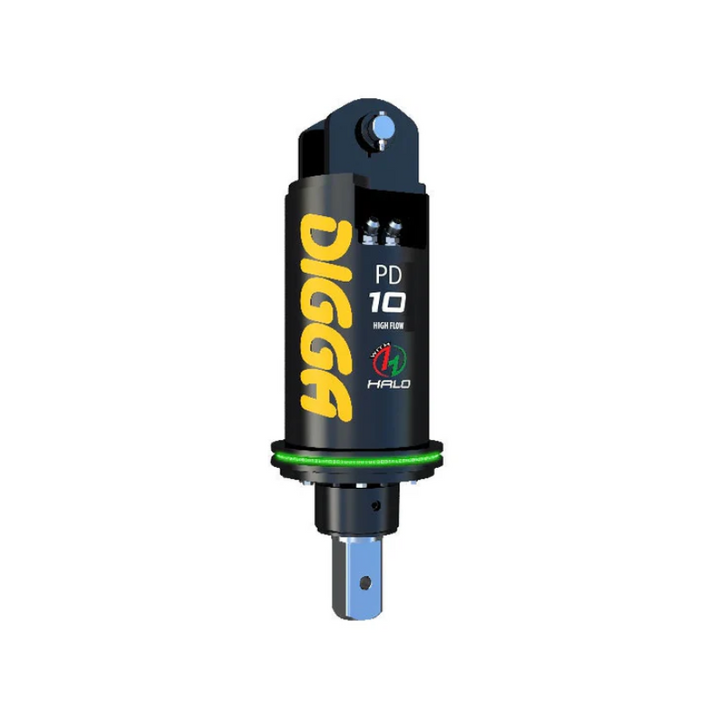

Digga PDH10HF Auger Drive with HALO for Excavators up to 10T
The Digga PDH10HF-5 Earth Drill Auger Drive with HALO Hole Alignment Monitor is suitable for mini excavators up to 10 tonnes and backhoes.
PROUDLY PRODUCED AND MANUFACTURED IN AUSTRALIA
Specifications:
Nominal Torque: 9690 Nm
Oil Flow Range: 100 - 200 Lpm
Oil Pressure Range: 60 - 240 Bar
Hub: 75mm Square

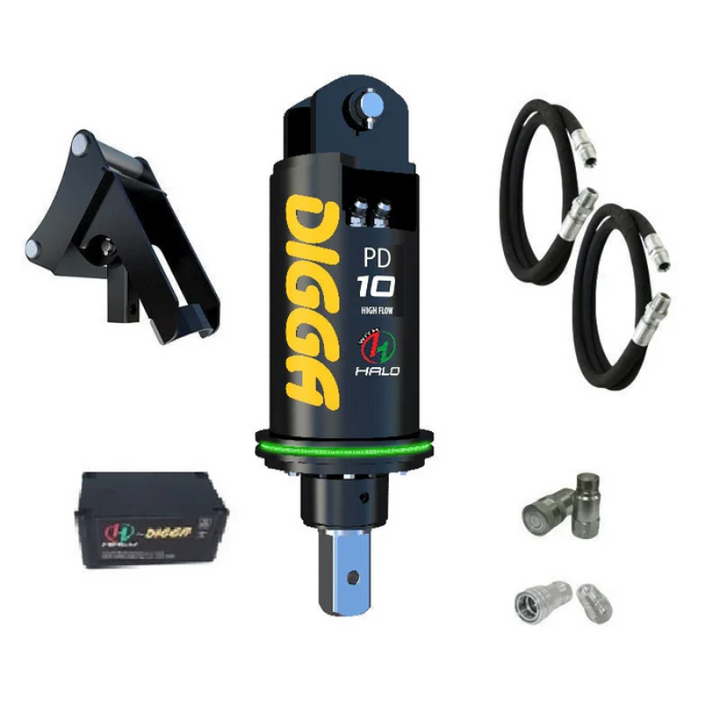

Package includes:
1x Digga PDH10HF-5 Auger Drive with HALO
1x Hoses and Hydraulic Couplers (poppet or flat faced)
PDH10HF with Halo Alignment options include:
Link Block with Halo DIY Cable Install Kit
Single Pin Hitch with Halo DIY Cable Install Kit
Double Pin Hitch and Link Block with Halo DIY Cable Install Kit
Link Block with Halo and Battery Pack
Single Pin Hitch with Halo and Battery Pack
Double Pin Hitch and Link Block with Halo and Battery Pack
When Choosing a Frame or Hitch Package, Please Provide the Make and Model of Your Machine in the "Special Instructions For Seller" Section Upon Checkout.
What is HALO
Highly visible indicator
Halo features recessed high accuracy inclination green and red LED indicators, which can be clearly seen in daylight. With Halo, there in no need for an in-cab display screen, and no need to take your eyes off the job to realign your auger.
No setup (battery option)
Halo can be connected to the in-cab cigarette lighter, or powered by a magnetised rechargeable battery which will last all day, and can be charged via USB or a 240V wall charger. The battery pack can be attached to the drive hood, frame, machine boom, or placed in-cab.
Set angle of inclination
The battery powered option features a 'zeroing' function which lets the operator set the angle of inclination with the press of a button. This feature is ideal for the installation of shade sails.
Technology
HALO utilises a microprocessor and 6 sensors to provide accurate readings to +/- 0.25 degrees - Even under heavy vibration. Effectively eliminating the need for a spotter with a spirit level. The dust/water proof LED ring is also recessed into the hood to protect it from knocks.
Durable Australian quality
HALO is proudly made in Australia, and has undergone 4 years of development & testing to ensure the unit works faultlessly, and is capable of enduring the rigors of our industry.
Pick up available from Brisbane, Gold Coast, Sydney or Melbourne
Freight available Australia wide.
PDH10HF Hitch Options |
Digga PDH10HF, Hoses and Couplers, Digga PDH10HF, Hoses , Couplers and Cable Kit, Digga PDH10HF, Hoses, Couplers, Link Block and Cable Kit, Digga PDH10HF, Hoses, Couplers and Double Pin Hitch, Digga PDH10HF, Hoses, Couplers and Cradle Hitch, Digga PDH10HF, Hoses, Couplers, Double Pin Hitch and Cable Kit, Digga PDH10HF, Hoses, Couplers, Cradle Hitch and Cable Kit, Digga PDH10HF, Hoses , Couplers and Battery Pack, Digga PDH10HF, Hoses, Couplers, Link Block and Battery Pack, Digga PDH10HF, Hoses, Couplers, Double Pin Hitch and Battery Pack, Digga PDH10HF, Hoses, Couplers, Cradle Hitch and Battery Pack |
---|
