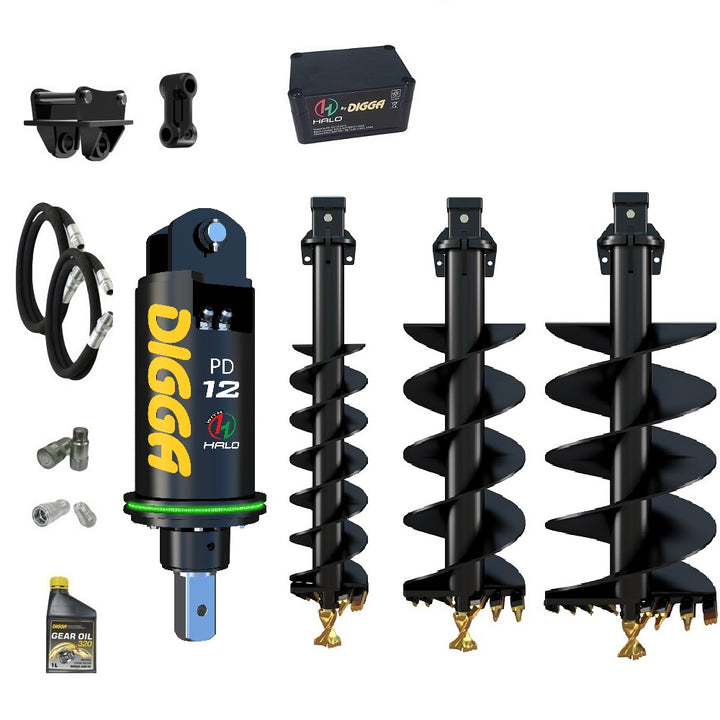

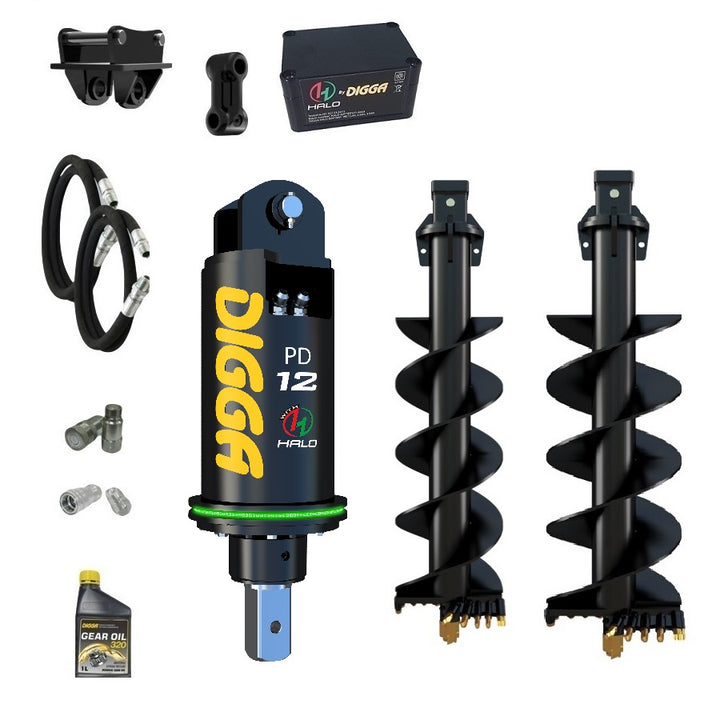

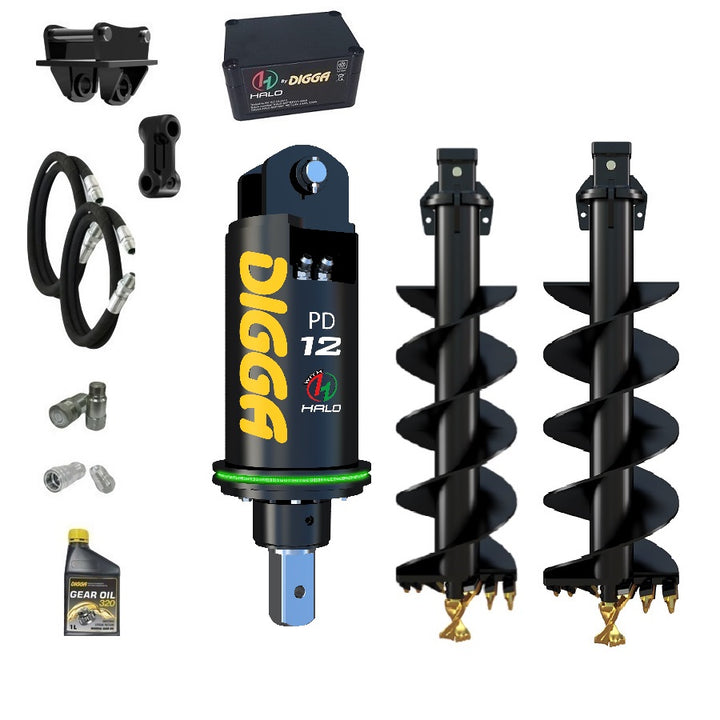

Digga PDH12 HALO auger drive combo package excavator up to 12T

Purchase any Digga PDH12 Earth Drill Combo Package and get *FREE FREIGHT!

The Digga PDH12 Earth Drill with HALO has a 75mm square hub and is suitable for mini excavators up to 12 tonnes and backhoes.

Digga's PDH12 HALO kit comes with a battery pack as standard, if you'd prefer the cable kit, please select it from the accessories below.

Double pin hitch to suit all makes of excavators.

**Other Hitches are available on request.

Please Provide the Make/Model, Pin Size and Centres of Your Machine in the "Special Instructions For Seller" Section Upon Checkout.

PROUDLY PRODUCED AND MANUFACTURED IN AUSTRALIA

Choose your package from the Drop Down Menu above

Choosing your teeth and pilots:

Multi Facet Tungsten (MFT): Best all rounder; suitable for hard ground conditions including clay.
Earth/Rock Combo (RC): suitable for harder ground conditions including fracturable rock, asphalt and concrete.
Dedicated Rock (DR): suitable for fracturable and non fracturable rock.

What is HALO

Highly visible indicator

Halo features recessed high accuracy inclination green and red LED indicators, which can be clearly seen in daylight. With Halo, there in no need for an in-cab display screen, and no need to take your eyes off the job to realign your auger.



No setup (battery option)

Halo can be connected to the in-cab cigarette lighter, or powered by a magnetised rechargeable battery which will last all day, and can be charged via USB or a 240V wall charger. The battery pack can be attached to the drive hood, frame, machine boom, or placed in-cab.



Set angle of inclination

The battery powered option features a 'zeroing' function which lets the operator set the angle of inclination with the press of a button. This feature is ideal for the installation of shade sails.



Technology

HALO utilises a microprocessor and 6 sensors to provide accurate readings to +/- 0.25 degrees - Even under heavy vibration. Effectively eliminating the need for a spotter with a spirit level. The dust/water proof LED ring is also recessed into the hood to protect it from knocks.



Durable Australian quality

HALO is proudly made in Australia, and has undergone 4 years of development & testing to ensure the unit works faultlessly, and is capable of enduring the rigors of our industry.

Digga PDH12 Earth Drill Specifications:

Torque Range: 4125 - 6040 Nm
Oil Flow Range: 70 - 115 Lpm
Oil Pressure Range: 60 - 240 Bar
Hub: 75mm Square

Auger Specifications:

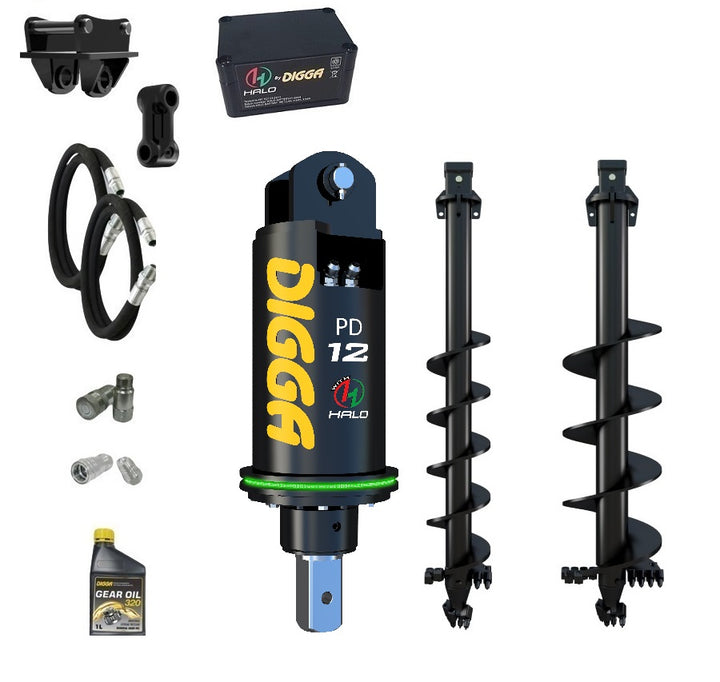

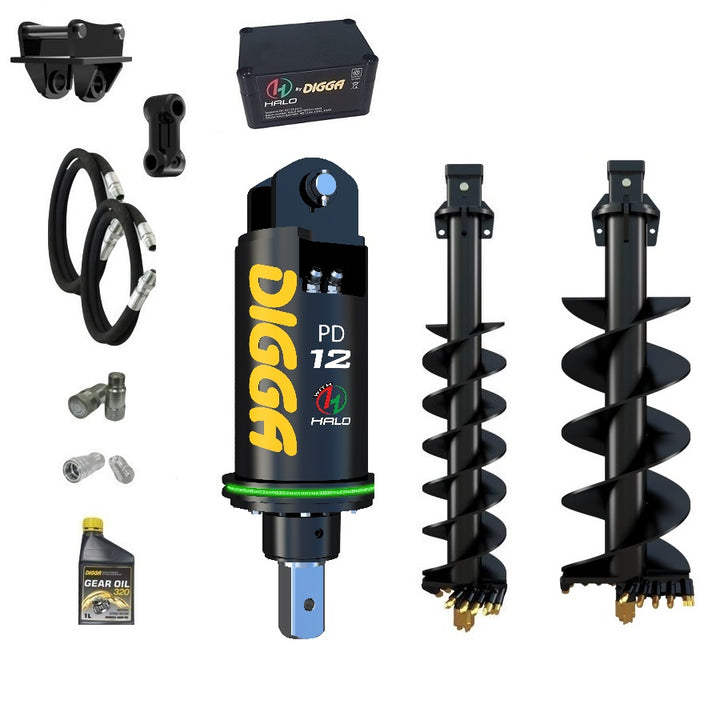

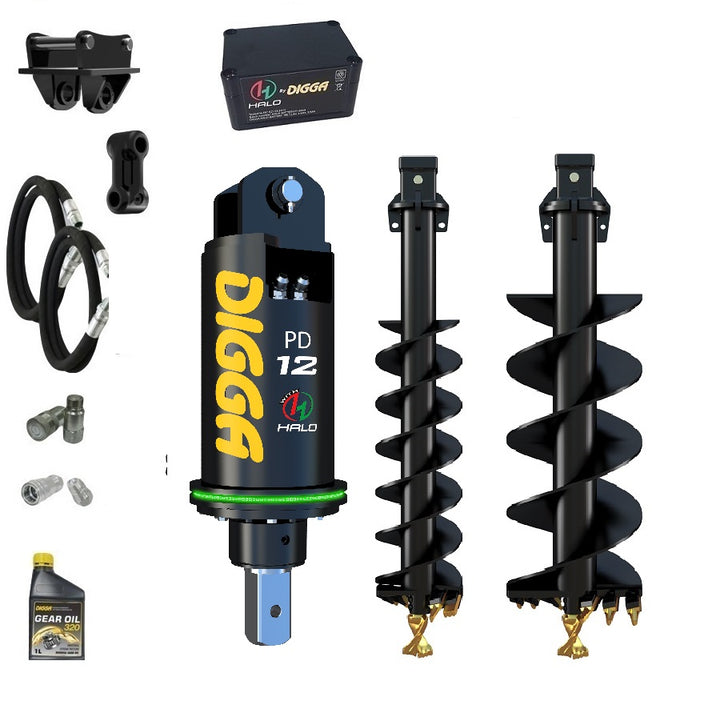

Digga 300mm A8/RC8/DR8 Auger:
Overall Length 1500mm
75mm Square Hub
Padloc Lock-in Teeth

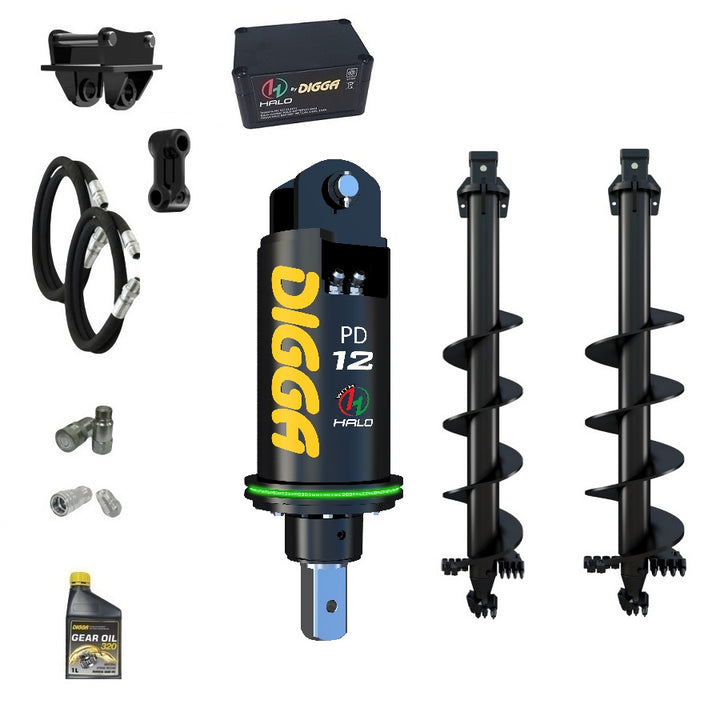

Digga 350mm A8/RC8/DR8 Auger:
Overall Length 1500mm
75mm Square Hub
Padloc Lock-in Teeth

Digga 450mm A8/RC8/DR8 Auger:
Overall Length 1500mm
75mm Square Hub
Padloc Lock-in Teeth

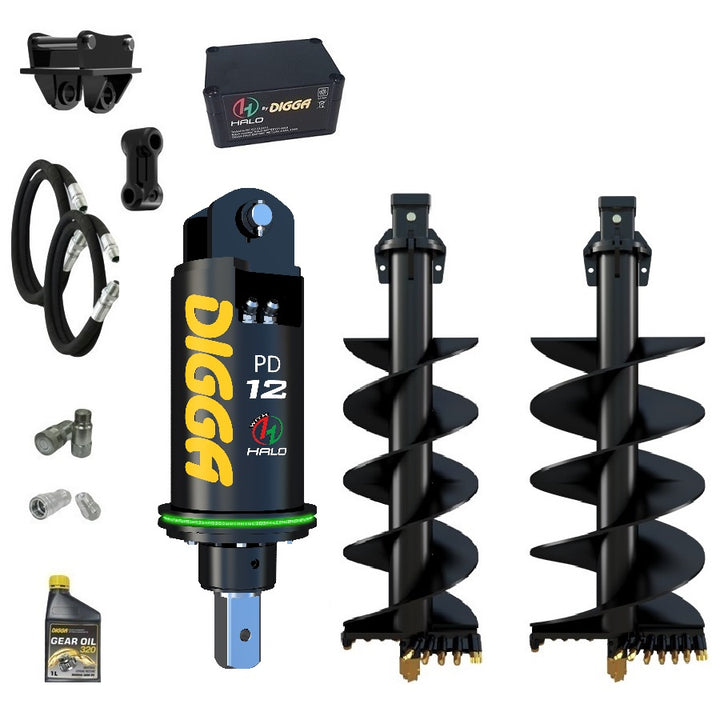

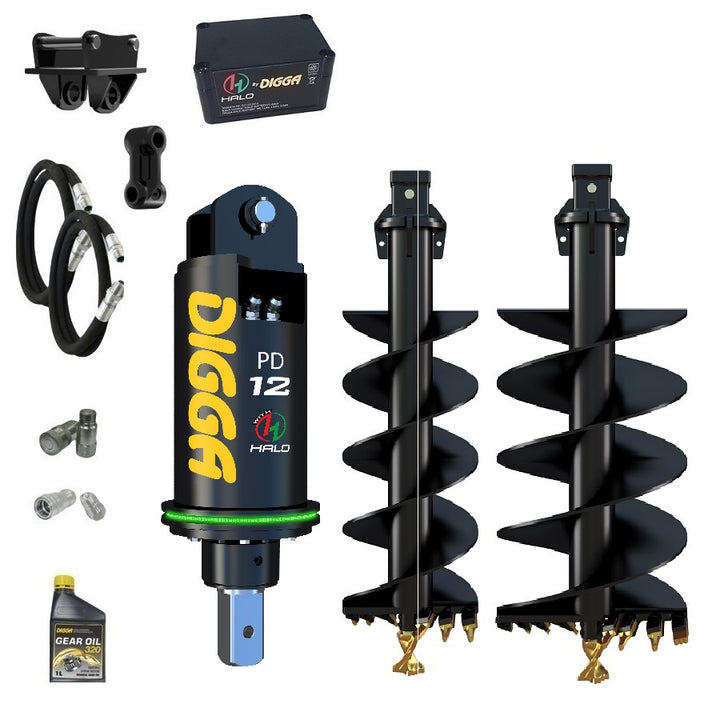

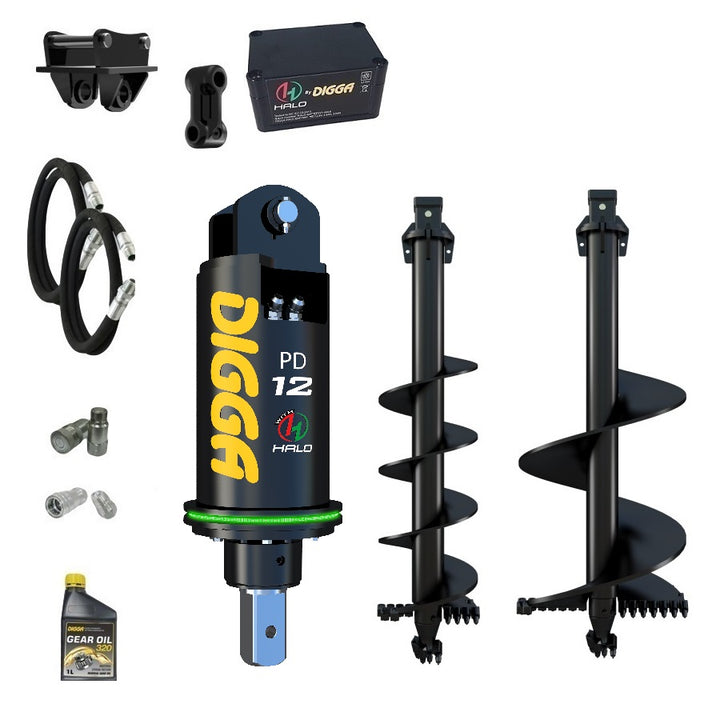

Digga 600mm A8/RC8/DR8 Auger:
Overall Length 1500mm
75mm Square Hub
Padloc Lock-in Teeth

Pick up available from Brisbane, Gold Coast, Sydney or Melbourne.

We ship earthmoving attachments Australia wide. *FREE FREIGHT Terms can be found here.
