Digga PDH3 auger drive with HALO for skid steer loaders up to 75Hp

The Digga PDH3 Earth Drill with HALO Hole Alignment Monitor are suitable for skid steer loaders up to 75Hp

Perfect for:

All makes and models of skid steer loaders up to 75Hp with

• Multi Fit/Universal Frames
• Toyota Huski Frames

Note:

• Multi Fit frames are available as Fixed Centre Mount or Slide Frames
• Huski horizontal locking pin frames are only available as a Slide Frame

PROUDLY PRODUCED AND MANUFACTURED IN AUSTRALIA

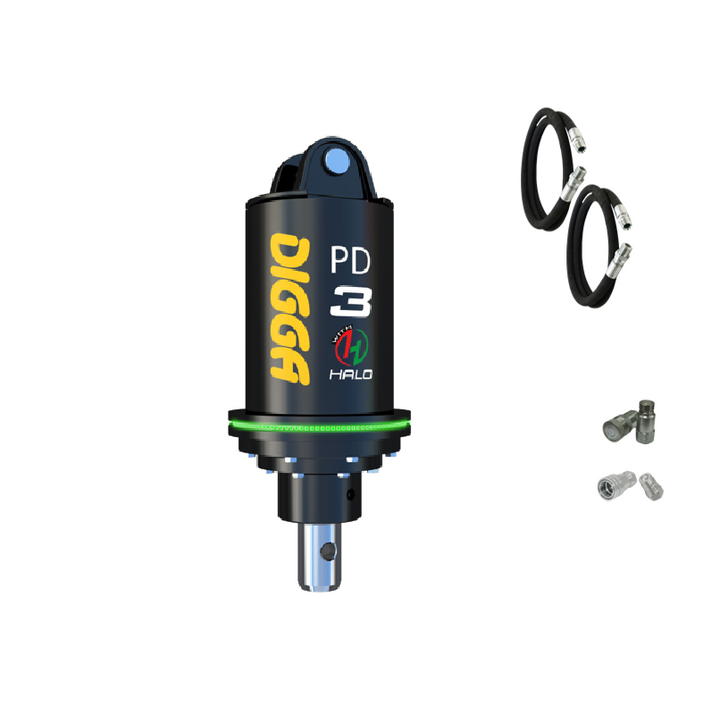

Package includes:

1x Digga PDH3 Auger Drive
1x Hoses and Hydraulic Couplers (poppet or flat faced)

PDH3 with Halo Alignment options include:

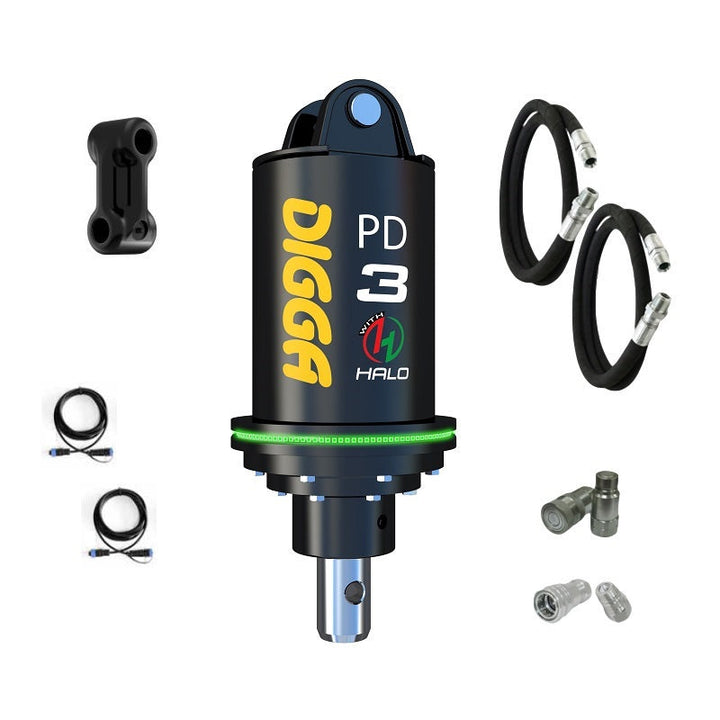

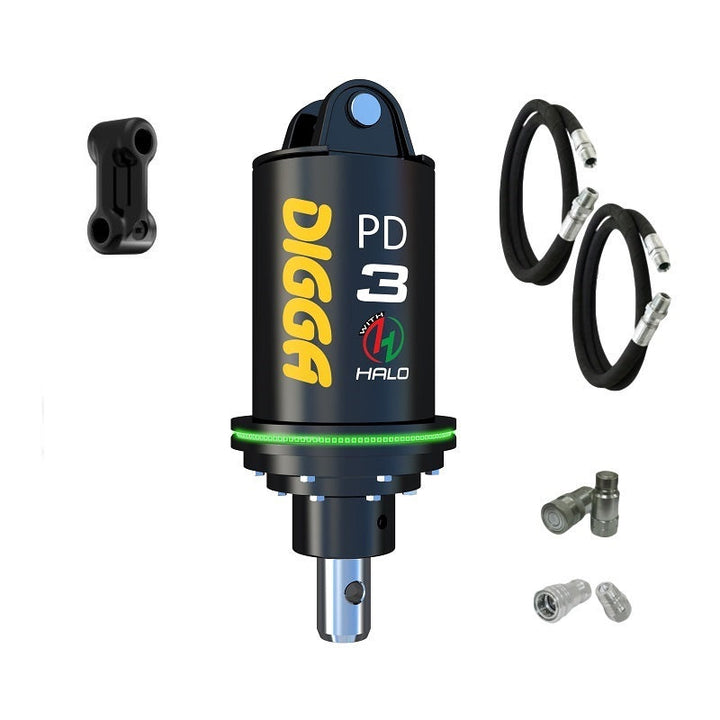

• Link Block with Halo DIY Cable Install Kit

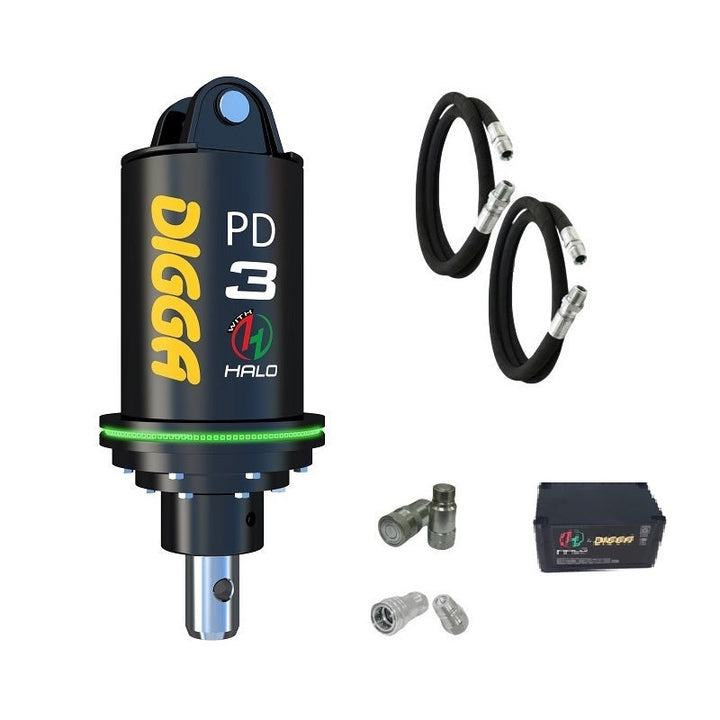

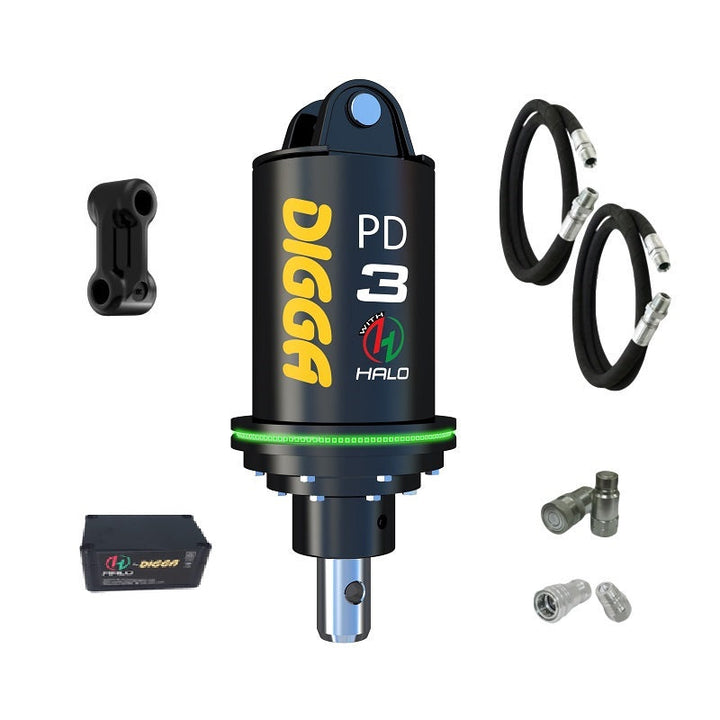

• Link Block with Halo and Battery Pack
• Skid steer loader fixed centre mount frame with Halo DIY Cable Install Kit
• Skid steer loader fixed centre mount frame and Battery Pack

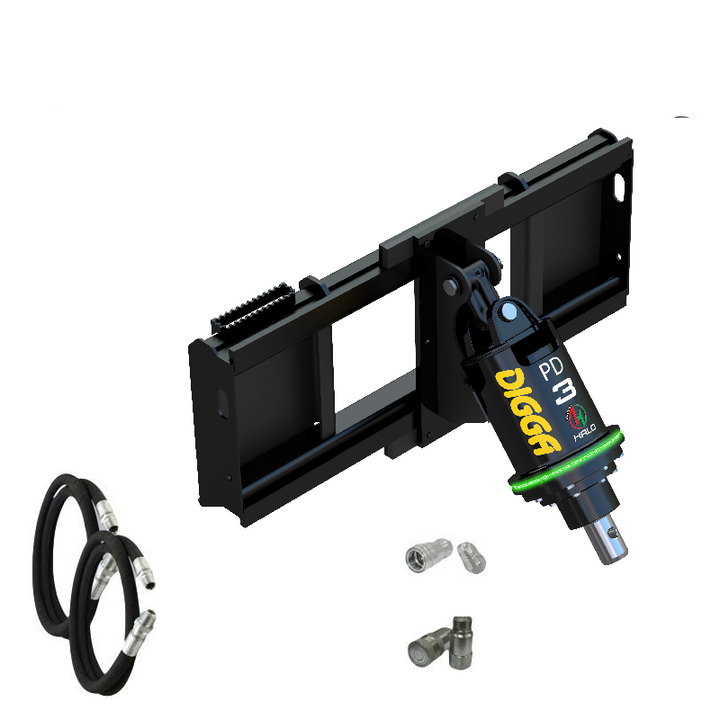

• Skid steer loader slide frame with Halo DIY Cable Install Kit
• Skid steer loader slide frame and Battery Pack

Digga PDH3 Earth Drill Specifications:

Torque Range: 1188 - 3544 Nm
Oil Flow Range: 45 - 75 Lpm
Oil Pressure Range: 60 - 240 Bar
Hub: 65mm Round

What is HALO

Highly visible indicator

Halo features recessed high accuracy inclination green and red LED indicators, which can be clearly seen in daylight. With Halo, there in no need for an in-cab display screen, and no need to take your eyes off the job to realign your auger.



No setup (battery option)

Halo can be connected to the in-cab cigarette lighter, or powered by a magnetised rechargeable battery which will last all day, and can be charged via USB or a 240V wall charger. The battery pack can be attached to the drive hood, frame, machine boom, or placed in-cab.



Set angle of inclination

The battery powered option features a 'zeroing' function which lets the operator set the angle of inclination with the press of a button. This feature is ideal for the installation of shade sails.



Technology

HALO utilises a microprocessor and 6 sensors to provide accurate readings to +/- 0.25 degrees - Even under heavy vibration. Effectively eliminating the need for a spotter with a spirit level. The dust/water proof LED ring is also recessed into the hood to protect it from knocks.



Durable Australian quality

HALO is proudly made in Australia, and has undergone 4 years of development & testing to ensure the unit works faultlessly, and is capable of enduring the rigors of our industry.
