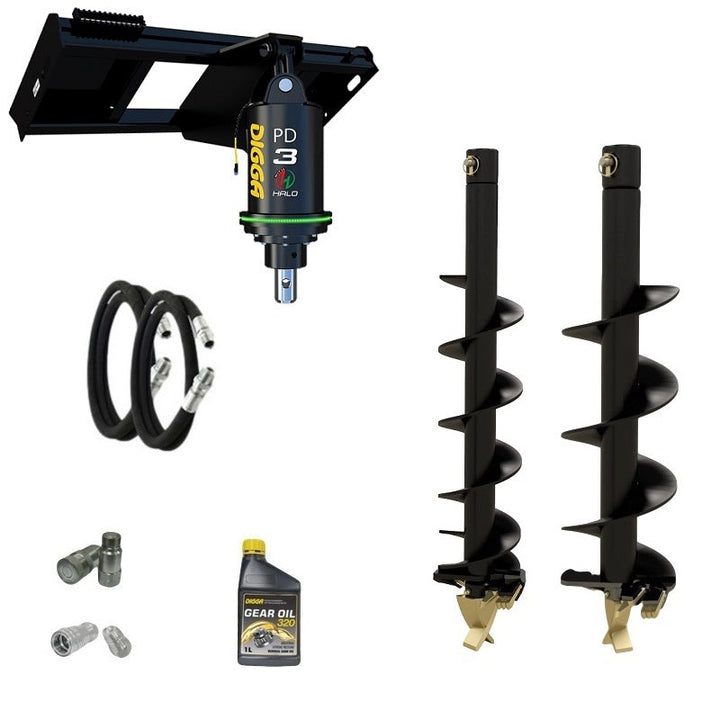

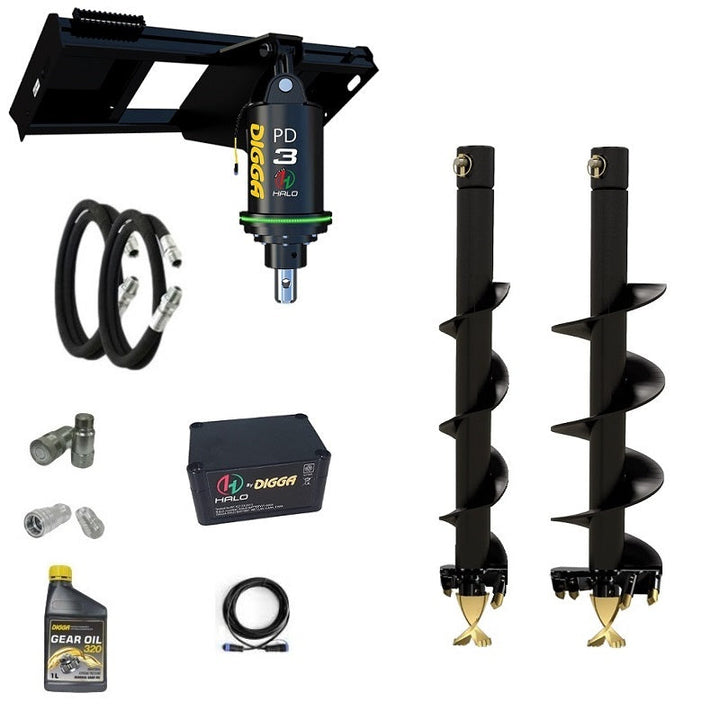

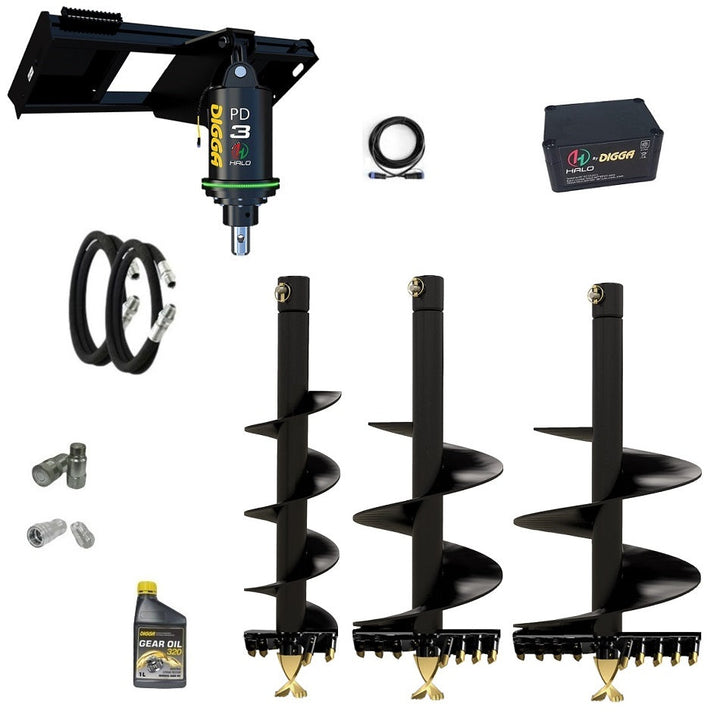

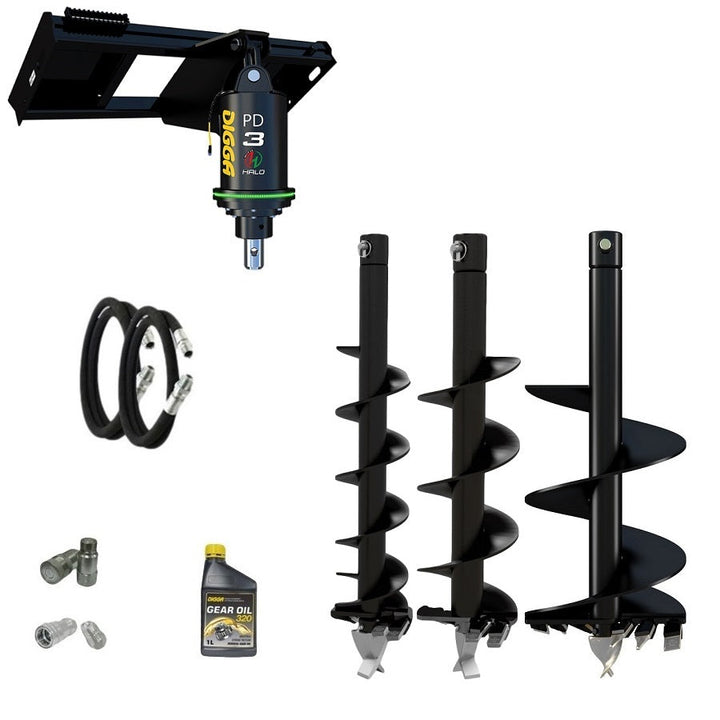

Digga PDH3 HALO Auger Drive Combo Fixed Frame Package Skid Steers up to 75Hp

Purchase any Digga PDH3 Earth Drill Combo Package and get *FREE FREIGHT!

The Digga PDH3 HALO Earth Drill is suitable for Skid Steer Loaders with flow rates between 45 - 75Lpm.

The Auger Drive unit comes as a Bolt On Slide Shift that allows you to adjust the Drive to your preferred operating position.

Standard** Frames are available to suit:

• Multifit Fixed Frame

Please Provide the Make and Model of Your Machine in the "Special Instructions For Seller" Section Upon Checkout.

**More Frames are available on request but may incur a surcharge. Please contact us for more details if your machine isn't listed above.

PROUDLY PRODUCED AND MANUFACTURED IN AUSTRALIA

Choosing your teeth and pilots:

Multi Facet Tungsten (MFT): Best all rounder; suitable for hard ground conditions including clay.
Earth/Rock Combo (RC): suitable for harder ground conditions including fracturable rock, asphalt and concrete.
Dedicated Rock (DR): suitable for fracturable and non fracturable rock.

Choose your package from the Drop Down Menu above

What is HALO

Highly visible indicator

Halo features recessed high accuracy inclination green and red LED indicators, which can be clearly seen in daylight. With Halo, there in no need for an in-cab display screen, and no need to take your eyes off the job to realign your auger.



No setup (battery option)

Halo can be connected to the in-cab cigarette lighter, or powered by a magnetised rechargeable battery which will last all day, and can be charged via USB or a 240V wall charger. The battery pack can be attached to the drive hood, frame, machine boom, or placed in-cab.



Set angle of inclination

The battery powered option features a 'zeroing' function which lets the operator set the angle of inclination with the press of a button. This feature is ideal for the installation of shade sails.



Technology

HALO utilises a microprocessor and 6 sensors to provide accurate readings to +/- 0.25 degrees - Even under heavy vibration. Effectively eliminating the need for a spotter with a spirit level. The dust/water proof LED ring is also recessed into the hood to protect it from knocks.



Durable Australian quality

HALO is proudly made in Australia, and has undergone 4 years of development & testing to ensure the unit works faultlessly, and is capable of enduring the rigors of our industry.



Digga PDH3 Earth Drill Specifications:

Torque Range: 1188 - 3544 Nm
Oil Flow Range: 45 - 75 Lpm
Oil Pressure Range: 60 - 240 Bar
Hub: 65mm Round

Auger Specifications:

Digga 100mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 150mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 200mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 250mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 300mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 350mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 450mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 600mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Pick up available from Brisbane, Gold Coast, Sydney or Melbourne

We ship earthmoving attachments Australia wide. *FREE FREIGHT Terms can be found here.
