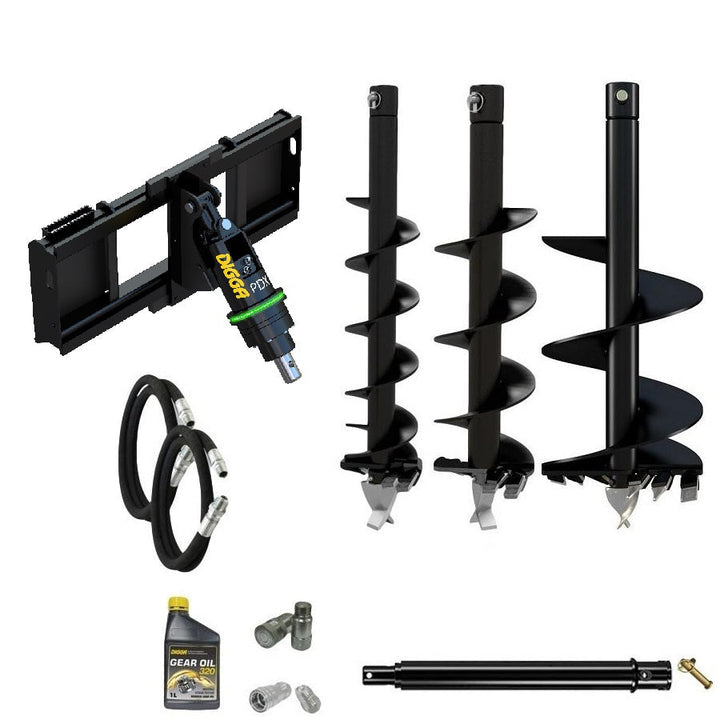

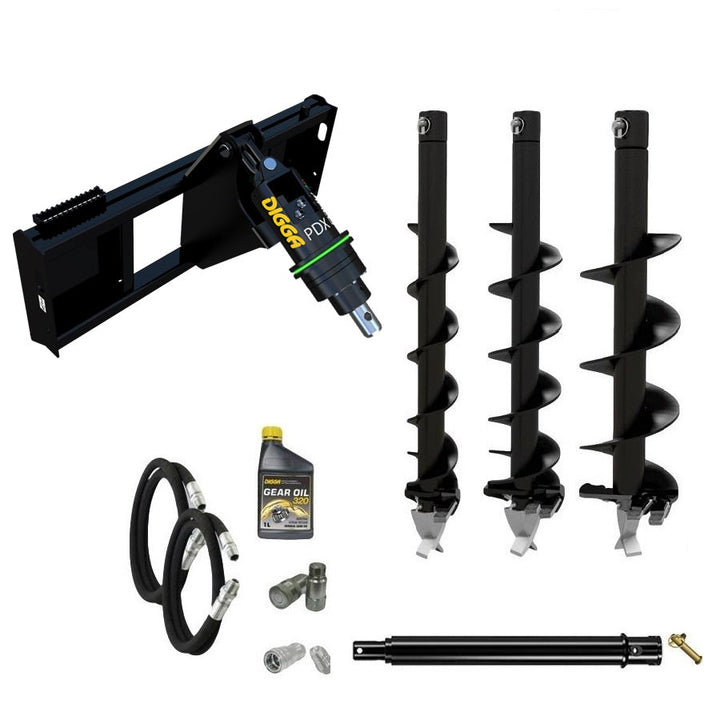

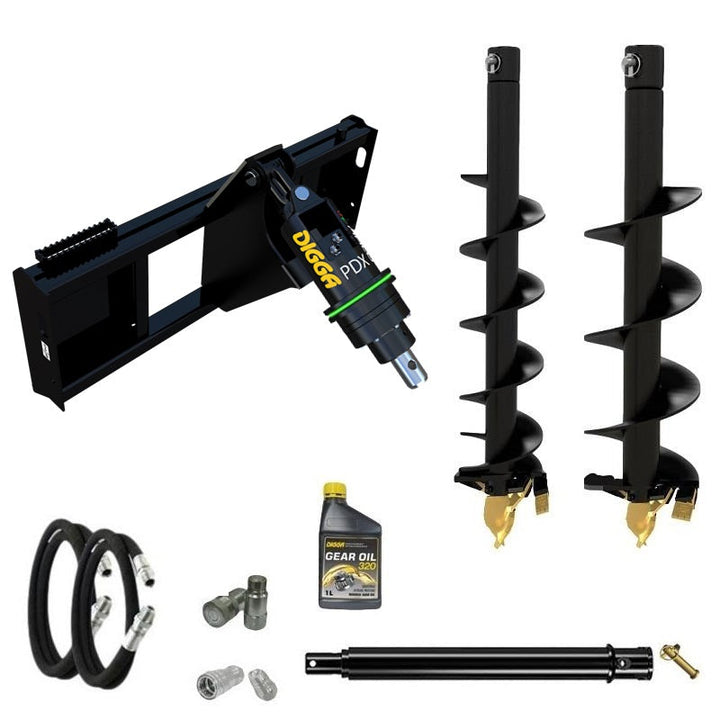

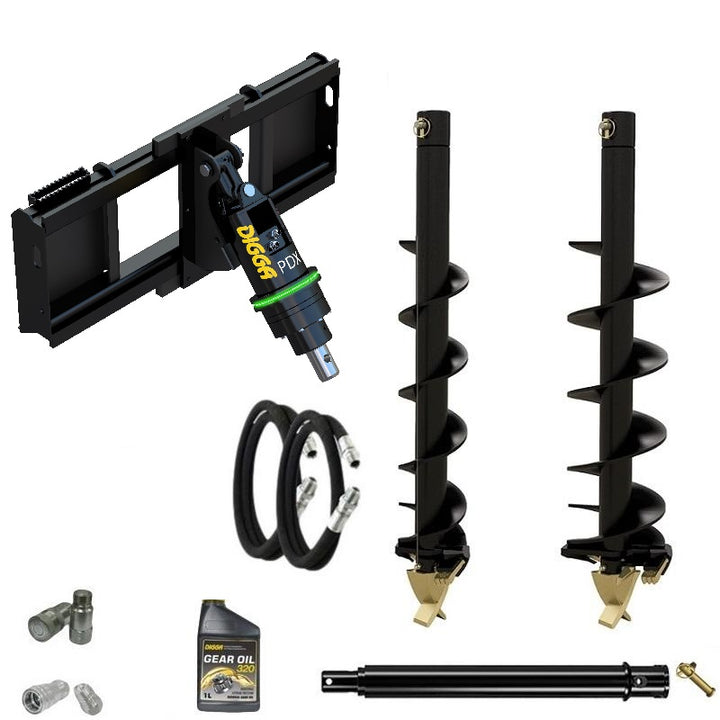

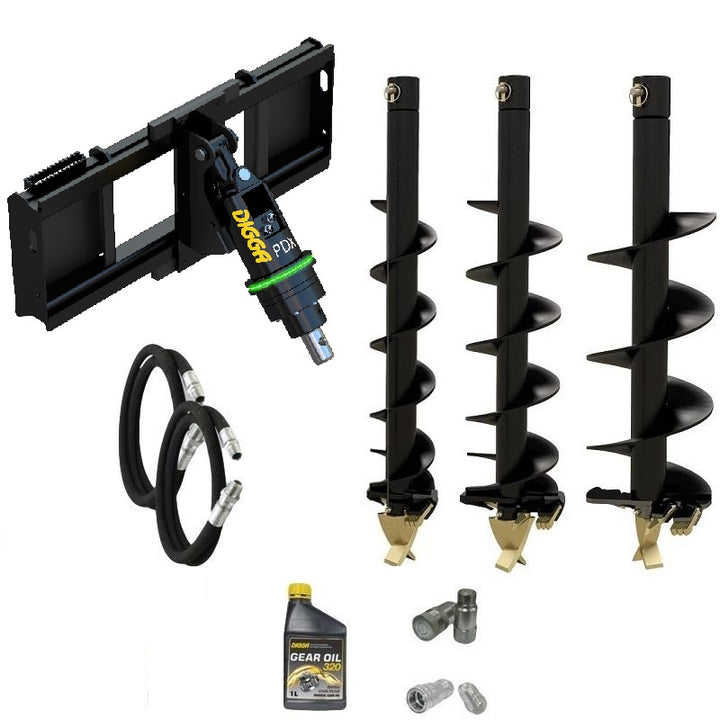

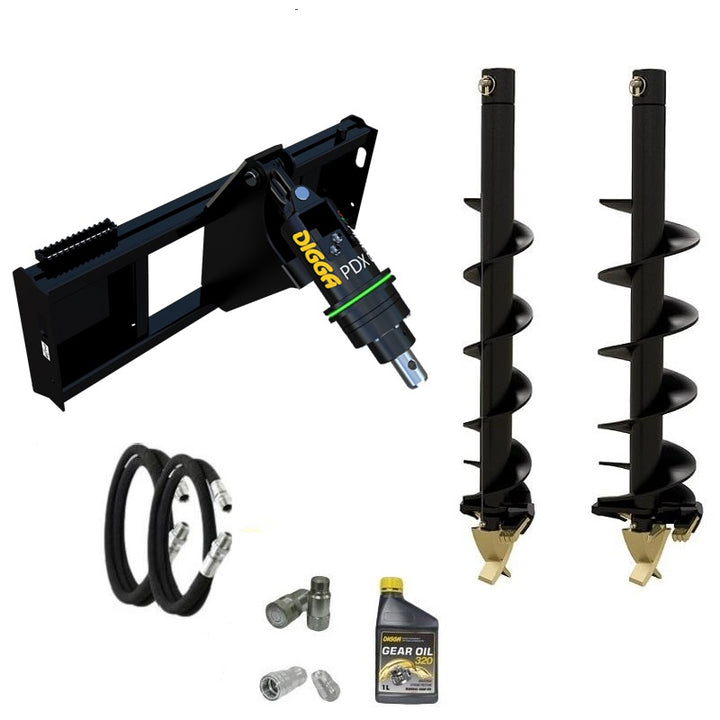

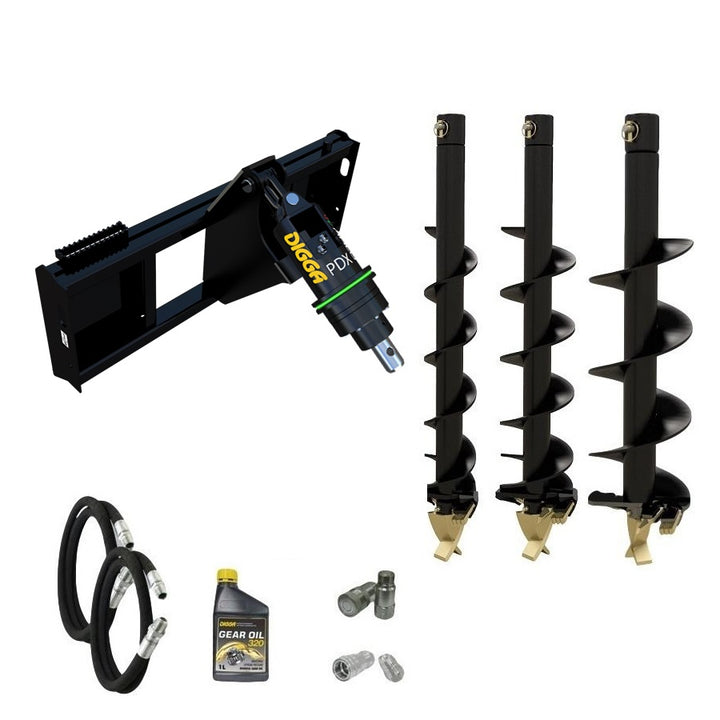

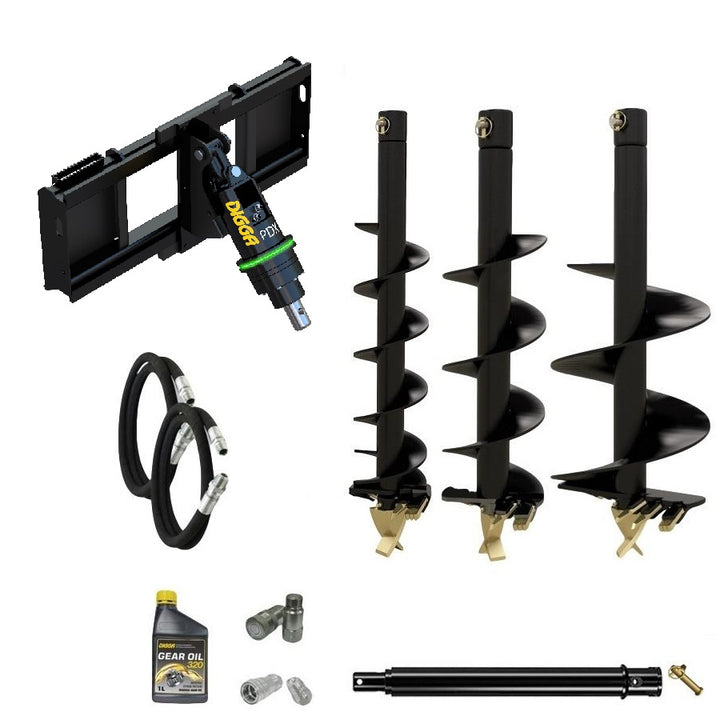

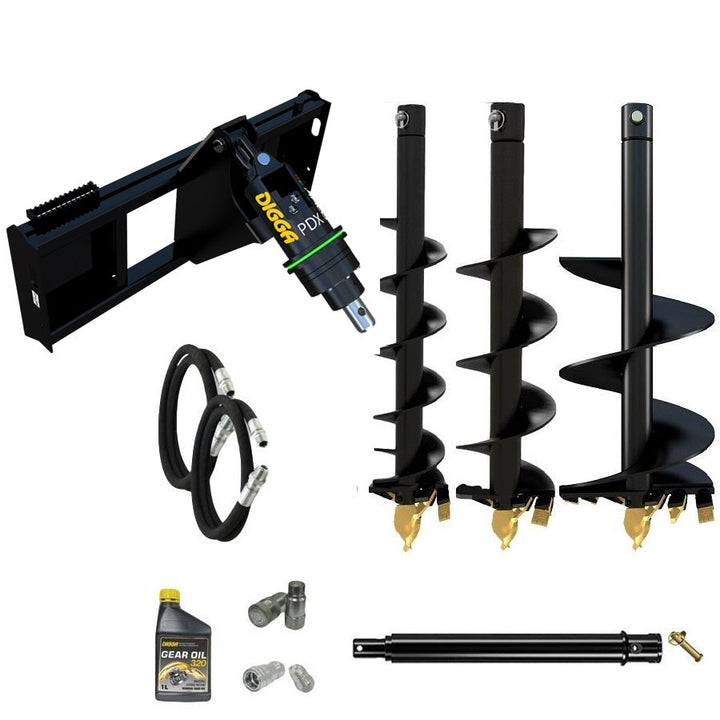

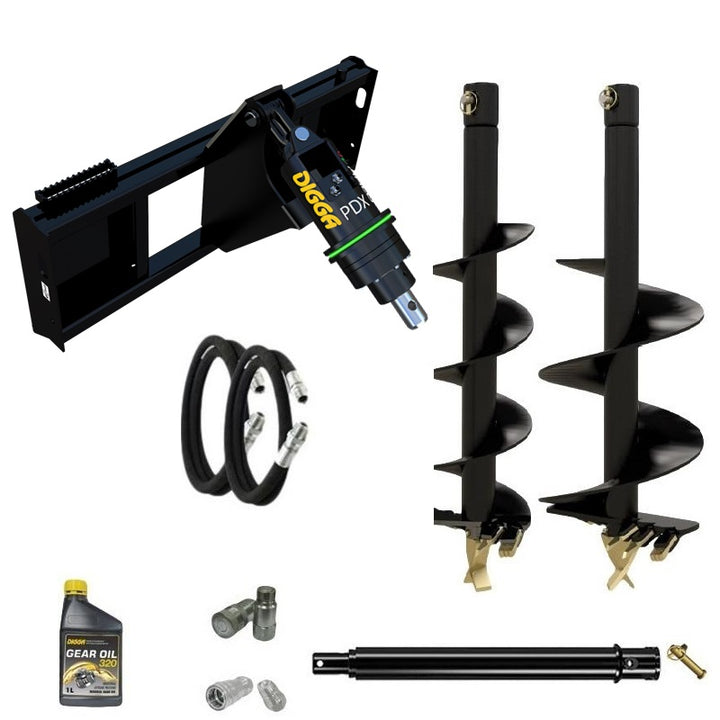

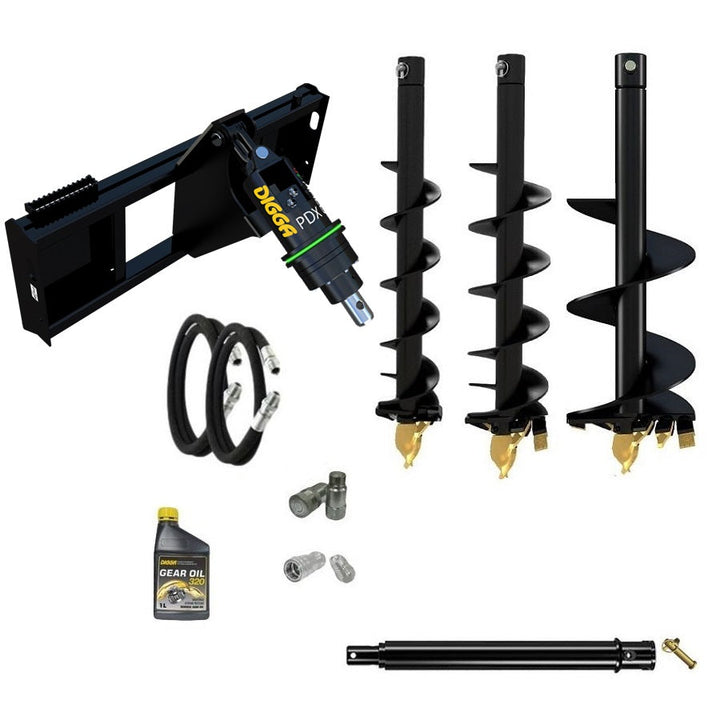

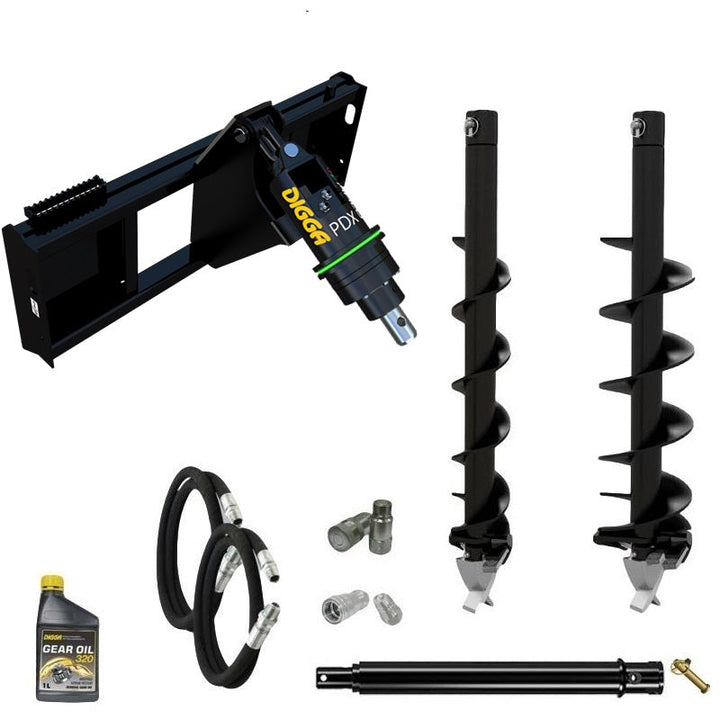

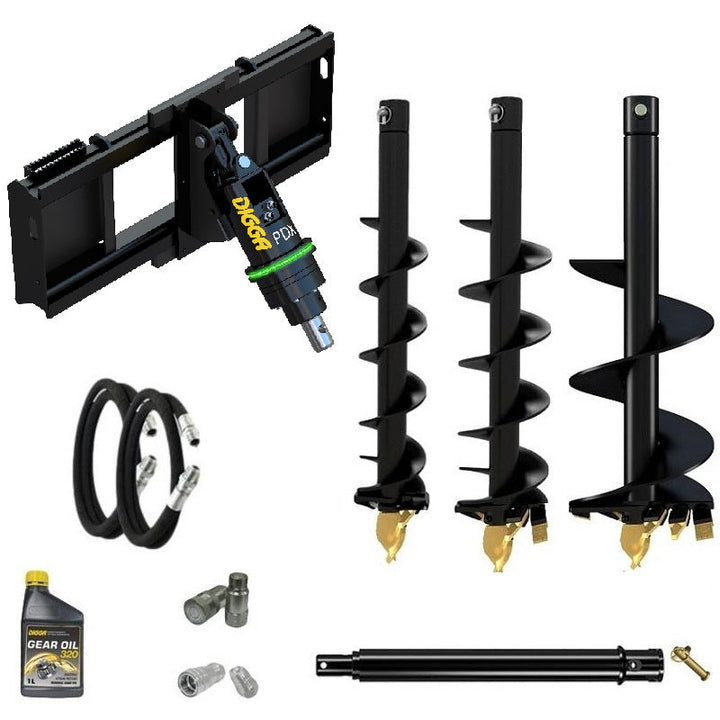

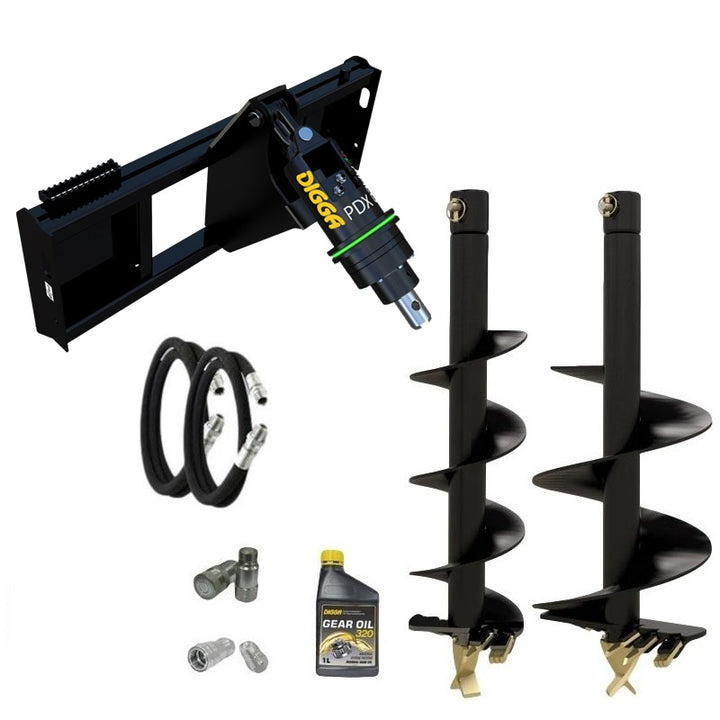

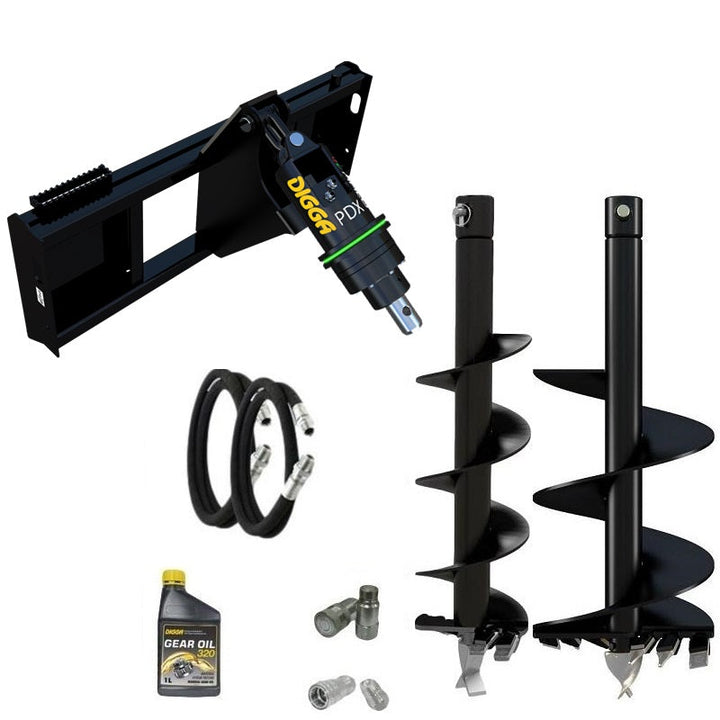

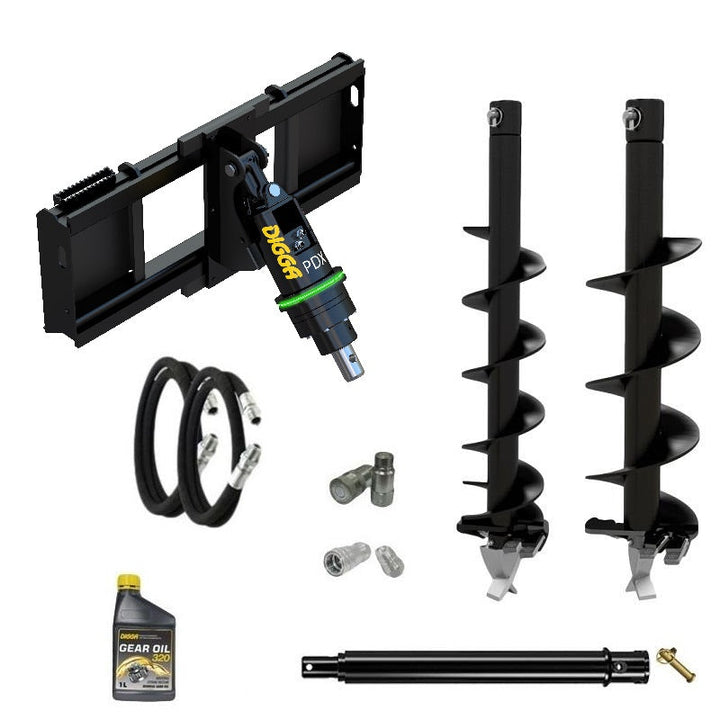

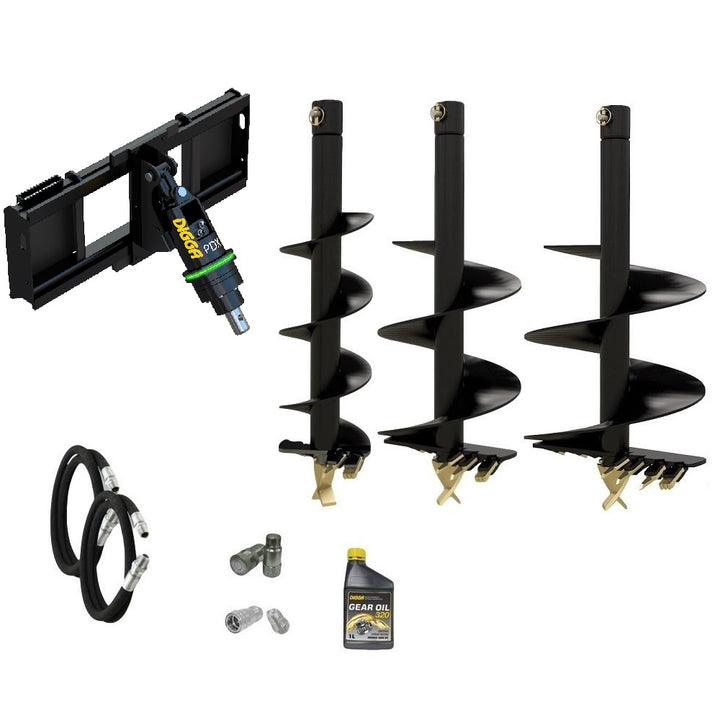

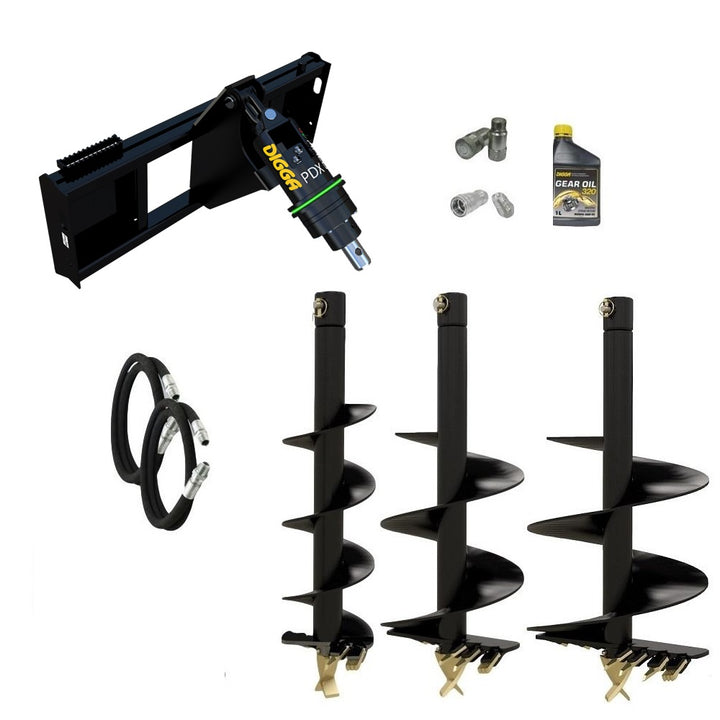

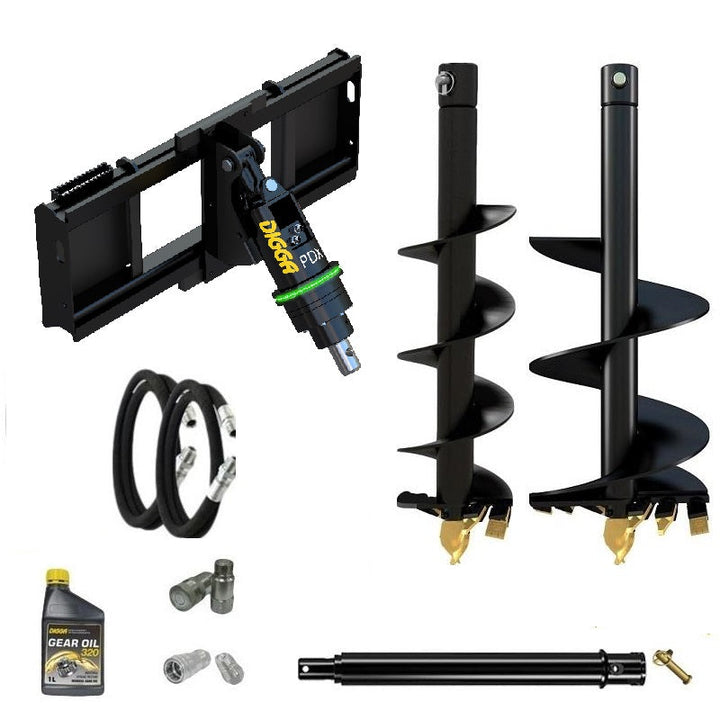

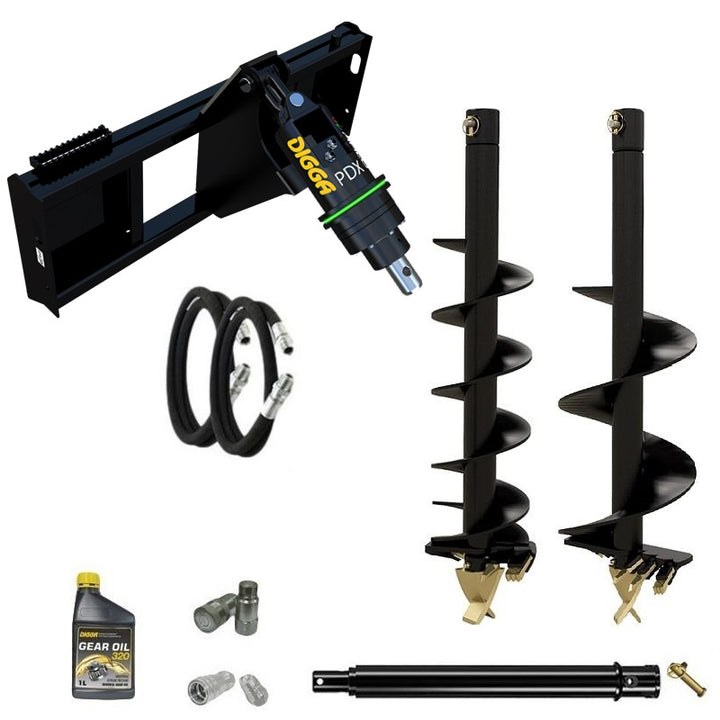

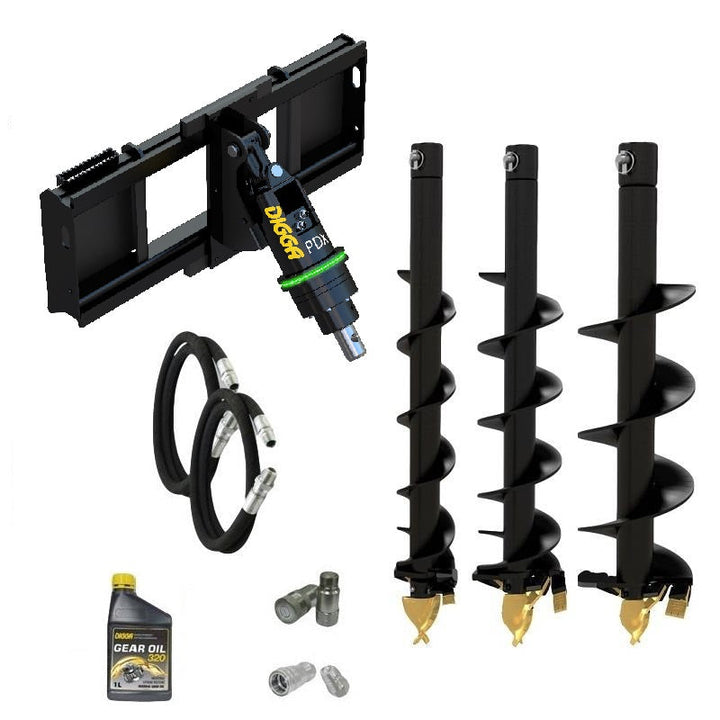

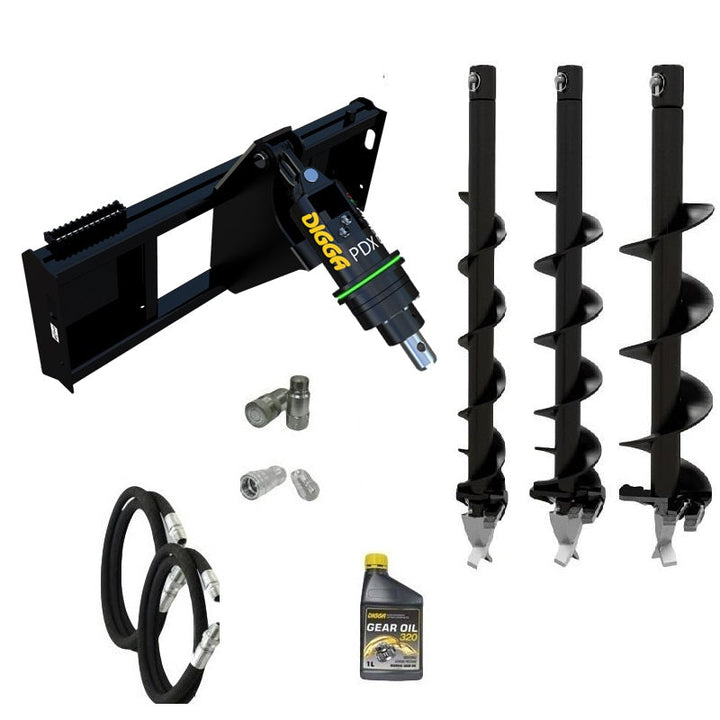

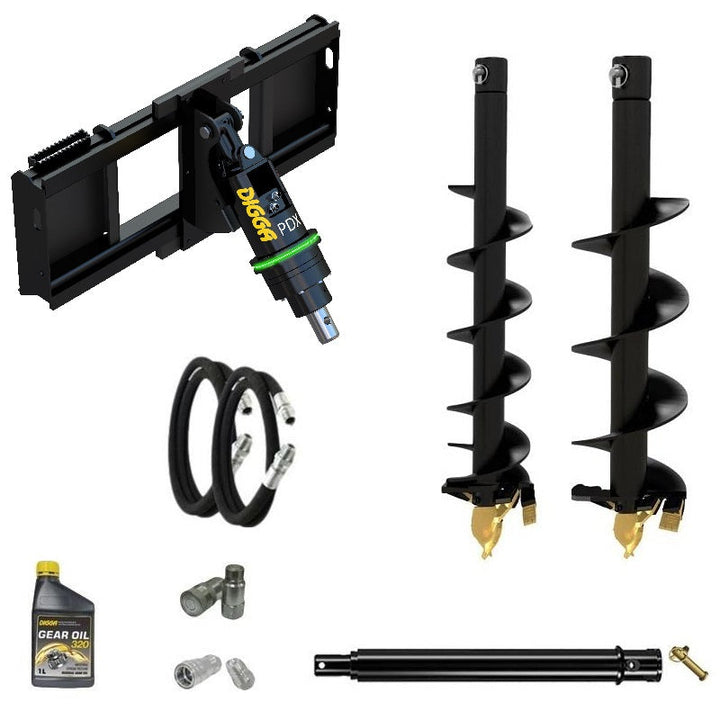

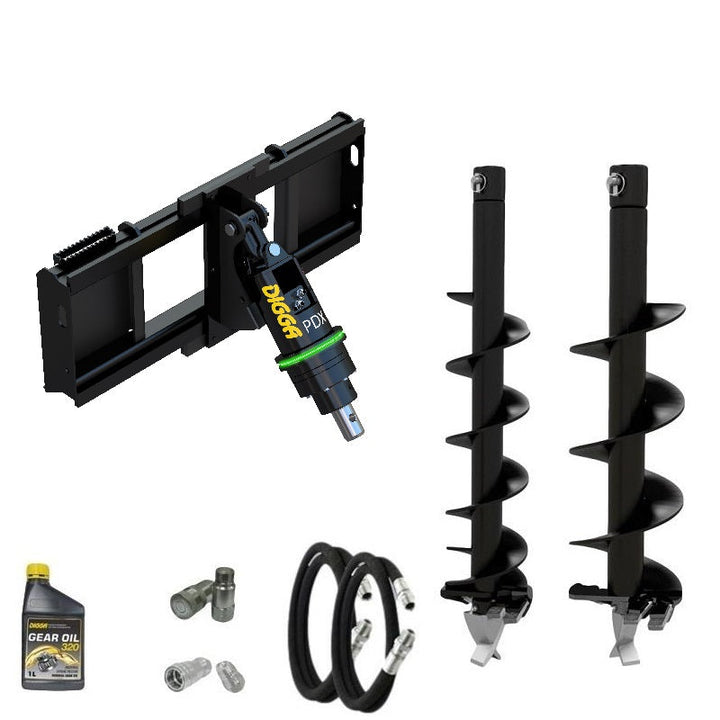

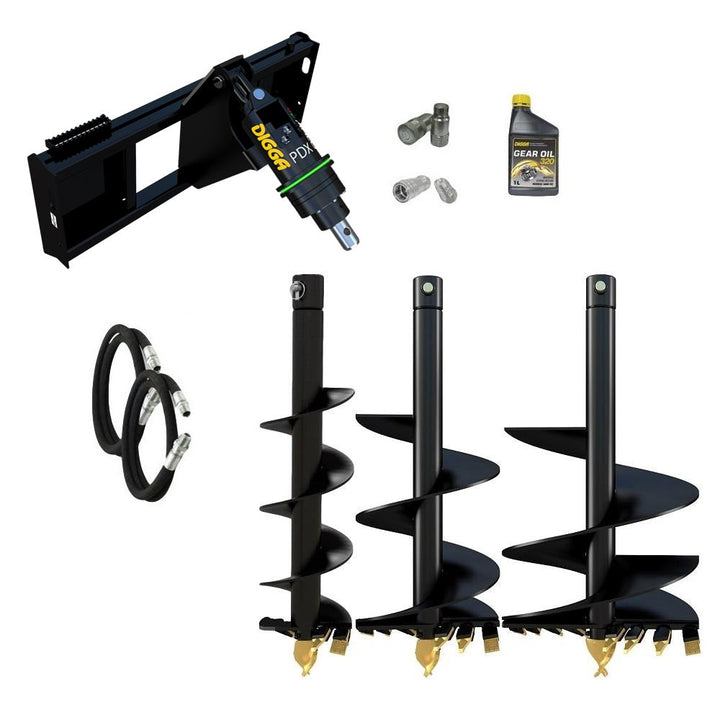

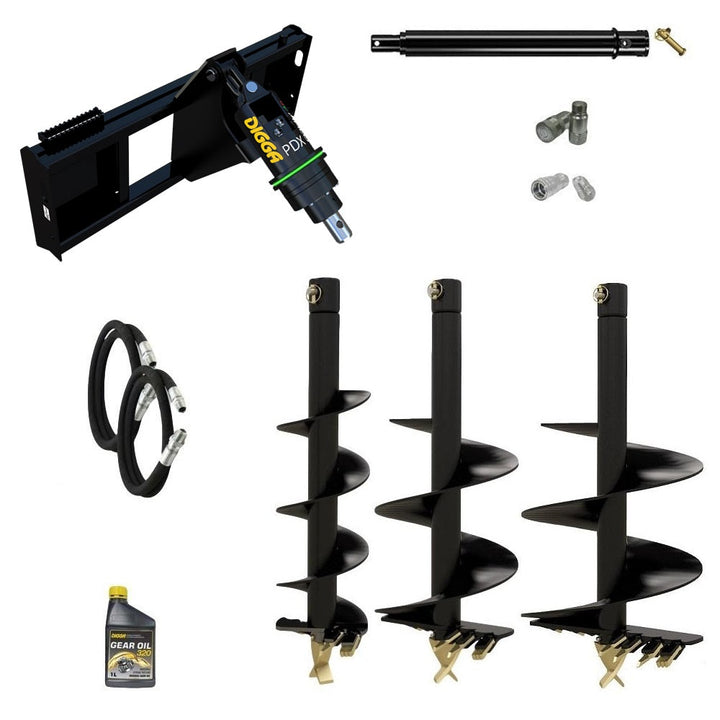

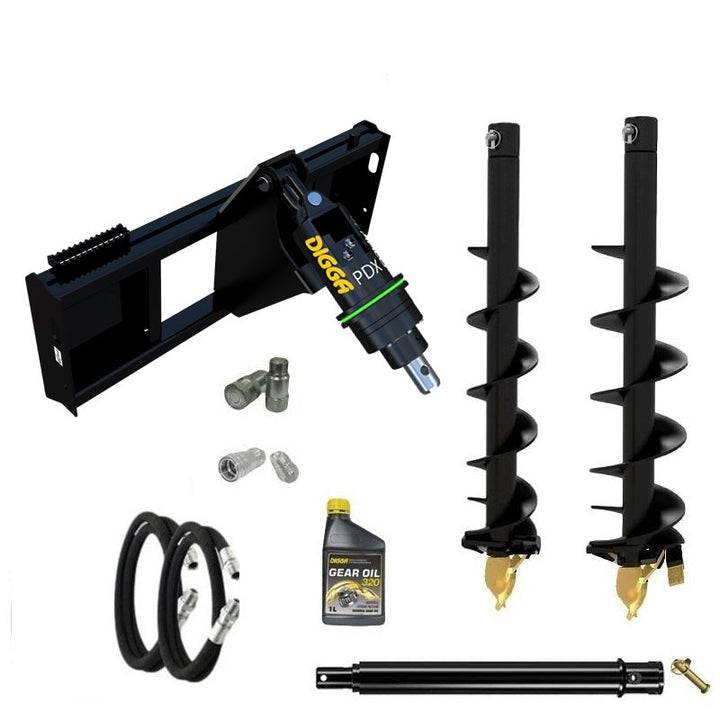

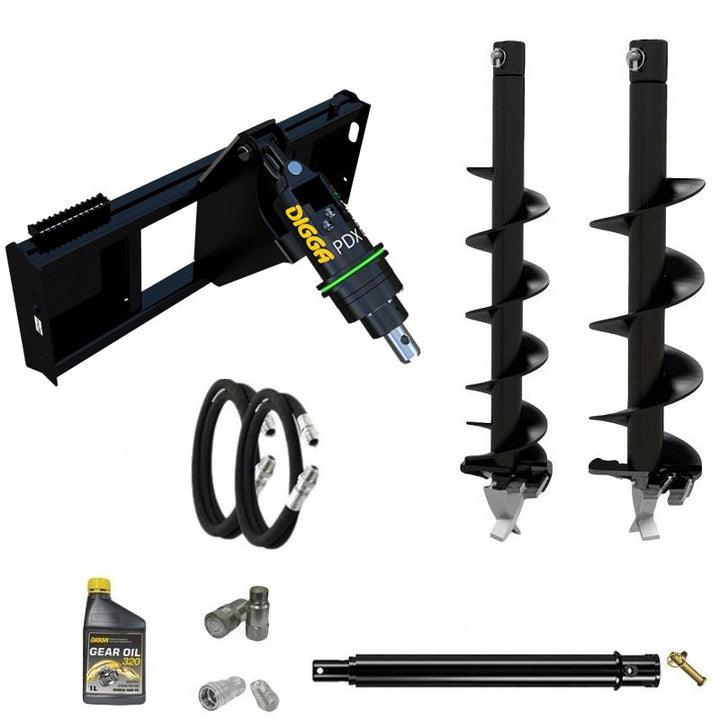

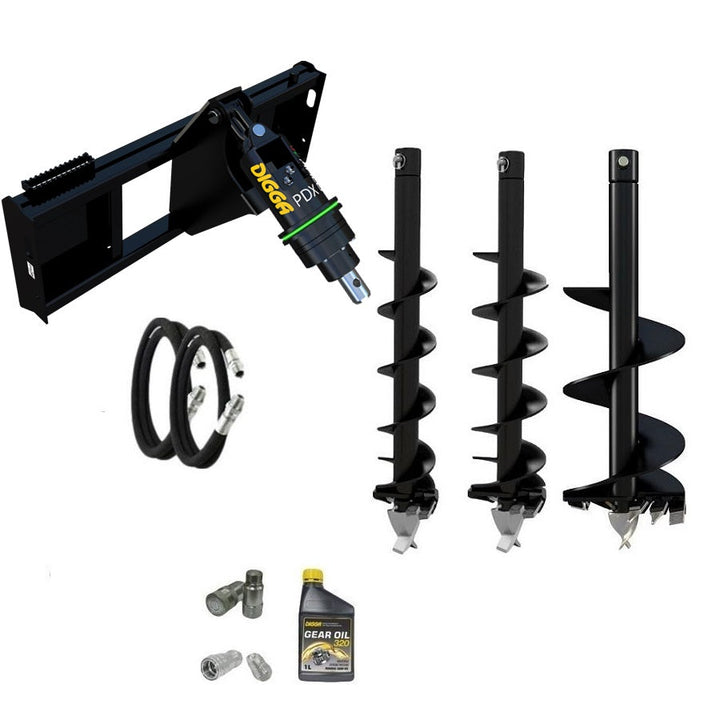

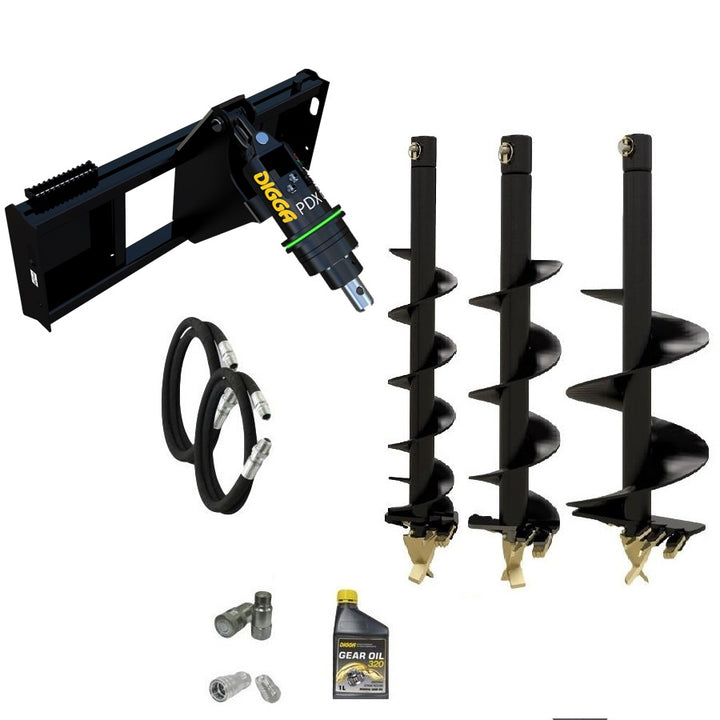

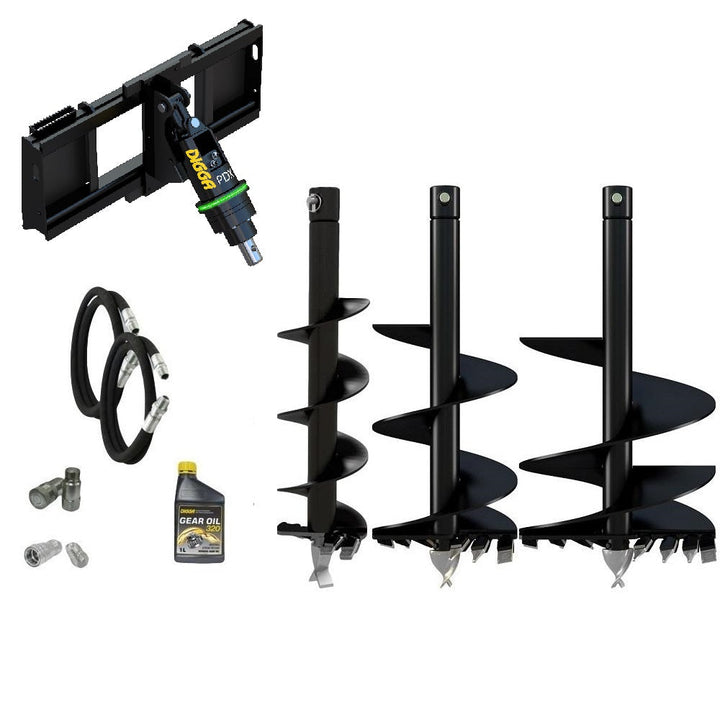

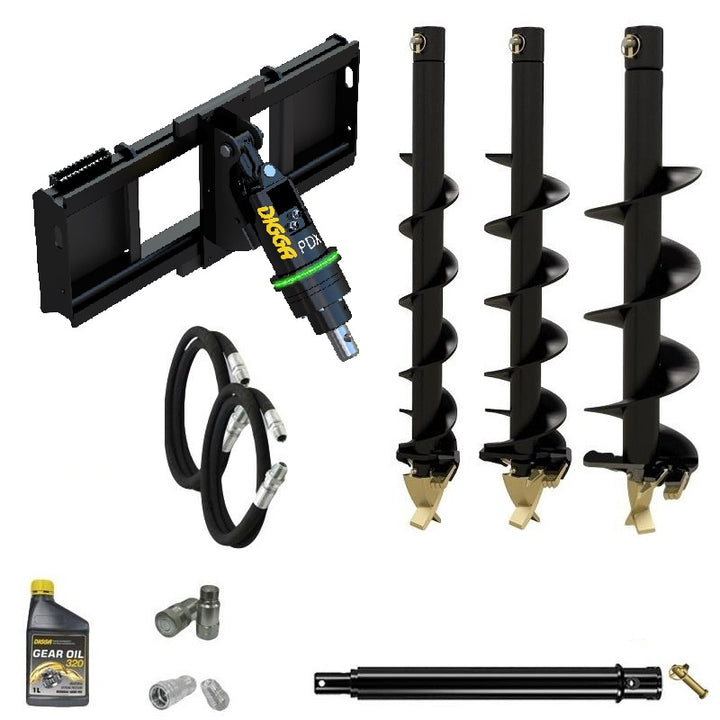

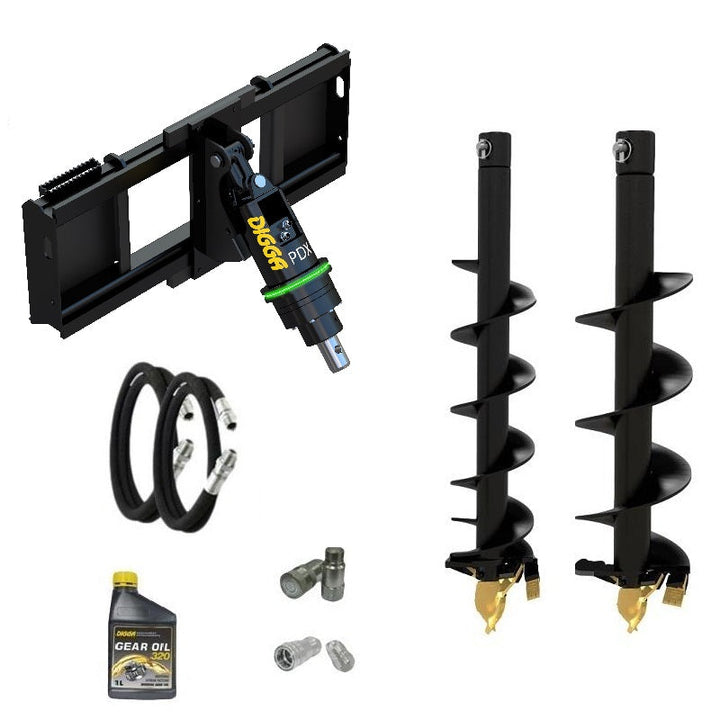

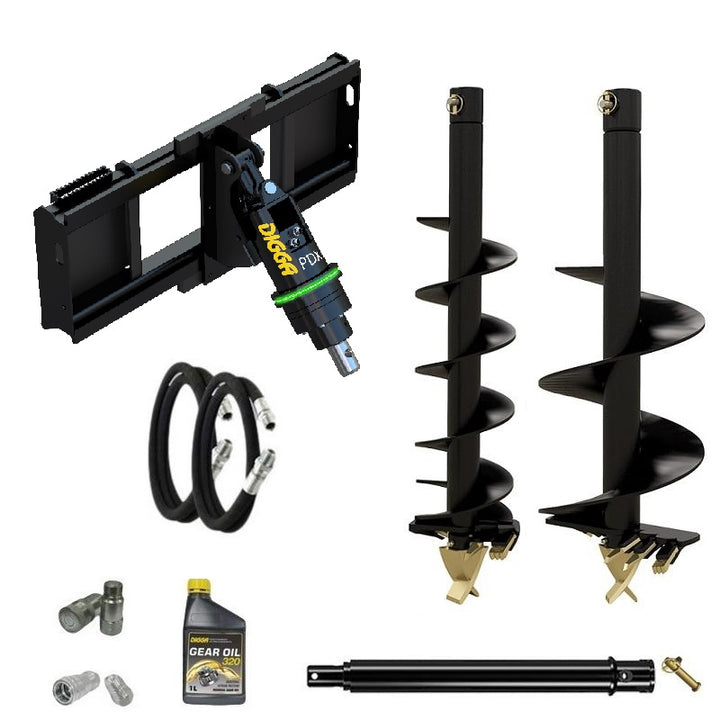

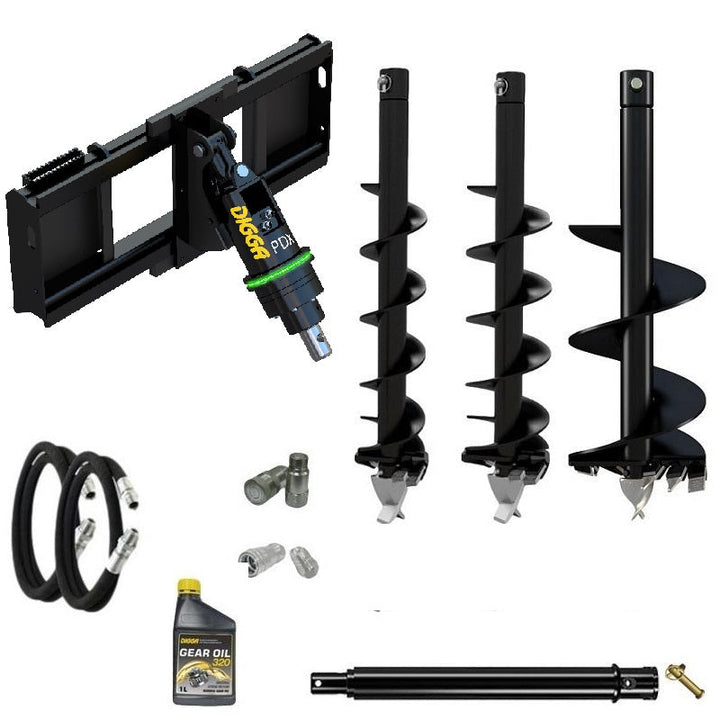

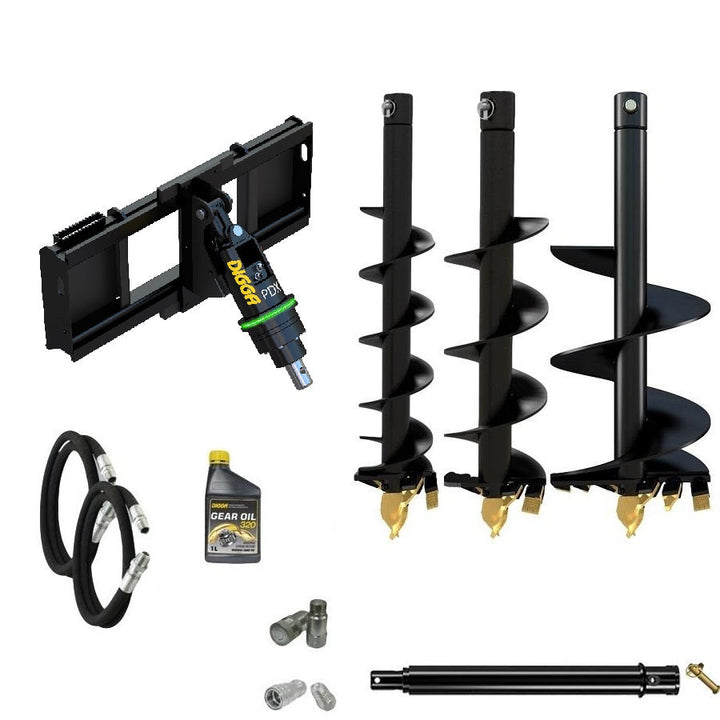

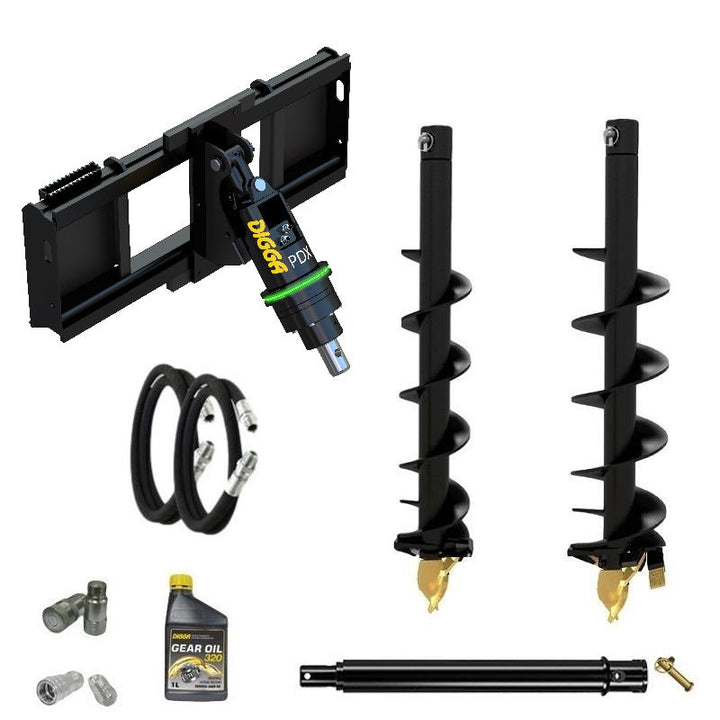

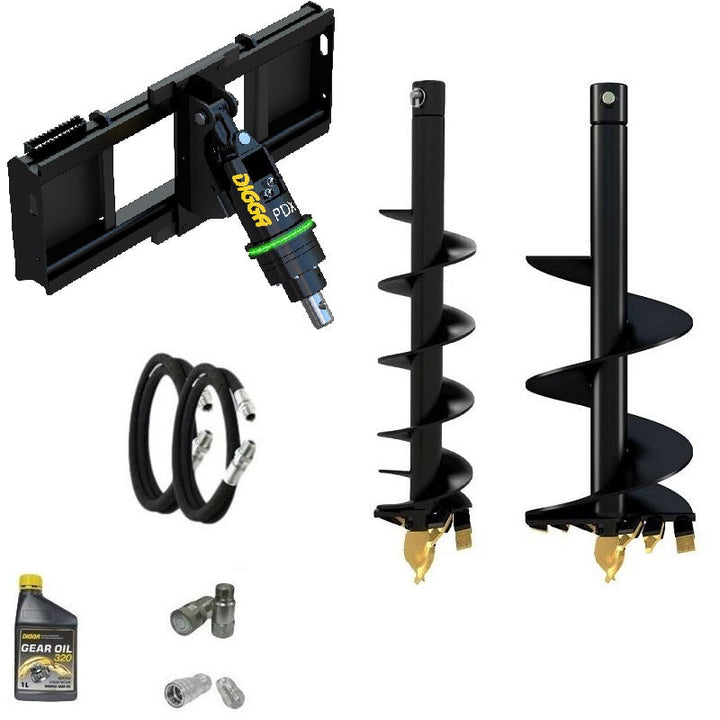

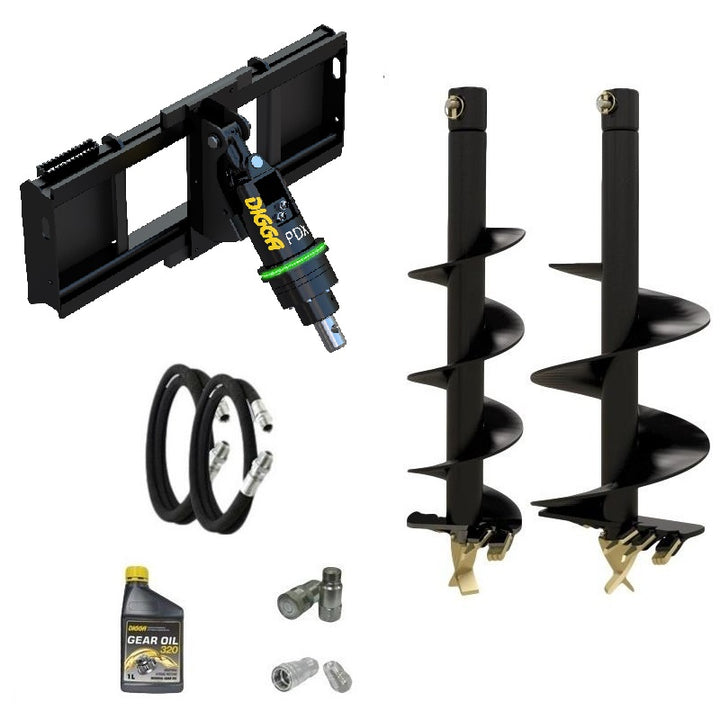

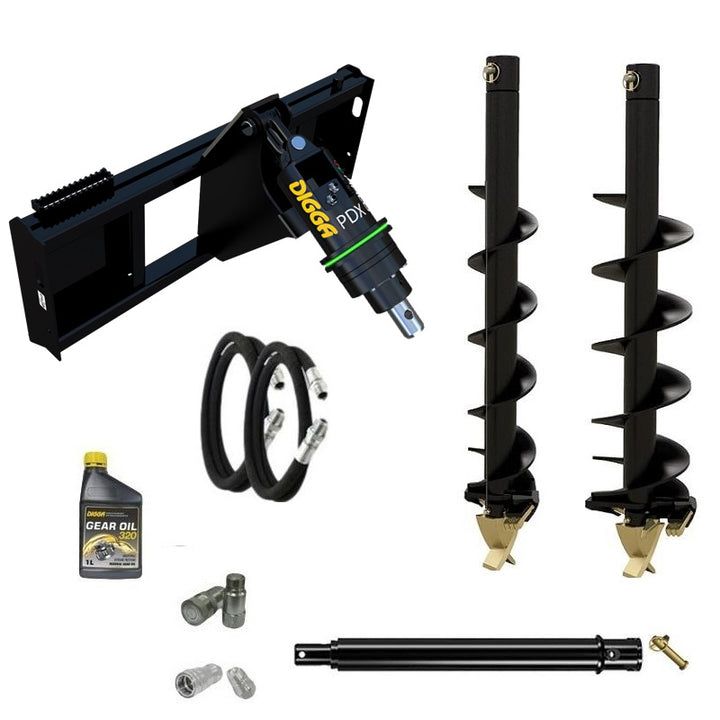

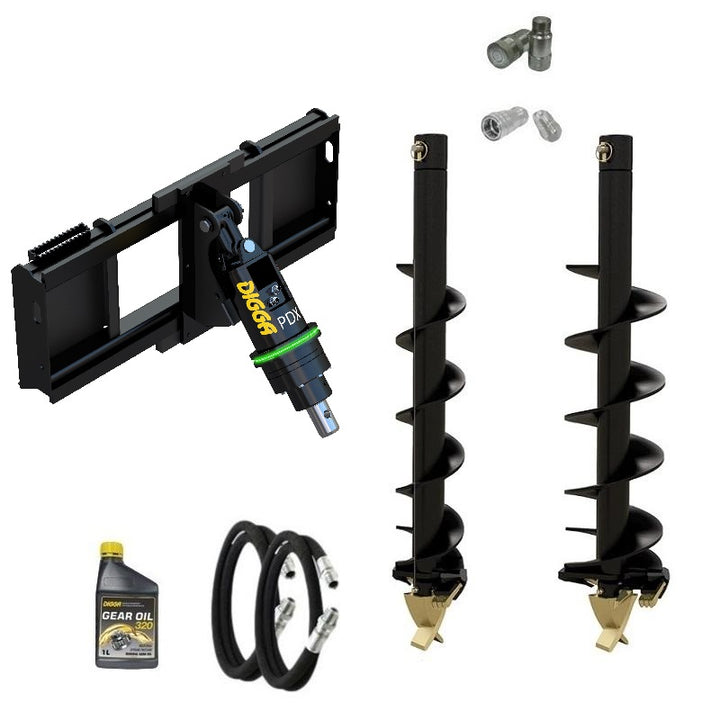

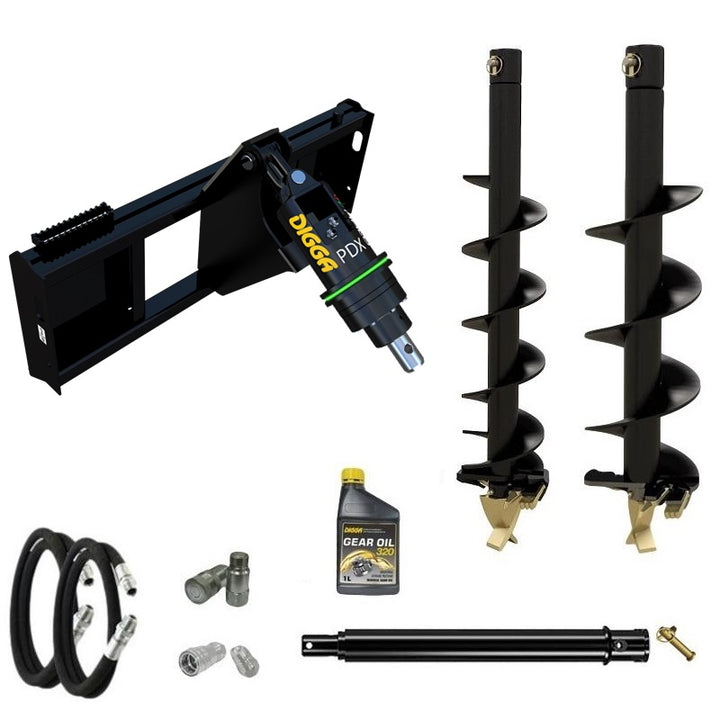

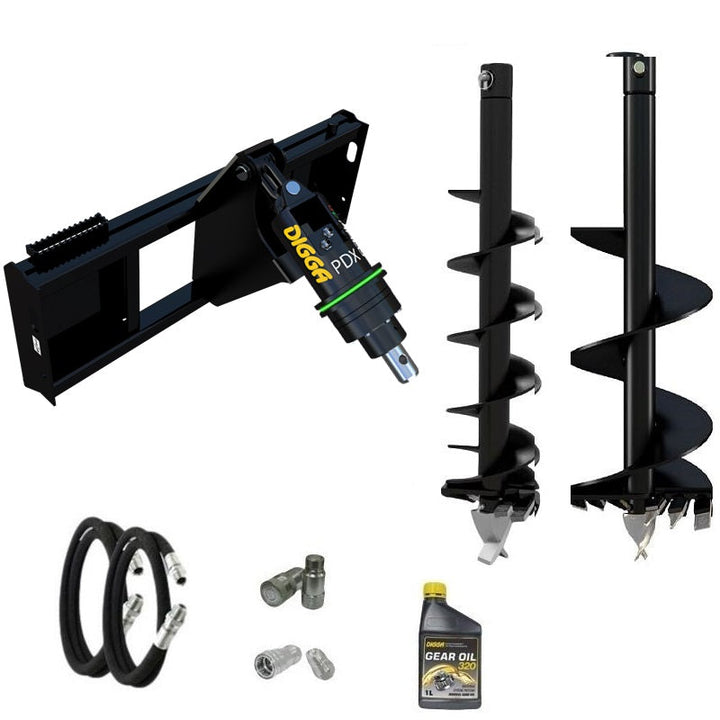

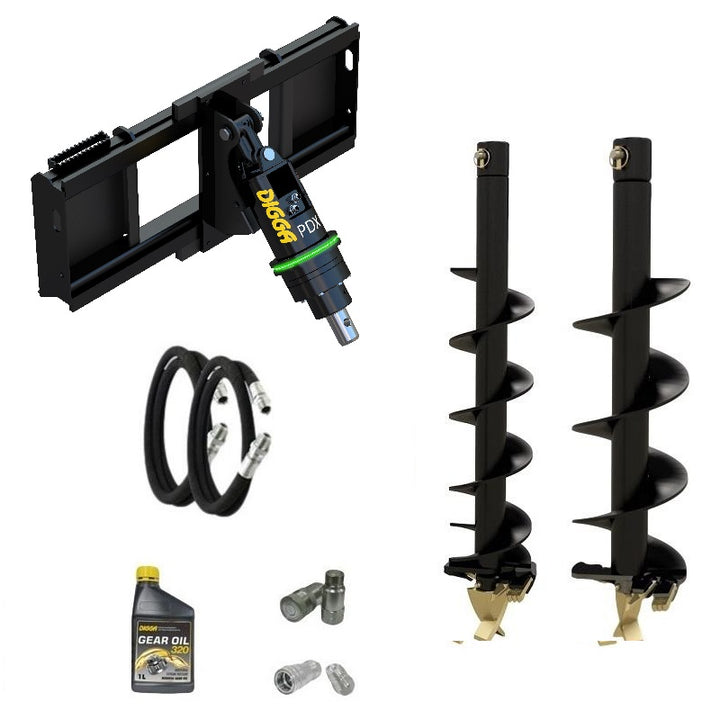

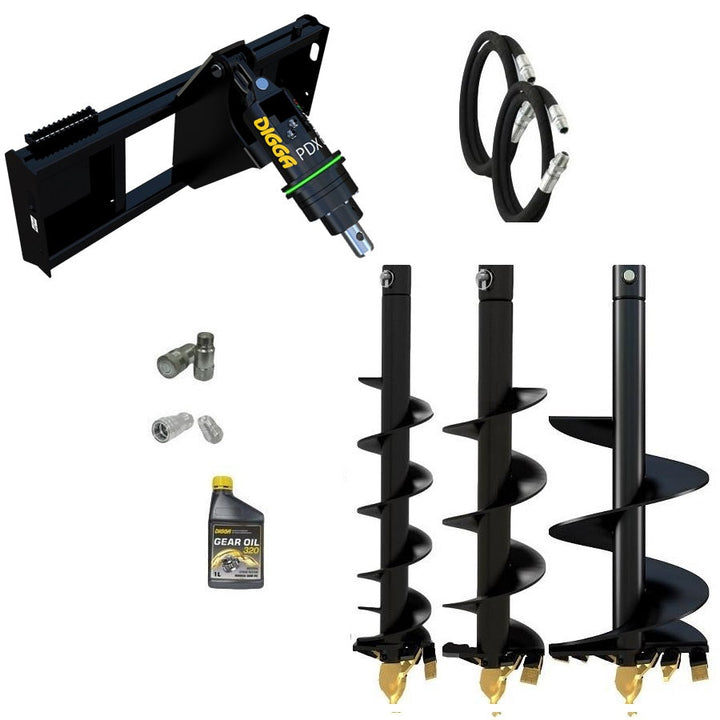

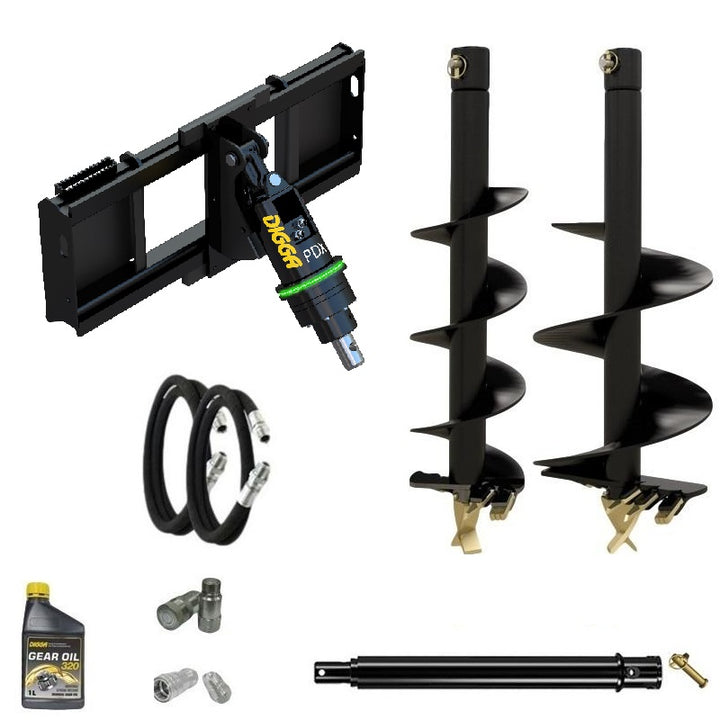

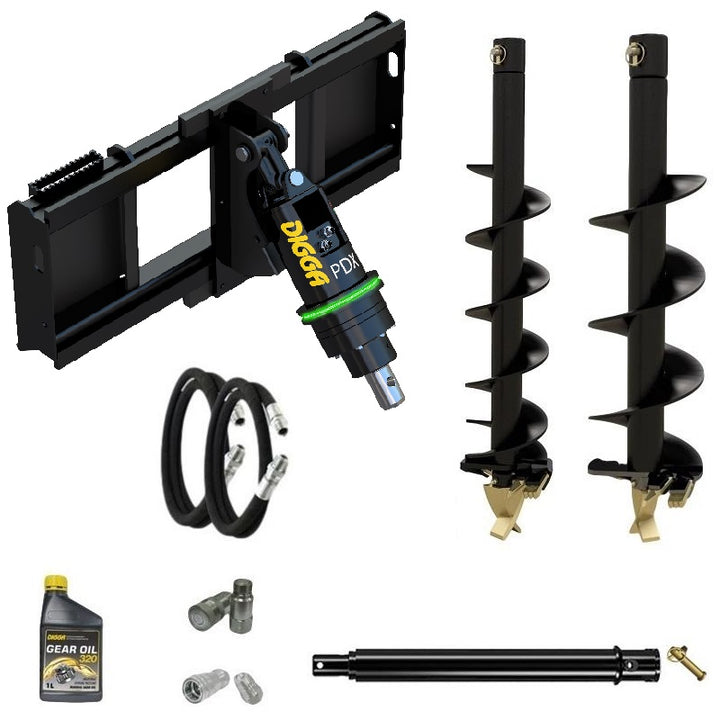

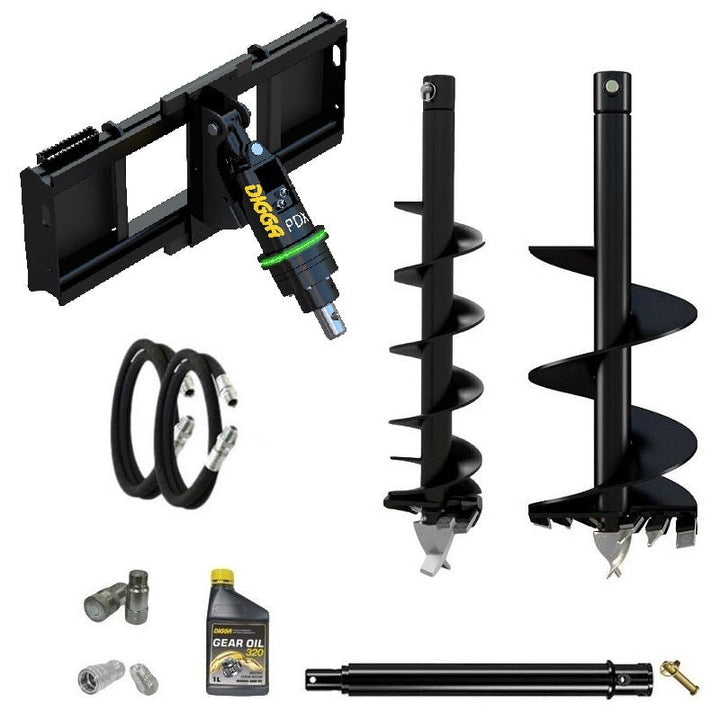

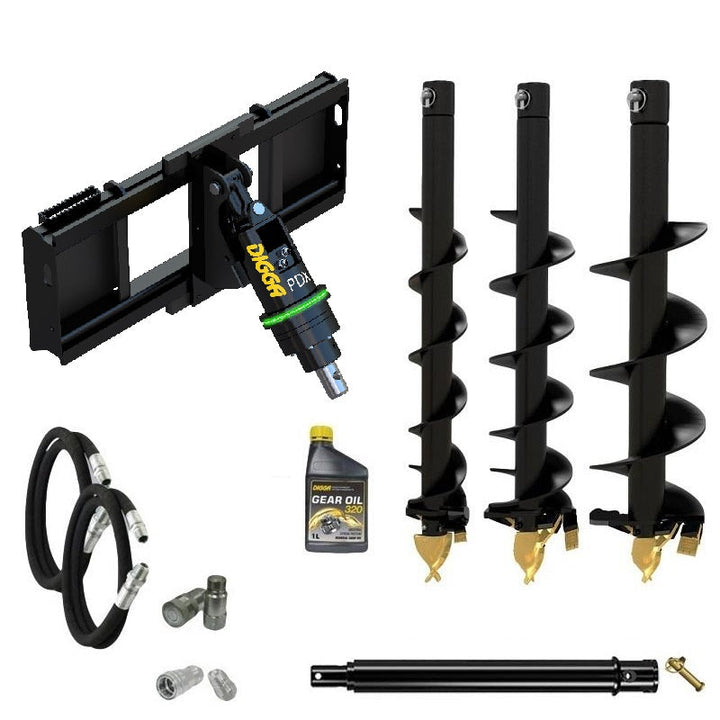

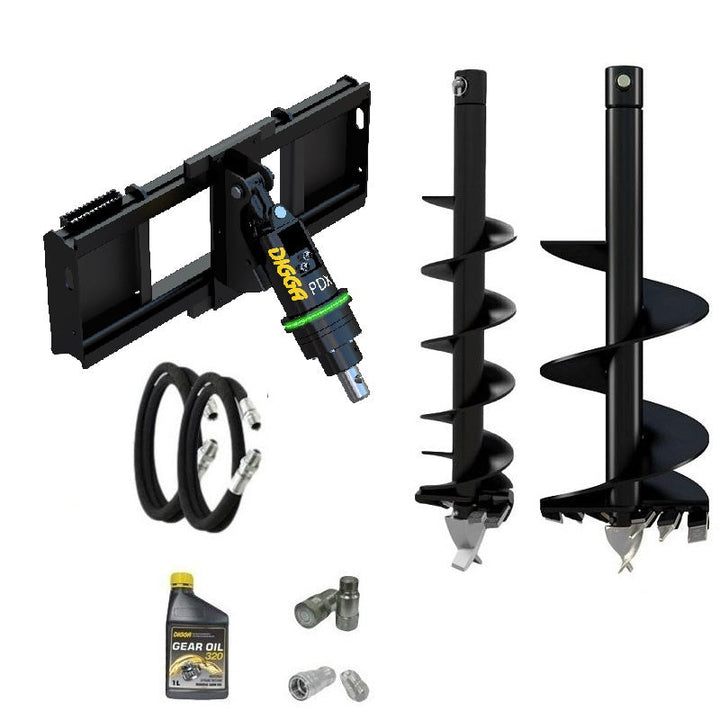

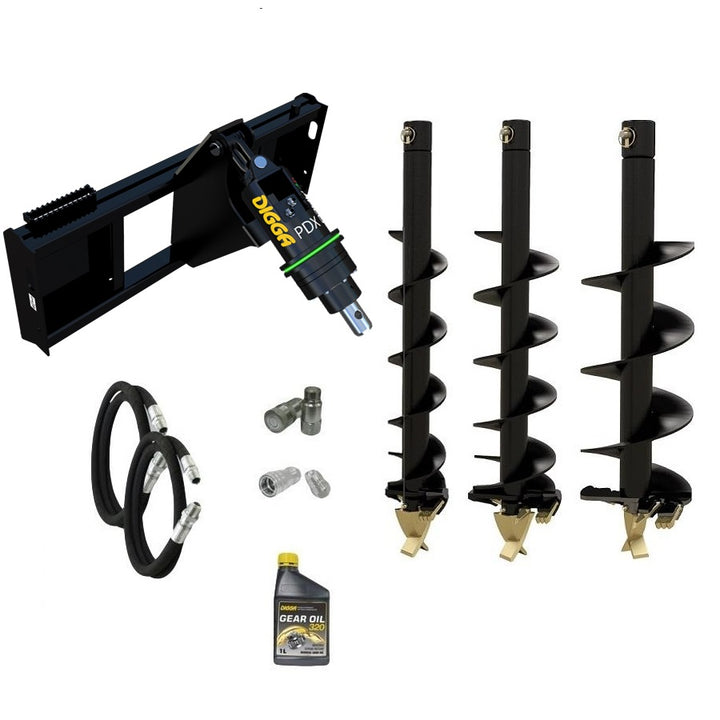

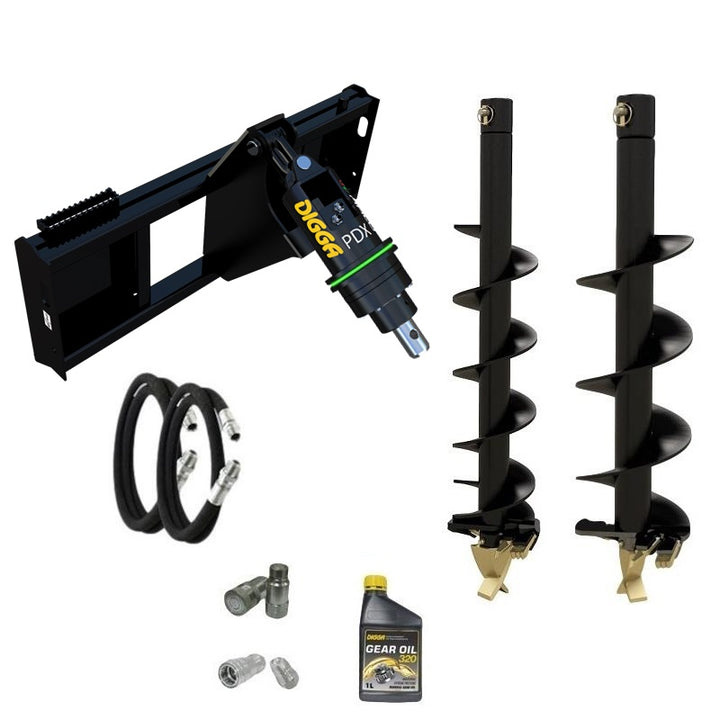

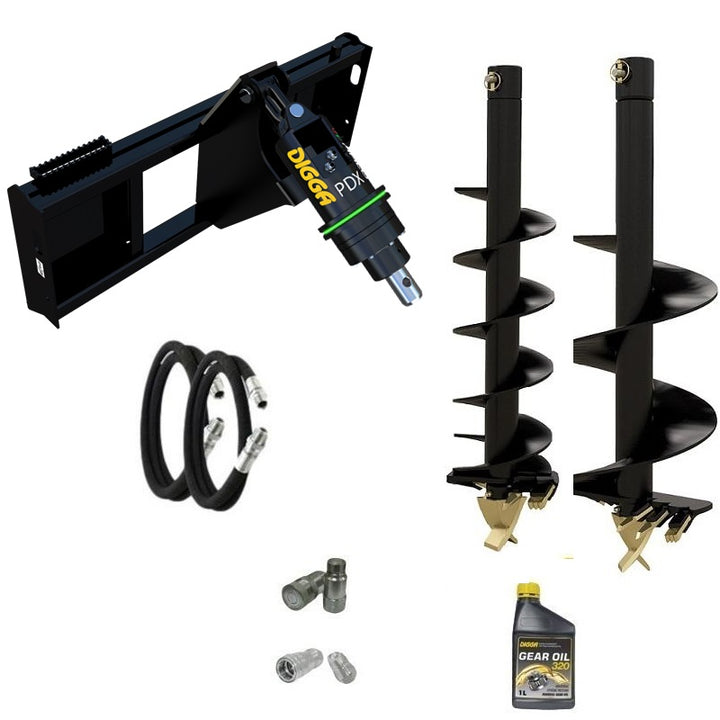

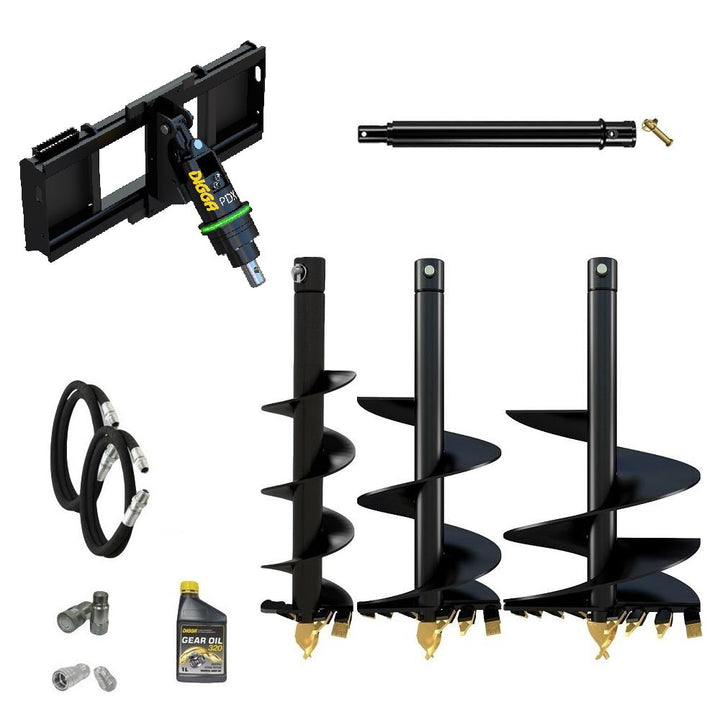

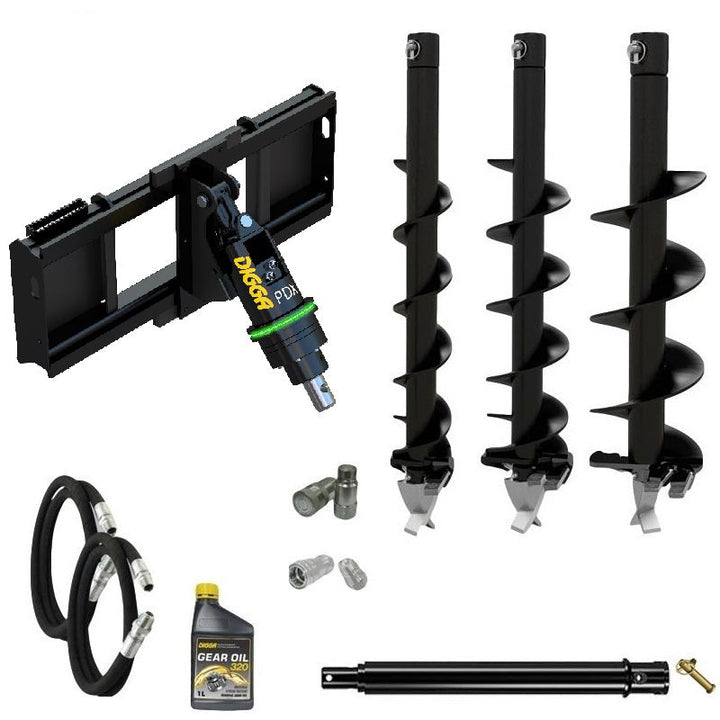

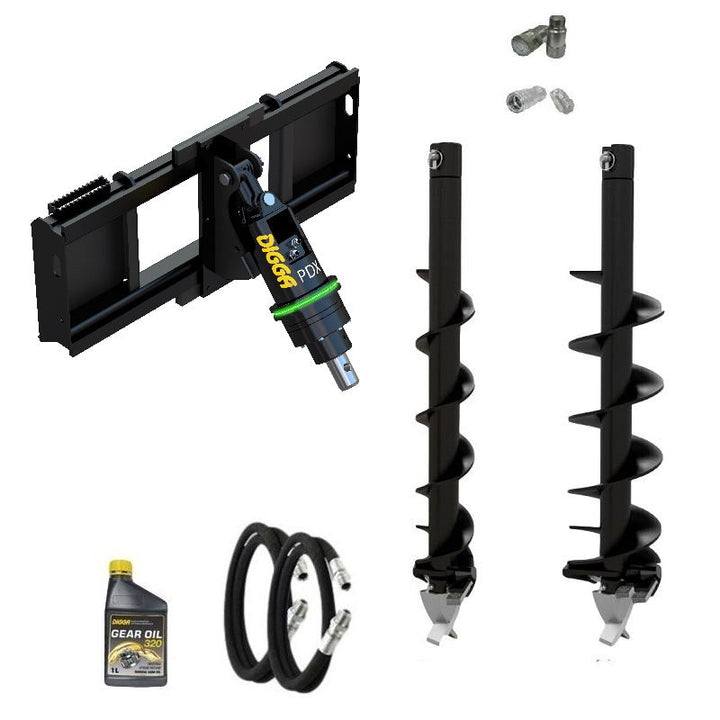

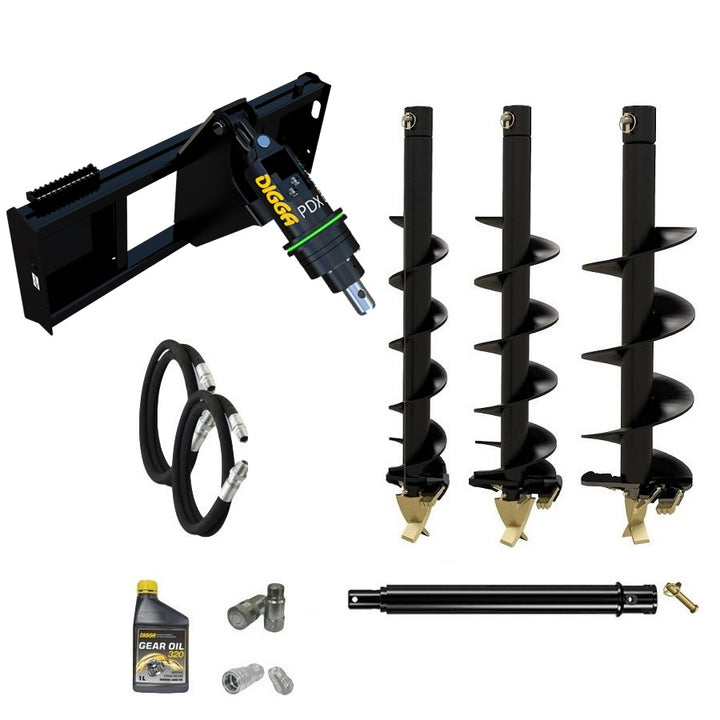

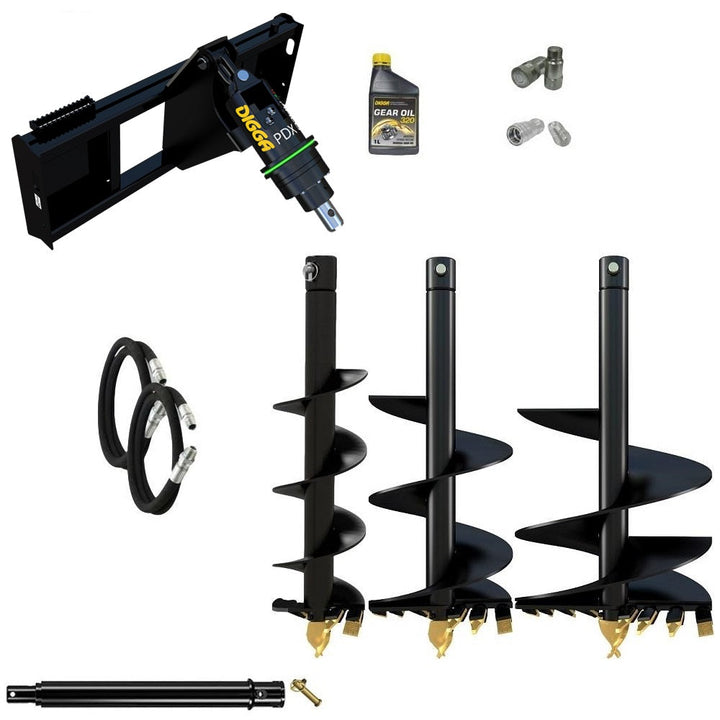

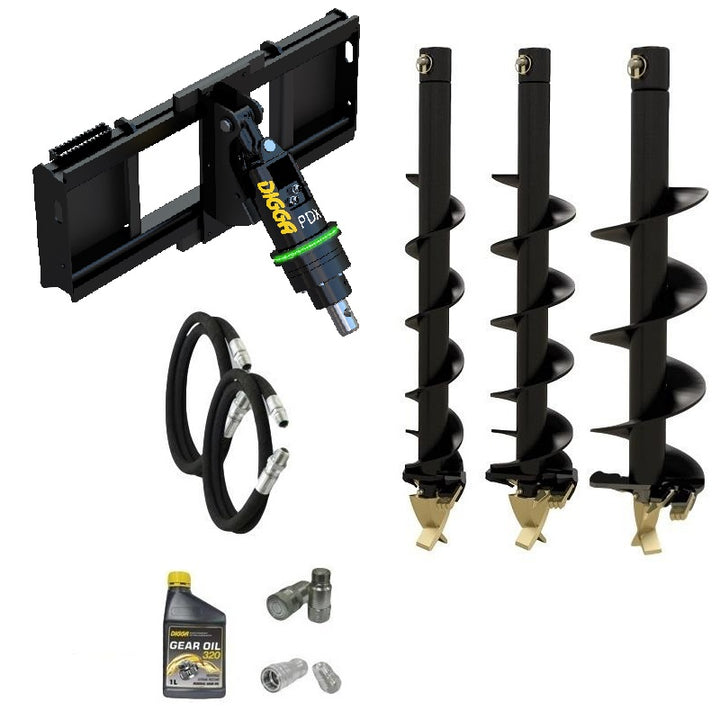

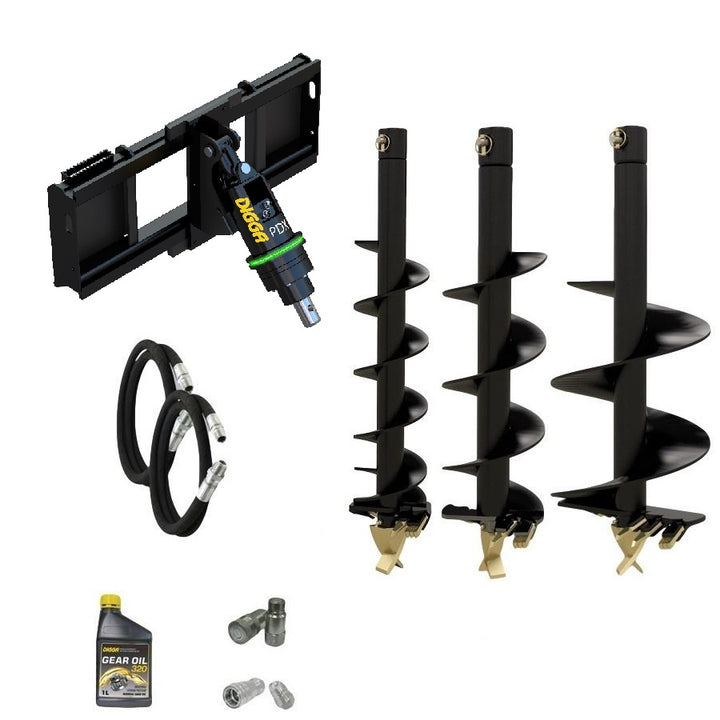

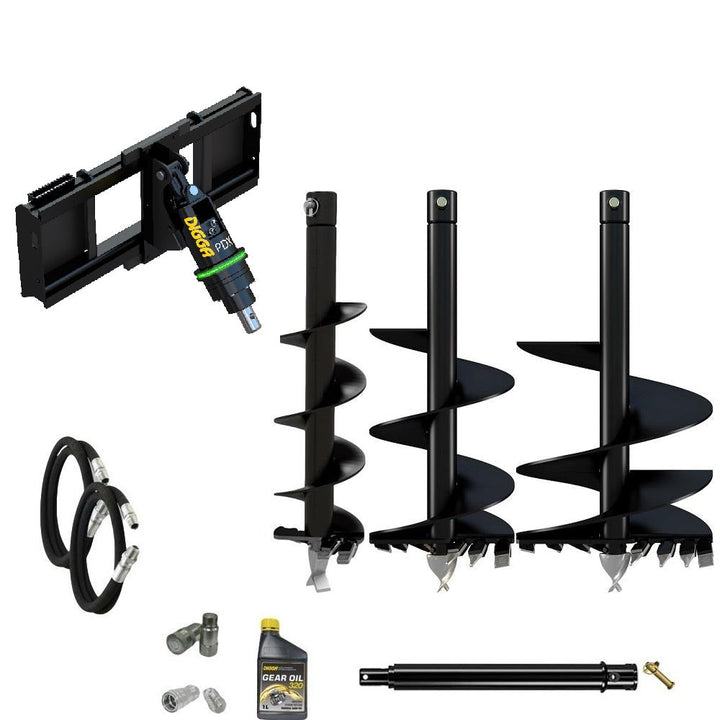

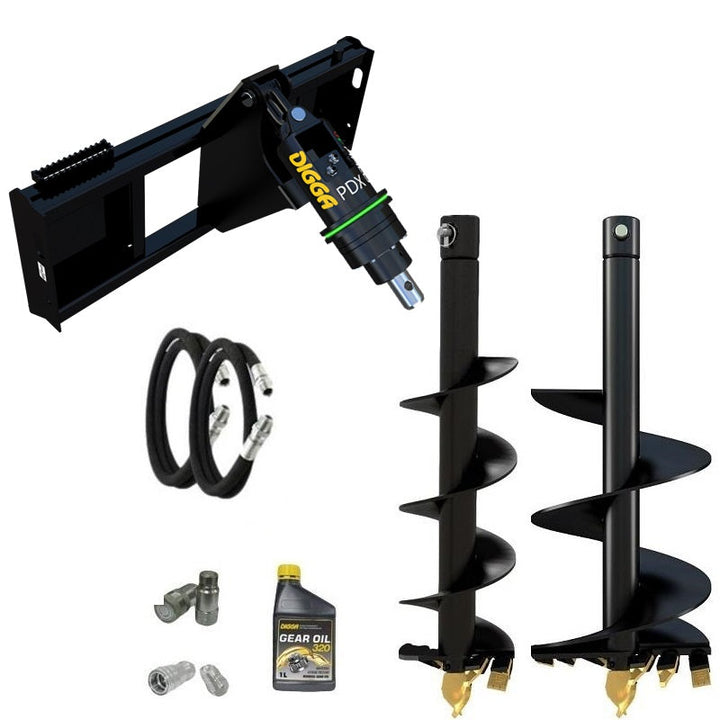

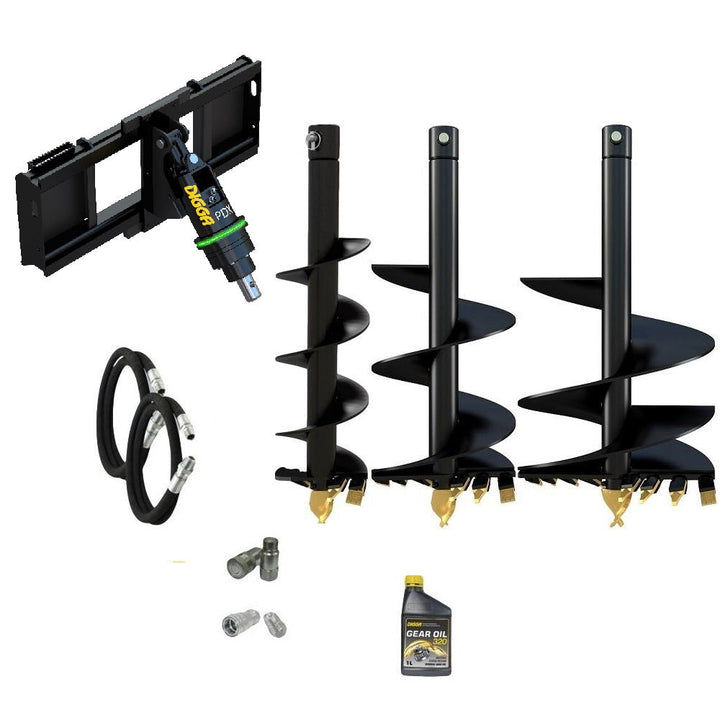

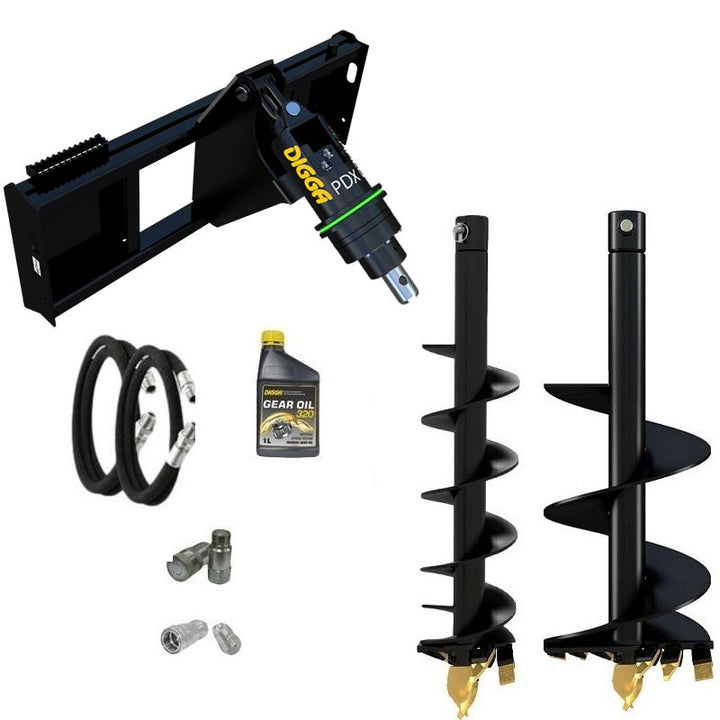

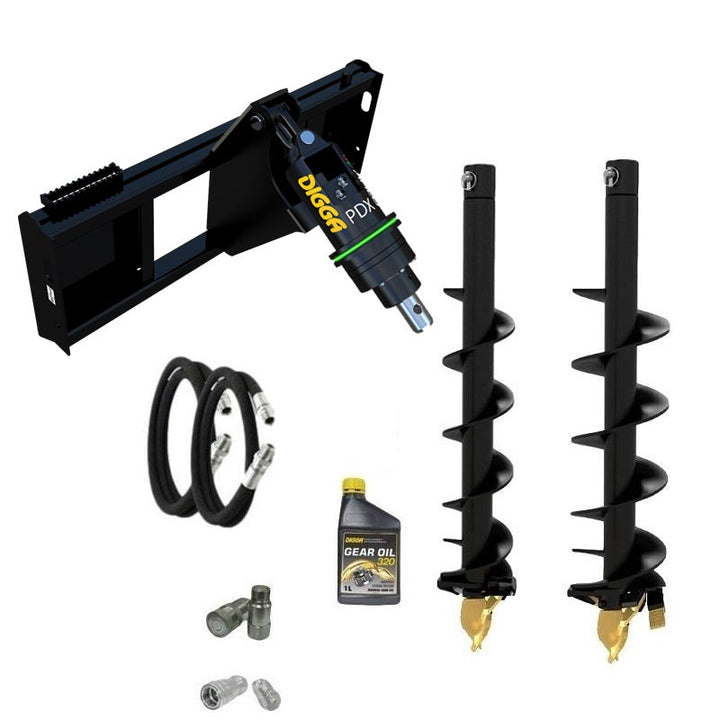

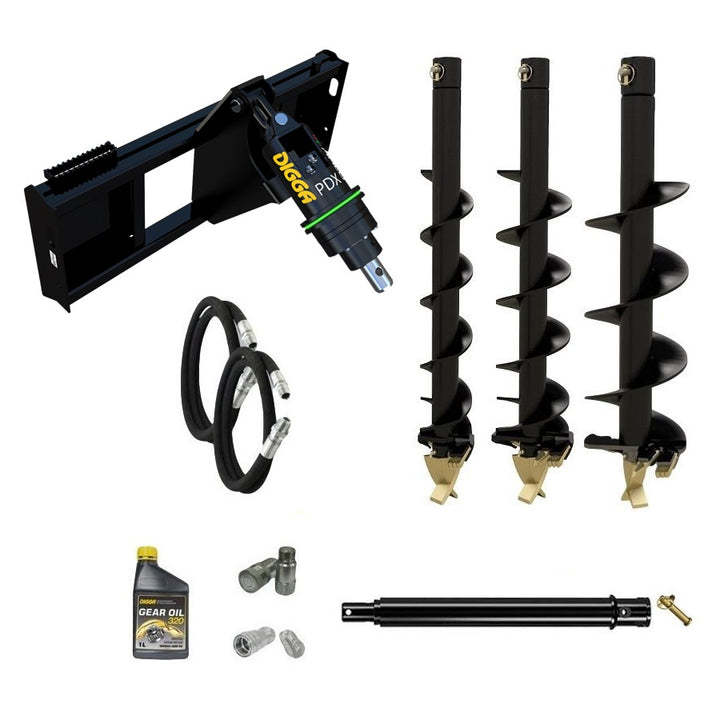

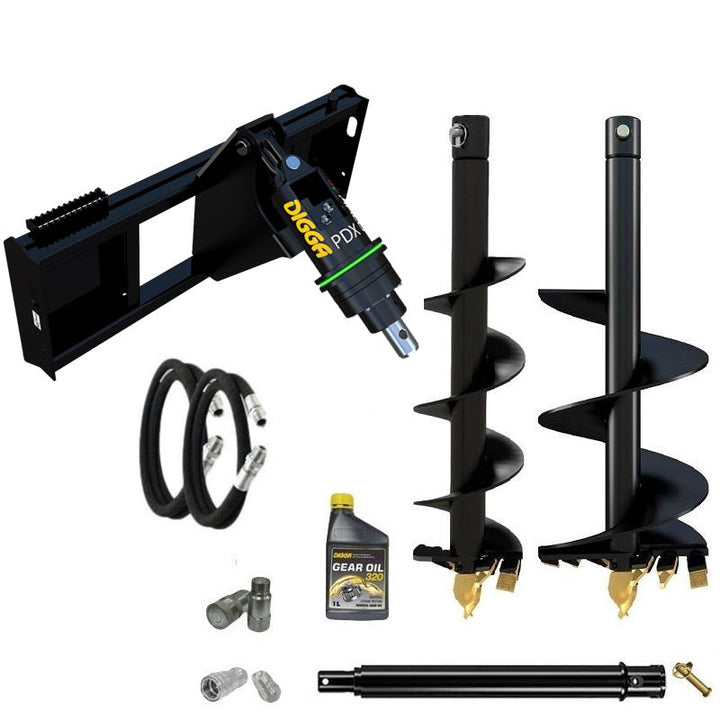

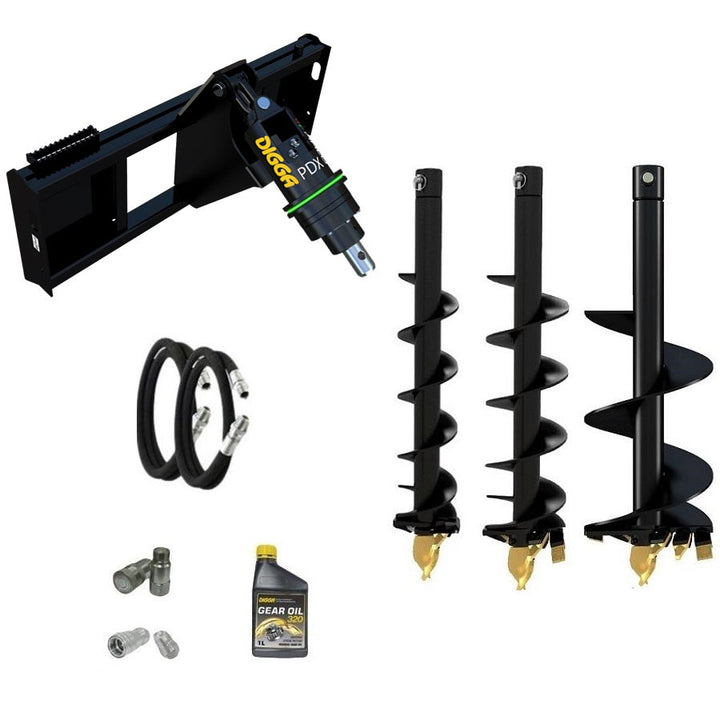

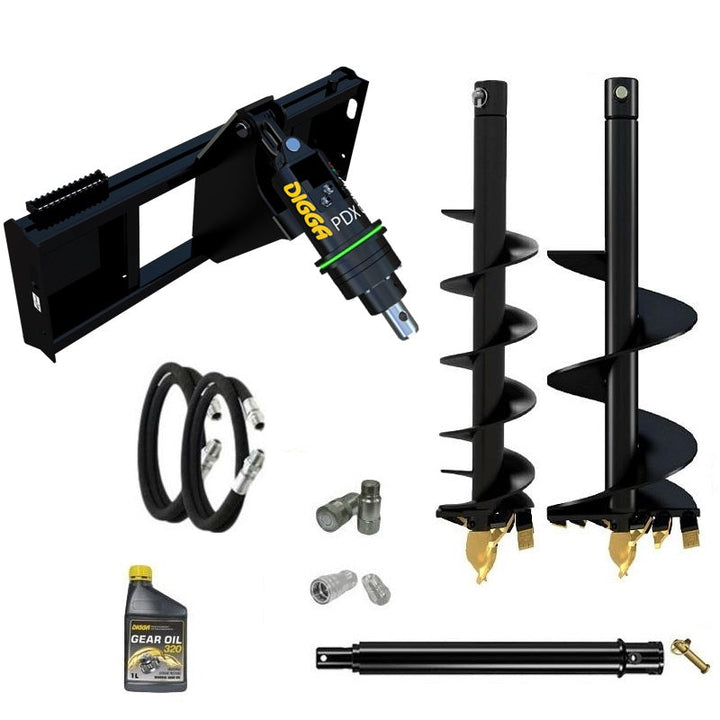

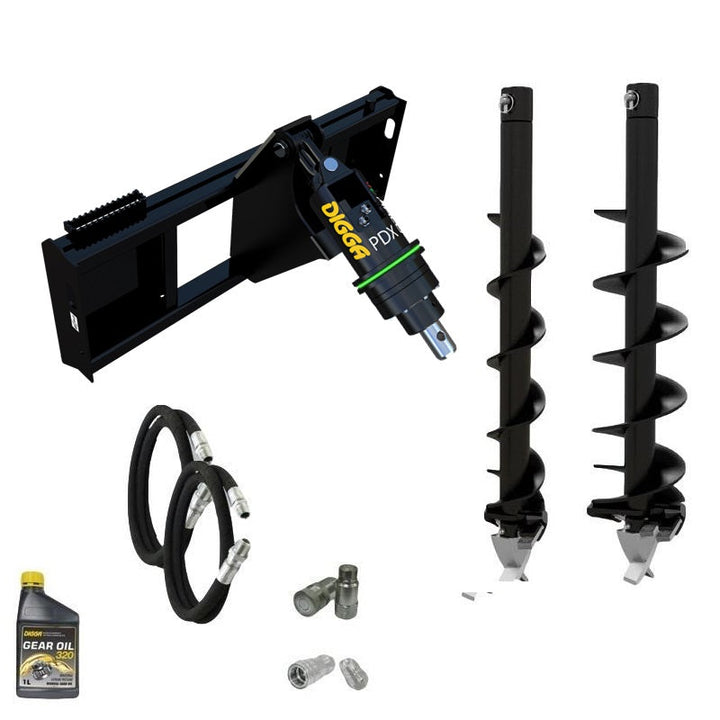

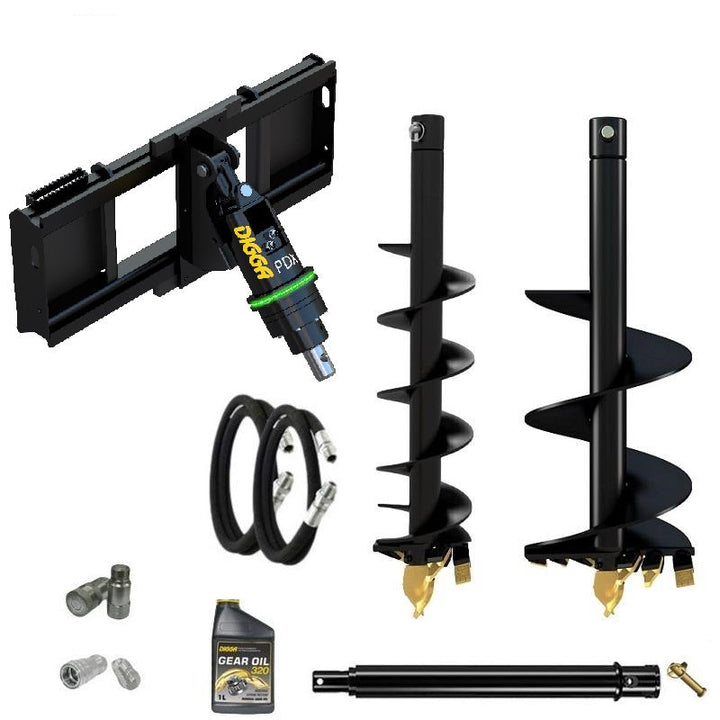

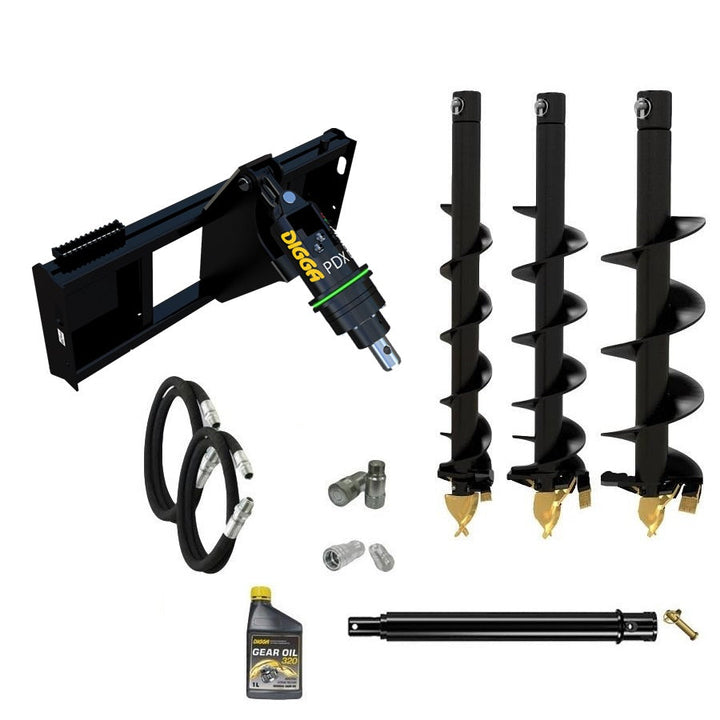

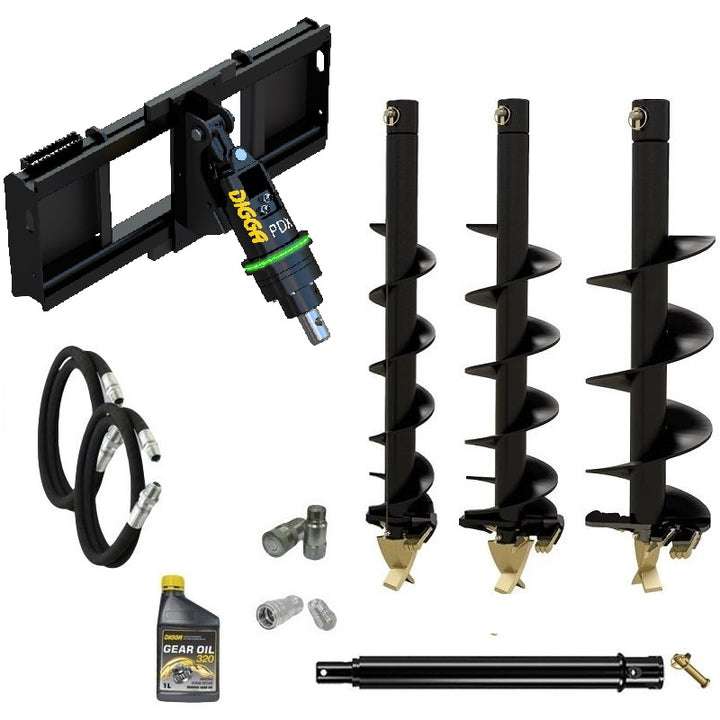

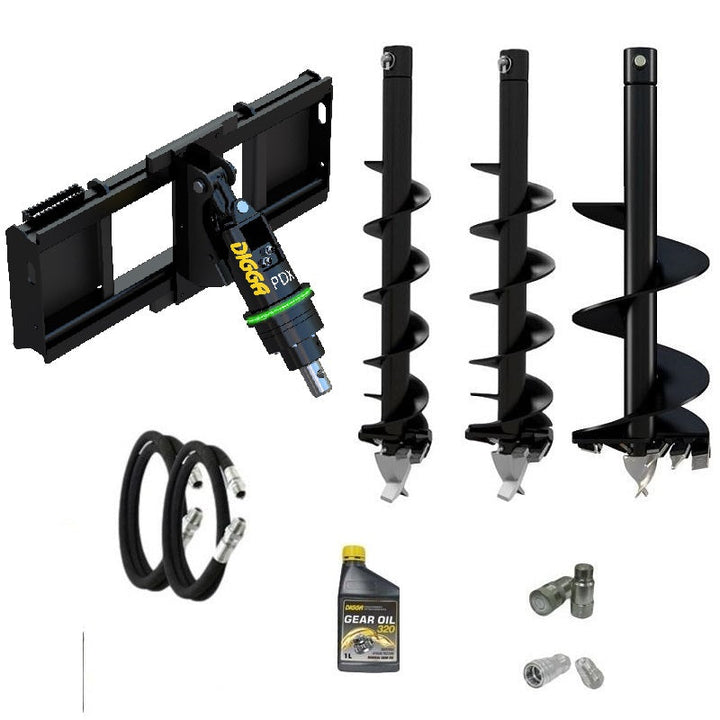

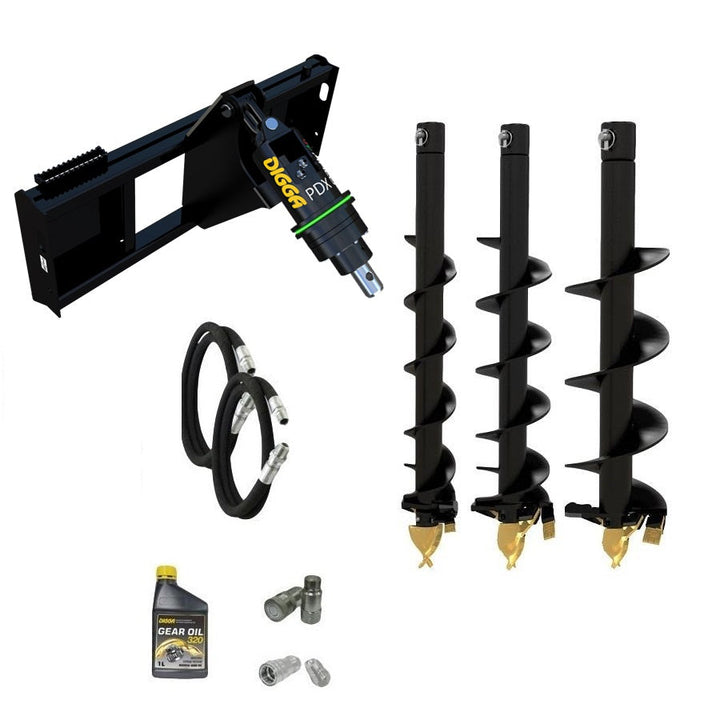

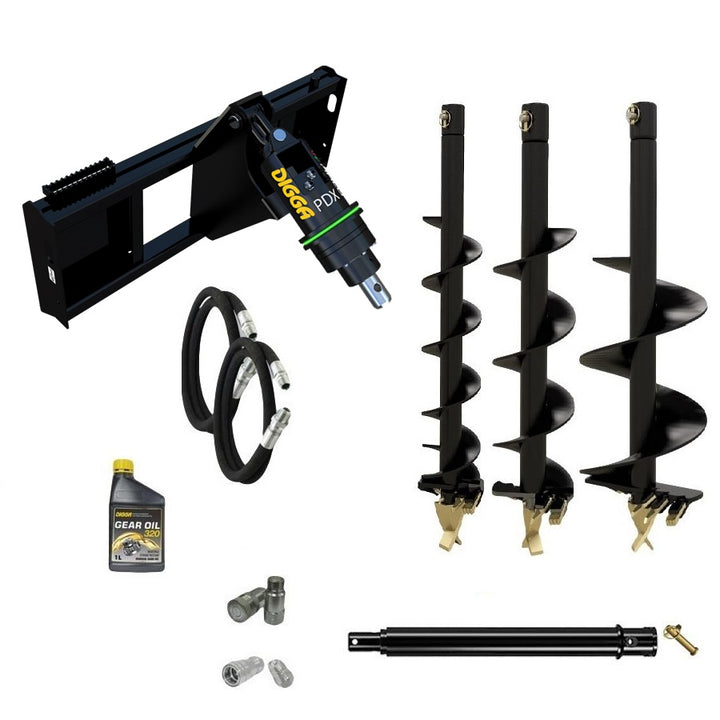

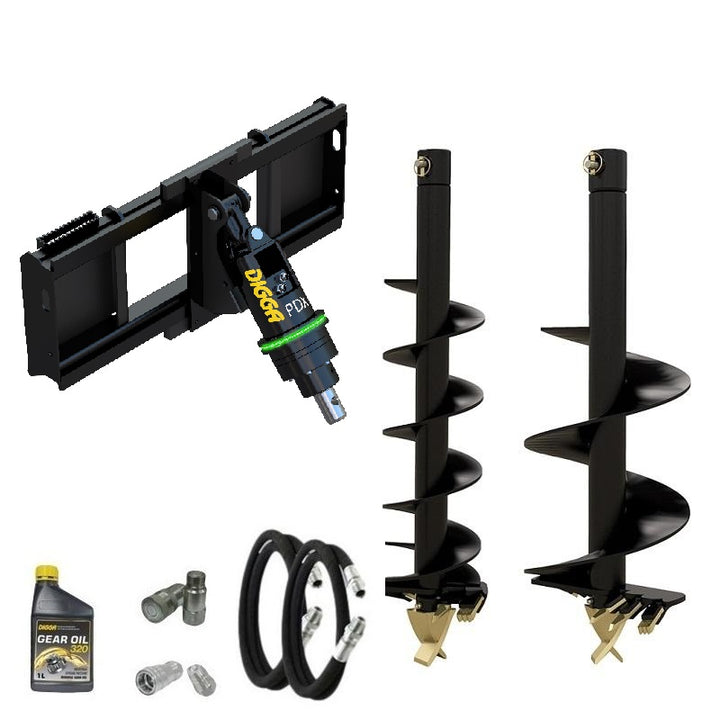

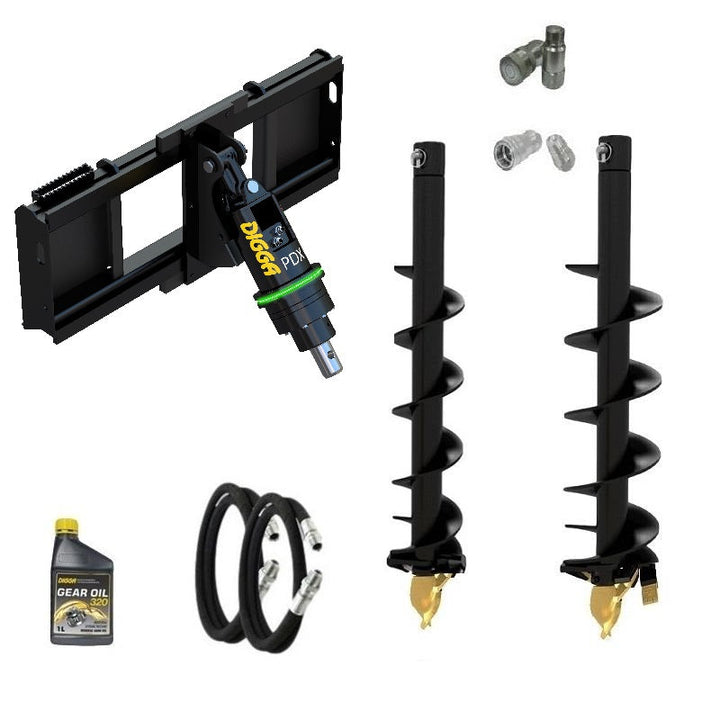

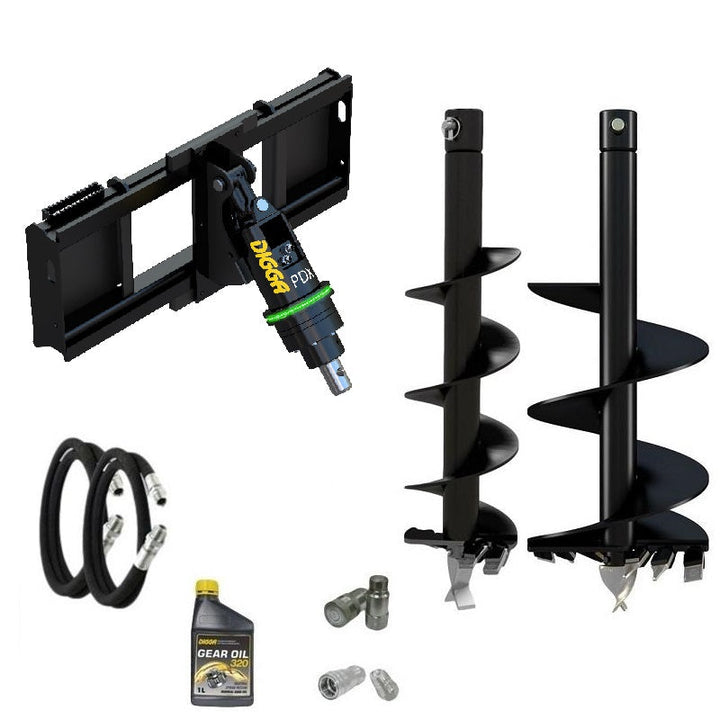

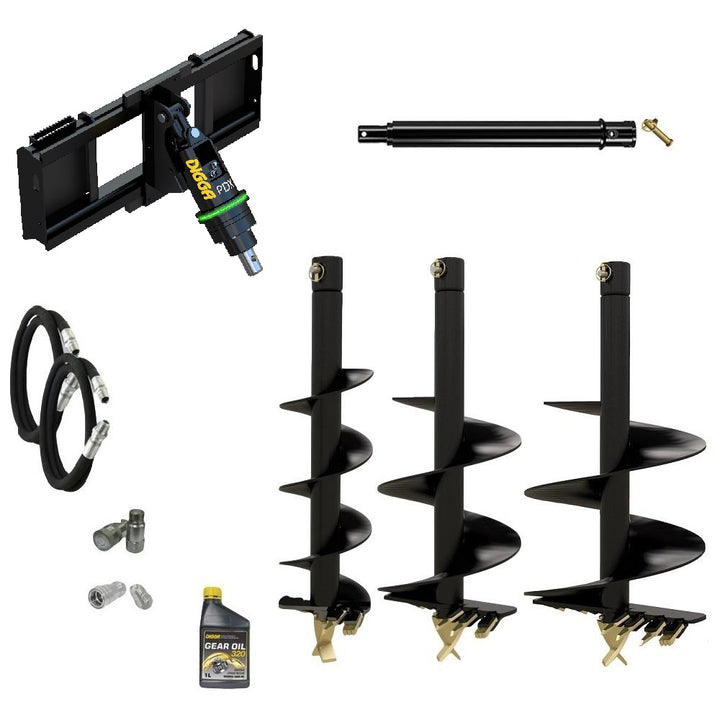

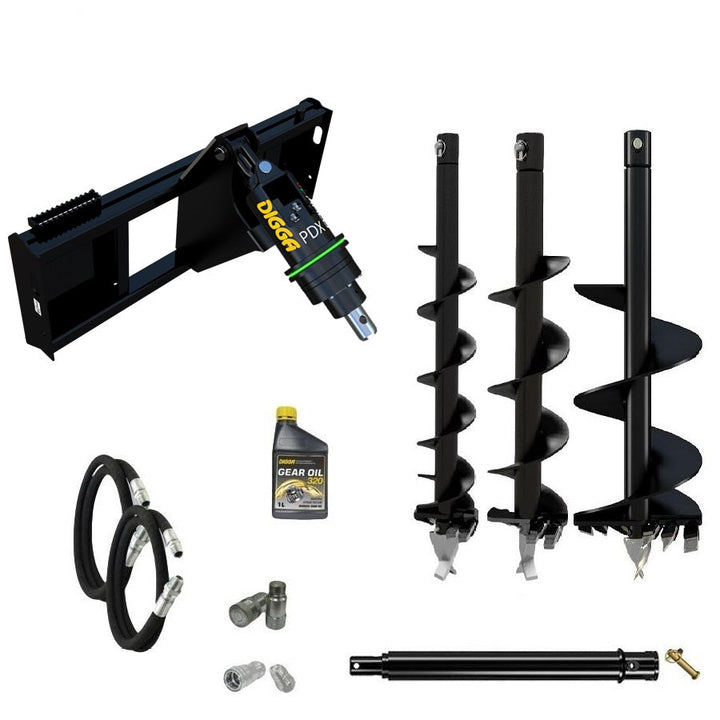

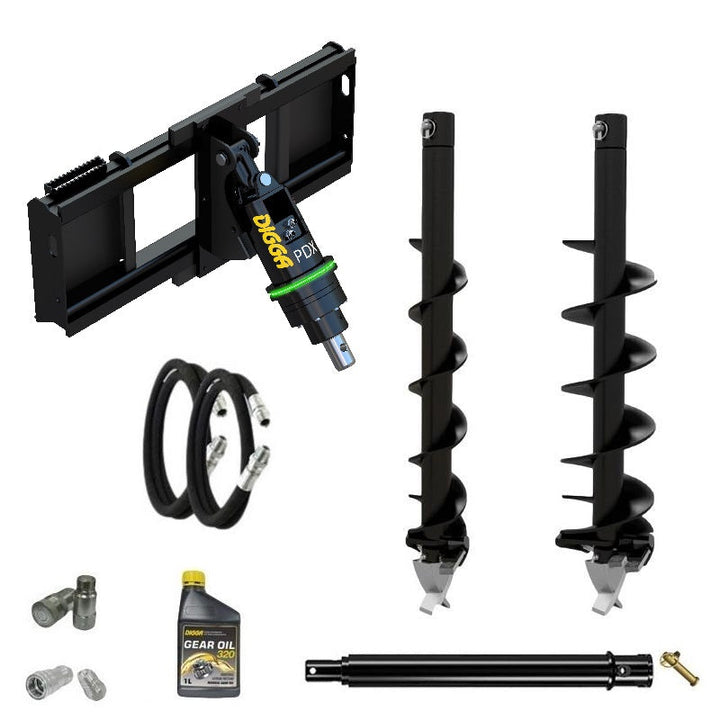

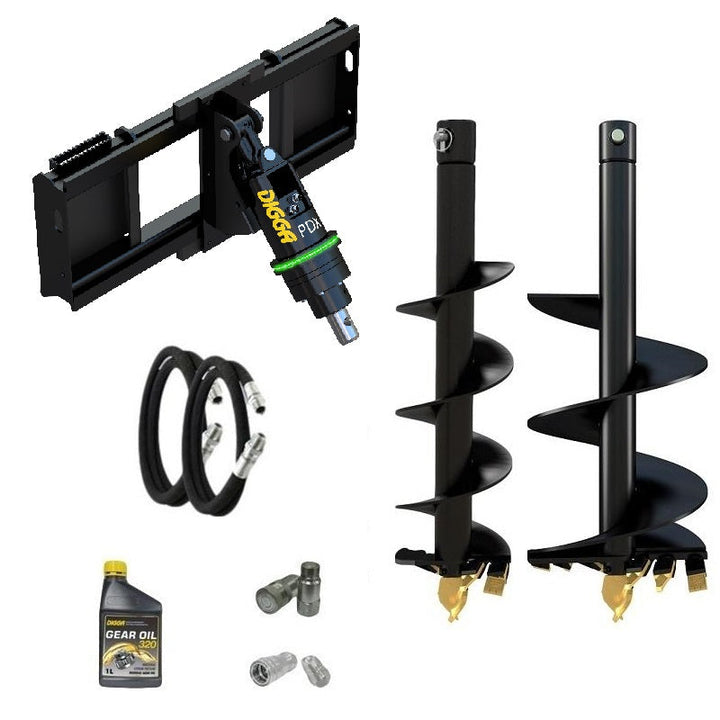

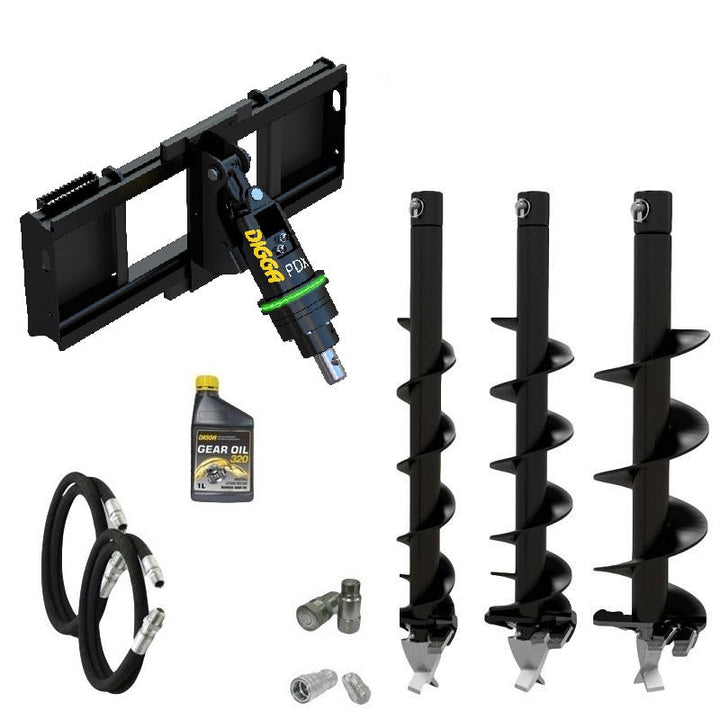

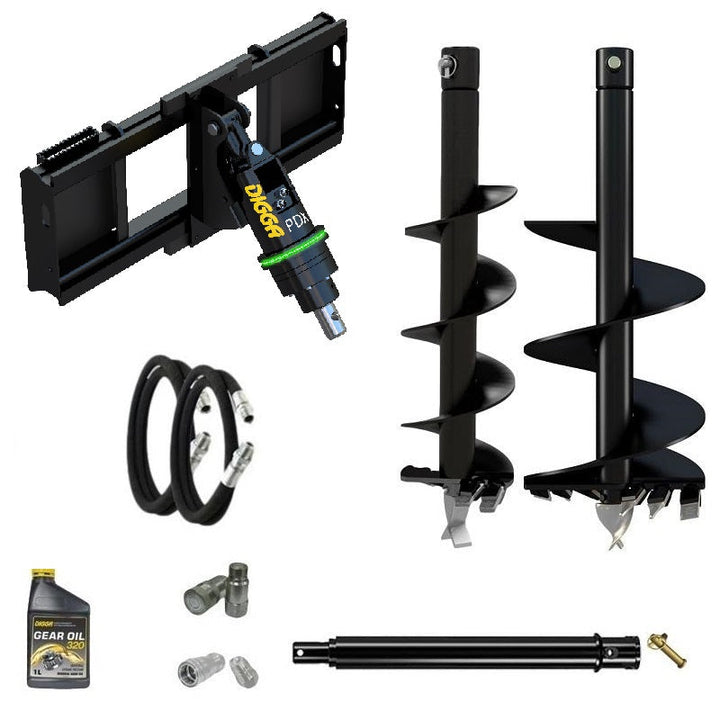

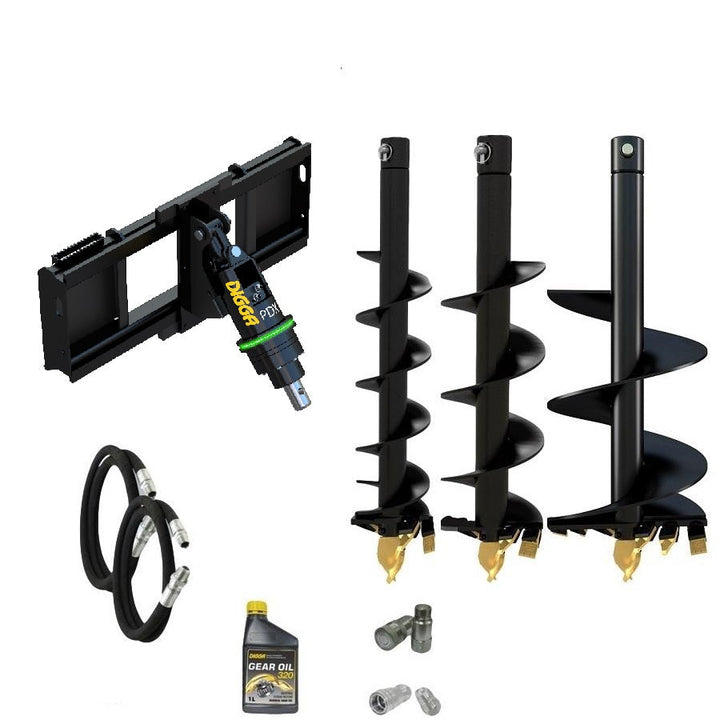

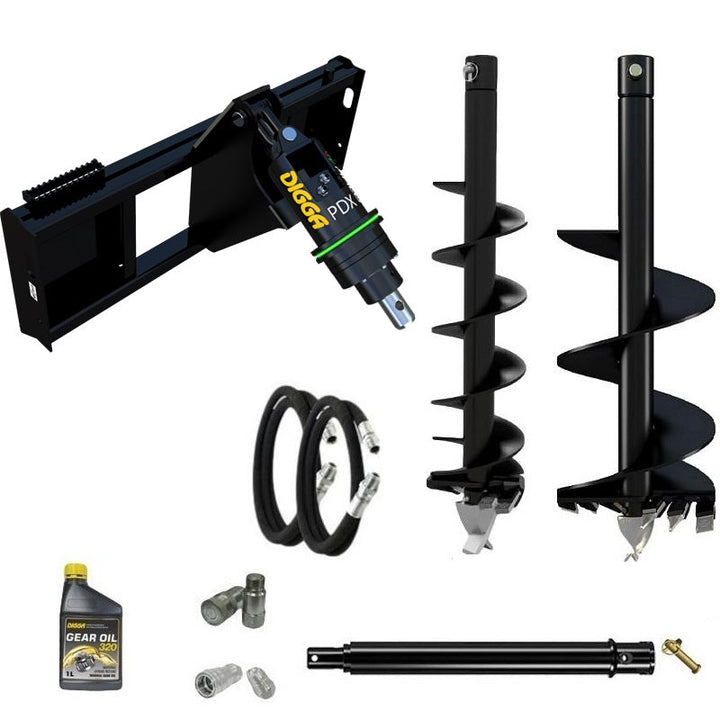

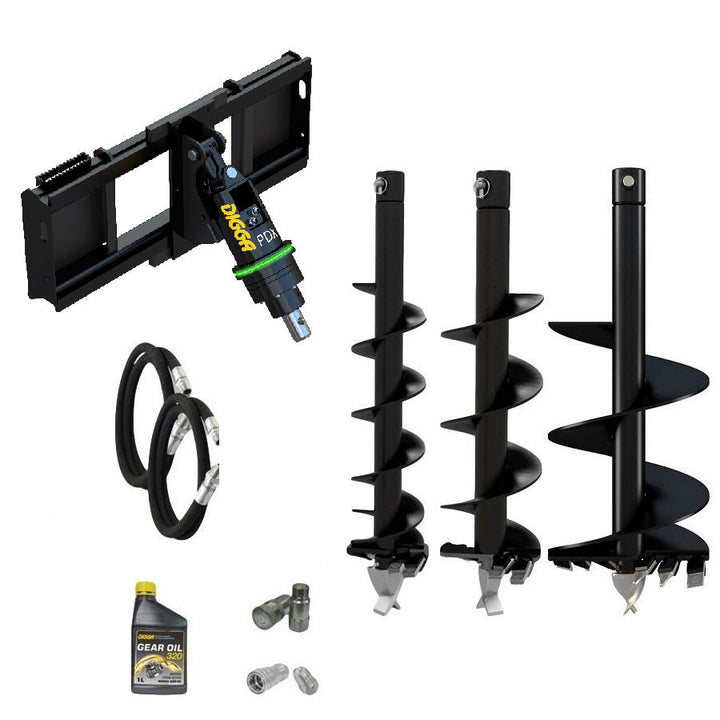

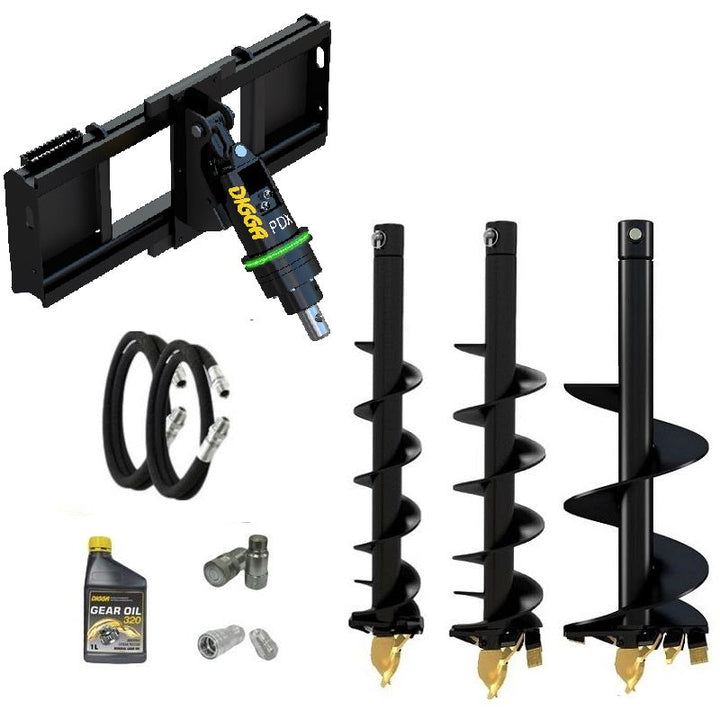

Digga PDXH HALO auger drive combo package for small skid steers

Purchase any Digga PDXH Earth Drill Combo Package and get *FREE FREIGHT!

The Digga PDXH Earth Drill with HALO alignment is suitable for Small Skid Steer Loaders with flow rates of 20 - 50Lpm.

The Auger Drive unit comes as a Bolt On Slide Shift option that allows you to adjust the Drive to your preferred operating position.

Standard** Frames are available to suit:

• Multifit (available in Fixed or Slide Frame)
• New holland L120 is available in Fixed or Slide Frame

The following Frames available as Slide Frame only:

• Bobcat 463/S70

• Huski 4SDK4
• ASV RC30/PT30/RT40

Please Provide the Make and Model of Your Machine in the "Special Instructions For Seller" Section Upon Checkout.

**More Frames are available on request but may incur a surcharge. Please contact us for more details if your machine isn't listed above.

PROUDLY PRODUCED AND MANUFACTURED IN AUSTRALIA

How to choose your "Plug and Play" Package from the Drop Down Menus above.

Step 1 - Select Frame Type.

Step 3 - Select your Auger Size Combos:
E.g. Choose between the Auger Size combinations.

Multi Facet Tungsten (MFT): Flat/Chisel Teeth. Best all-rounder, suitable for hard ground conditions including clay.

What is HALO

Highly visible indicator

Halo features recessed high accuracy inclination green and red LED indicators, which can be clearly seen in daylight. With Halo, there in no need for an in-cab display screen, and no need to take your eyes off the job to realign your auger.



No setup (battery option)

Halo can be connected to the in-cab cigarette lighter, or powered by a magnetised rechargeable battery which will last all day, and can be charged via USB or a 240V wall charger. The battery pack can be attached to the drive hood, frame, machine boom, or placed in-cab.



Set angle of inclination

The battery powered option features a 'zeroing' function which lets the operator set the angle of inclination with the press of a button. This feature is ideal for the installation of shade sails.



Technology

HALO utilises a microprocessor and 6 sensors to provide accurate readings to +/- 0.25 degrees - Even under heavy vibration. Effectively eliminating the need for a spotter with a spirit level. The dust/water proof LED ring is also recessed into the hood to protect it from knocks.



Durable Australian quality

HALO is proudly made in Australia, and has undergone 4 years of development & testing to ensure the unit works faultlessly, and is capable of enduring the rigors of our industry.



Digga PDXH Earth Drill Specifications:

Torque Range: 633 - 1743 Nm
Oil Flow Range: 20 - 50 Lpm
Oil Pressure Range: 60 - 240 Bar
Hub: 65mm Round

Auger Specifications:

Digga 100mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 150mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 200mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 250mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 300mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 350mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 400mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 450mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 600mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth
