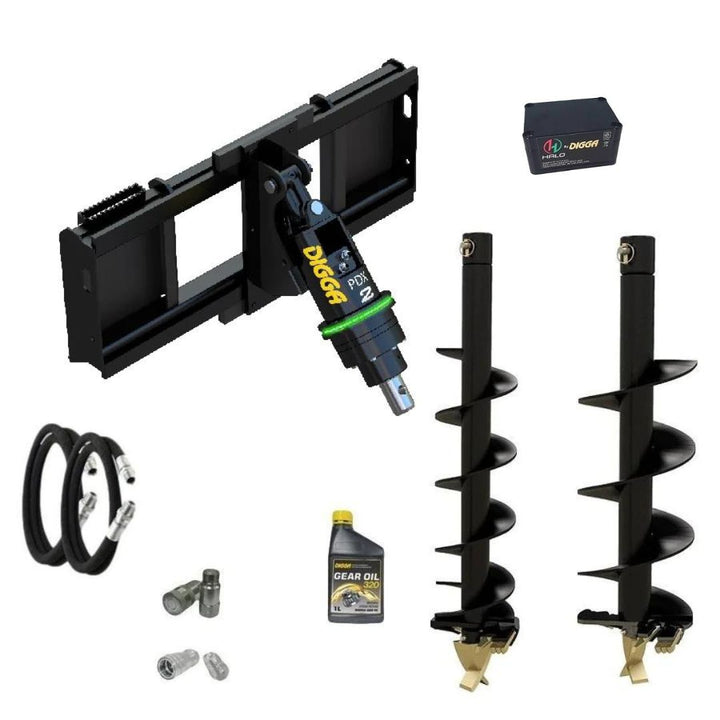

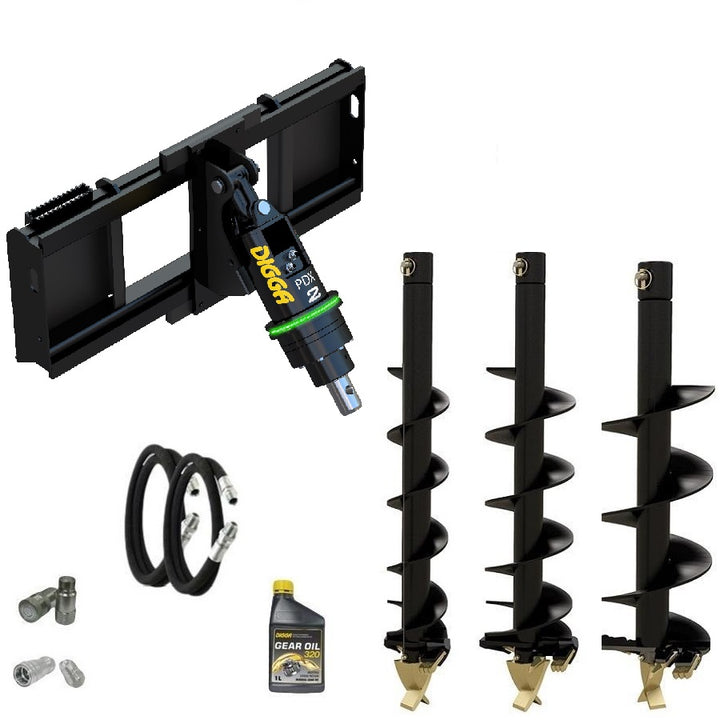

Digga PDXH2 HALO auger drive combo package tractor up to 85Hp

The Digga PDXH2 Earth Drill with HALO alignment is suitable for tractors up to 85 Hp with flow rates between 30 - 50 LPM.

PROUDLY PRODUCED AND MANUFACTURED IN AUSTRALIA

Standard Frames are available to suit:

• Euro Hitch
• Multi Fit (same as a Skid Steer Loader)
• John Deere 200, 300 and 400CX
• Kubota R410 and R420
• Burder 3050, 6050 and 8050
• Nell P118B Front End Load
• Mc Cormack 60-160
• Challenge - Aus Hitch
• New Holland APC27 and APC20 Loader

The Kubota R420S and R520S will incur a surcharge.  Please contact us for more information.

Choose your package of Frame Type, Number of Augers and Type of Augers from the Drop Down Menu above.

Augers are available in 2 different tooth and pilot styles:

Multi Facet Tungsten (MFT): suitable for hard ground conditions including clay
Earth/Rock Combo (RC): suitable for harder ground conditions including fracturable rock, asphalt and concrete.

What is HALO

Highly visible indicator

Halo features recessed high accuracy inclination green and red LED indicators, which can be clearly seen in daylight. With Halo, there in no need for an in-cab display screen, and no need to take your eyes off the job to realign your auger.



No setup (battery option)

Halo can be connected to the in-cab cigarette lighter, or powered by a magnetised rechargeable battery which will last all day, and can be charged via USB or a 240V wall charger. The battery pack can be attached to the drive hood, frame, machine boom, or placed in-cab.



Set angle of inclination

The battery powered option features a 'zeroing' function which lets the operator set the angle of inclination with the press of a button. This feature is ideal for the installation of shade sails.



Technology

HALO utilises a microprocessor and 6 sensors to provide accurate readings to +/- 0.25 degrees - Even under heavy vibration. Effectively eliminating the need for a spotter with a spirit level. The dust/water proof LED ring is also recessed into the hood to protect it from knocks.



Durable Australian quality

HALO is proudly made in Australia, and has undergone 4 years of development & testing to ensure the unit works faultlessly, and is capable of enduring the rigors of our industry.



Digga PDXH2 Earth Drill Specifications:

Torque Range: 987 - 2307 Nm
Oil Flow Range: 30 - 50 Lpm
Oil Pressure Range: 60 - 240 Bar
Hub: 65mm Round

Auger Specifications:

Digga 150mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 225mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 250mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 300mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 350mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 450mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Digga 600mm A4 Auger:
Overall Length 1250mm
65mm Round Hub
Padloc Lock-in Teeth

Pick up available from Brisbane, Gold Coast, Sydney or Melbourne
Freight available Australia wide.
