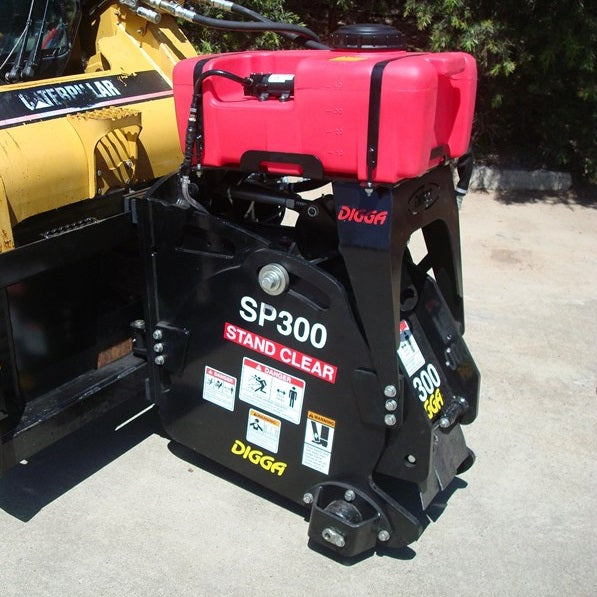

Digga Profila SP300
For Standard Flow Skid Steers
Machine suitability: Skid Steer Loaders. Mulitfit and CAT models only.
The Profila SP300 is used for planing (mill) rock, concrete and asphalt. Water nozzle kit for dust suppression supplied as standard (water tank not included).
*This product is built to order. Please request build time and delivery dates for this product before purchace.
Price Inclusions:
Profiler, Built In Frame, Electrics, Hydraulic Hoses & Couplers
Options:
1. 50L Water Tank Kit - Attachment Mounted

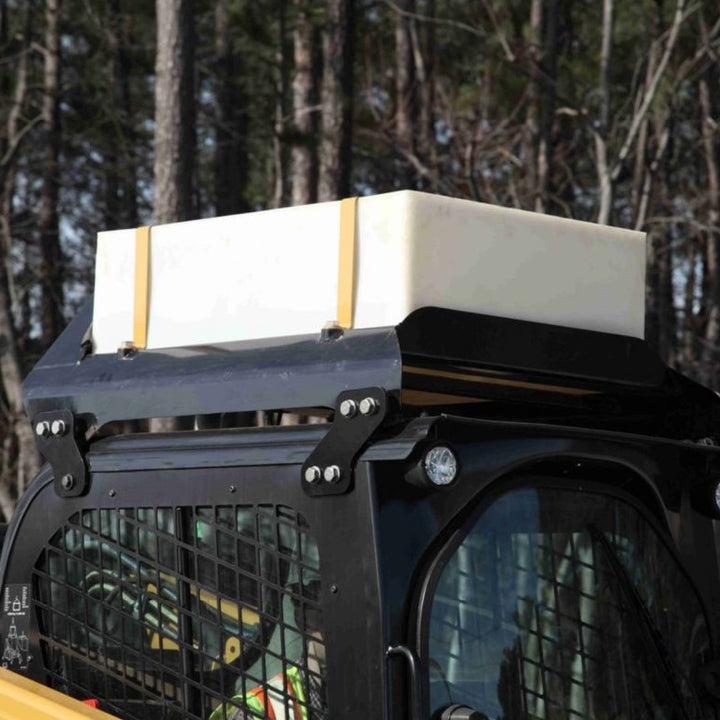

2. 110L Roof Mounted Water Tank Kit. Plug and Play. Includes Hoses and Electrics.
Features:
Digga Planetary high torque drive.
All-purpose picks for use on both asphalt and concrete.
Independent self-levelling depth adjustment.
Manual depth and tilt options.
Ergonomic electro-hydraulic control joystick for depth, tilt and side shift (optional).
Water nozzle kit for dust suppression supplied as standard (water tank not included).
Solid hardened steel wheels with greaseable manifold pins and secluded greased zerks.
300mm standard drum.

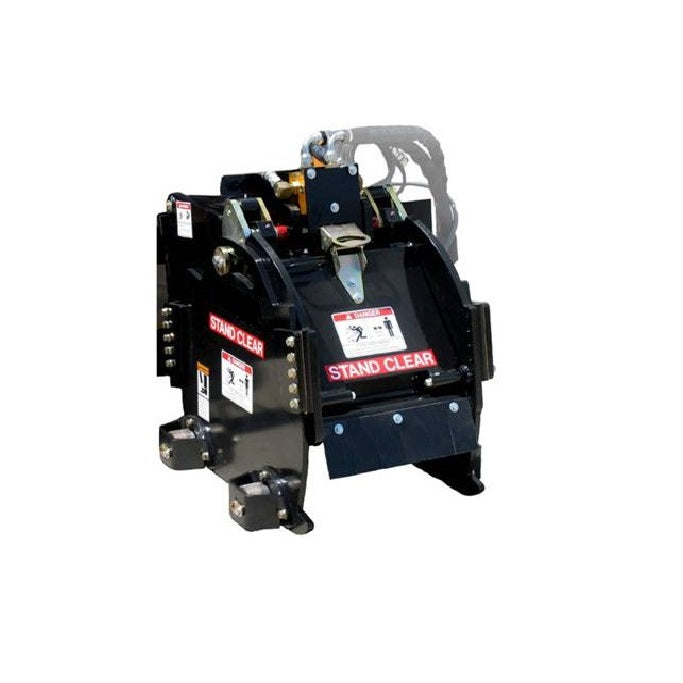

Also available in HP450 & HP600 for High Flow Skid Steers.
| Specifications | SP300 |
|---|---|
| Machine | Skid Steer Loaders |
| Weight (Kgs) | 680 |
| Length (Overall) | 1110 |
| Width (Overall) | 1320 |
| Height (Overall) | 816 |
| Planing Width | 305 |
| Planing Depth | 0 - 127mm |
| Drum Diameter | 482 |
| Number of picks (std drum) | 37 |
| Hydraulic Flow Required - LOW | NOT APPLICABLE |
| Hydraulic Flow Required - STD | 45 - 84 LPM |
| Hydraulic Flow Required - HIGH | NOT APPLICABLE |
| Operating Pressure (BAR) | 170 - 240 |
| HP Range - LOW FLOW | NOT APPLICABLE |
| HP Range - STD FLOW | 25 - 33HP |
| HP Range - HIGH FLOW | NOT APPLICABLE |
| Tilt | 11 degrees |
| Side Shift (centre to right) | 0- 482mm |
| Water Tank Options |
No Water Tank, 50L Water Tank (Attachment Mounted), 110L Roof Mounted Water Tank (Plug & Play) |
|---|
