NOTE: Due to high demand on the Digga 6 in 1 Bucket please call us on 0459 WAREHOUSE (that's 0459927346) prior to placing your order.

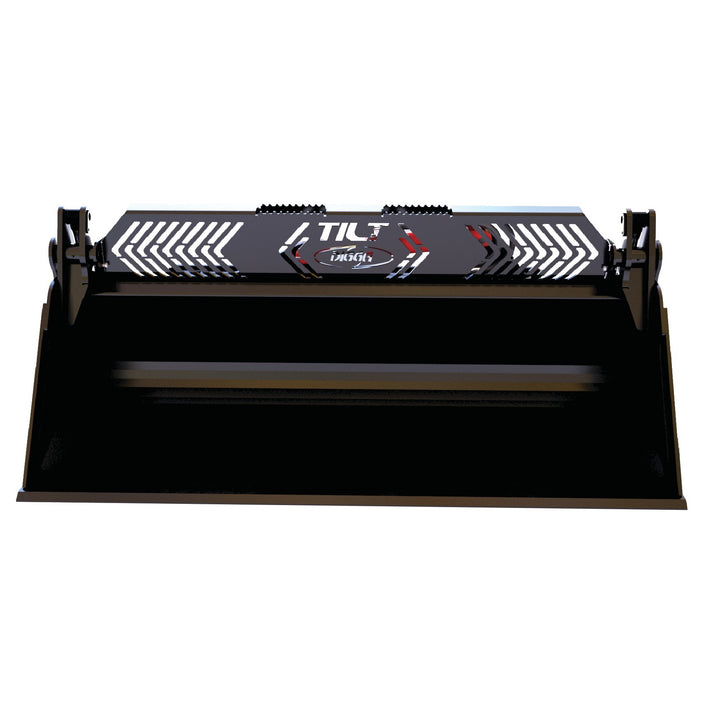

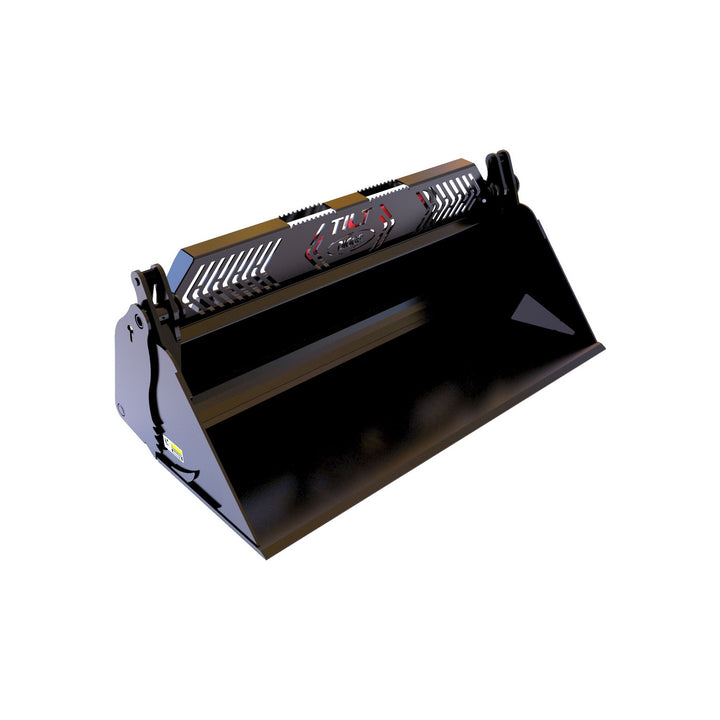

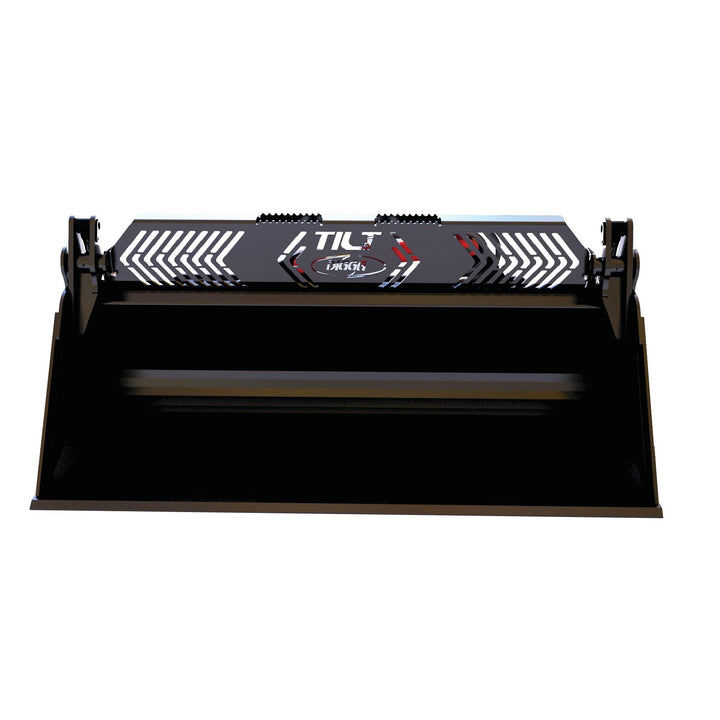

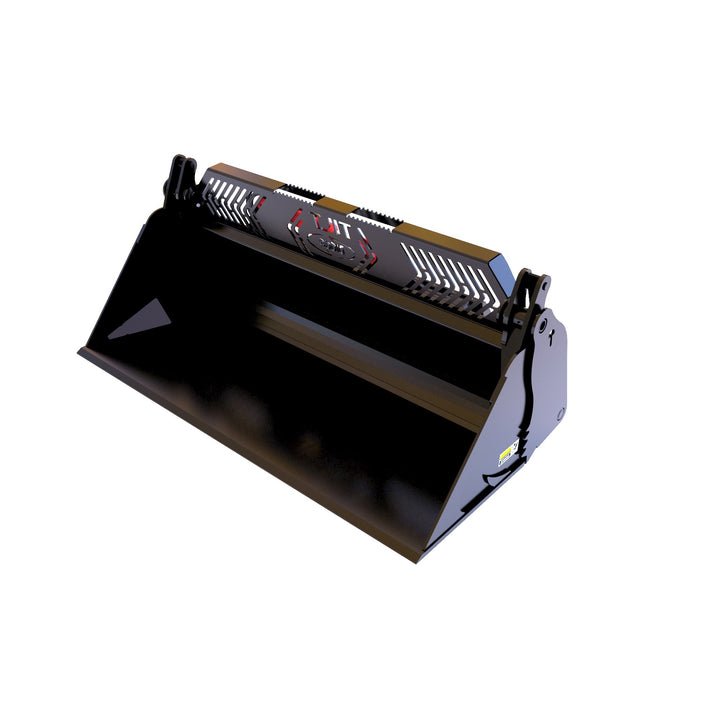

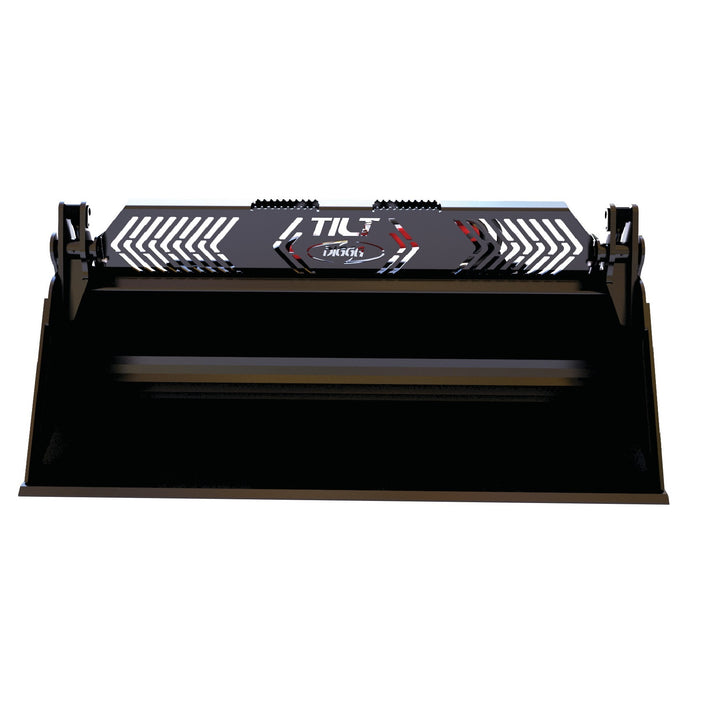

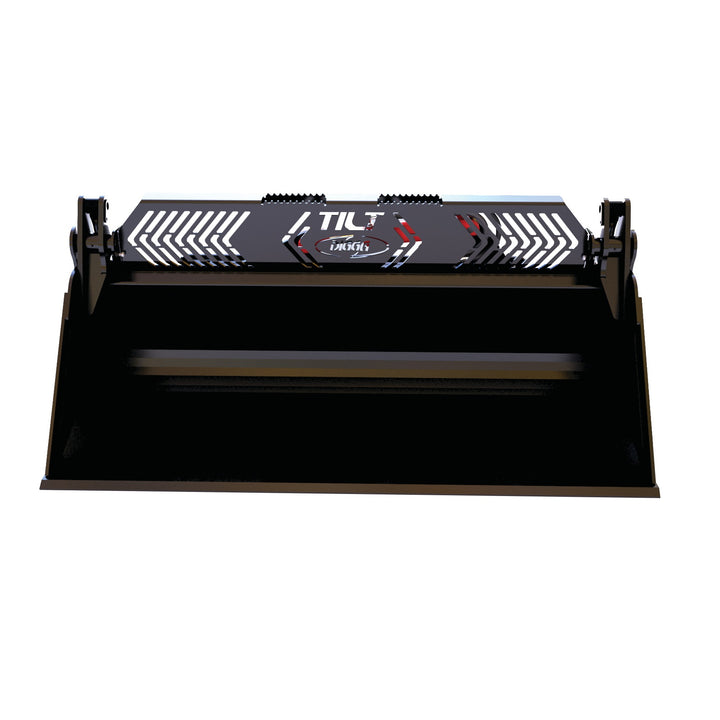

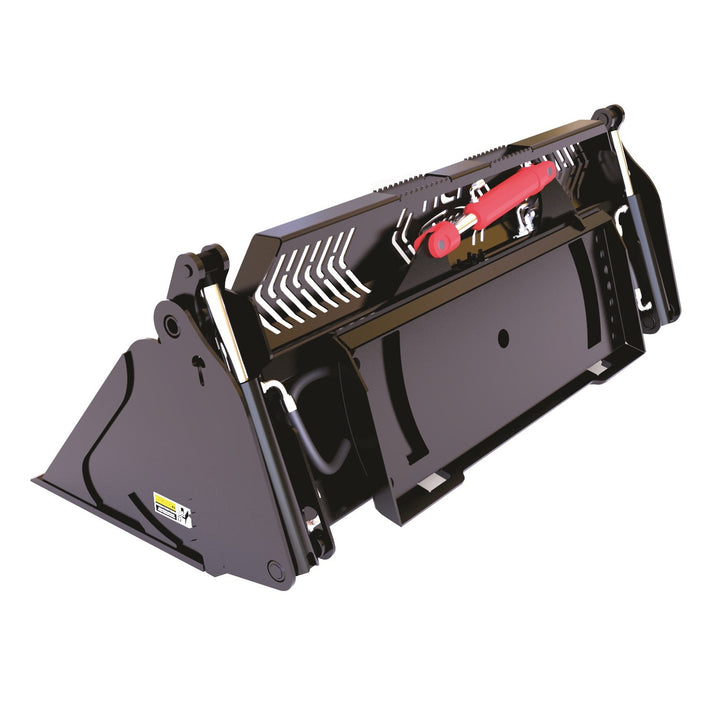

Digga Tilting 6 in 1 Bucket
Machine Suitability: Available for most machine types (Multi Fit STD).
Standard Range: Low Cut Grill /1600mm - 1727mm / Standard Floor

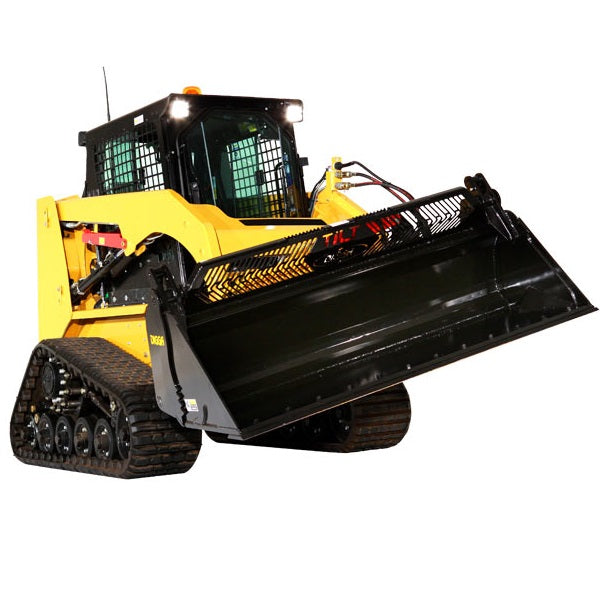

Providing the operator with full radial control of the cutting angle, the slim line tilt frame design minimizes additional weight & distance from the machine, maximizing the full lift capacity.
Price Inclusions:
Bucket, Lock Valve, 3m Harness with 2 Pin Deutch Plug, Hoses & Couplers
*This product is made to order. Please contact us for current build and delivery times before purchase.
Teeth and Cutting Edge Options:
- Chisel or Tiger Teeth (5 - 11)
- B.O.E (Cutting Edge) - x1 Front
- B.O.E (Cutting Edge) - x3 Front, Dozer and Rear
Electrics (Purchased Separately)
- Electrics for Skid Steer Loaders with 8 Pin Service Plug
- Electrics for Skid Steer Loaders with 14 Pin Service Plug
- Plug & Play Kit for Skid Steer Loaders with No Service Plug
- Plug and Play Kit for BobCat Machines.
*Electrics must be purchased separately. Please Click Here.

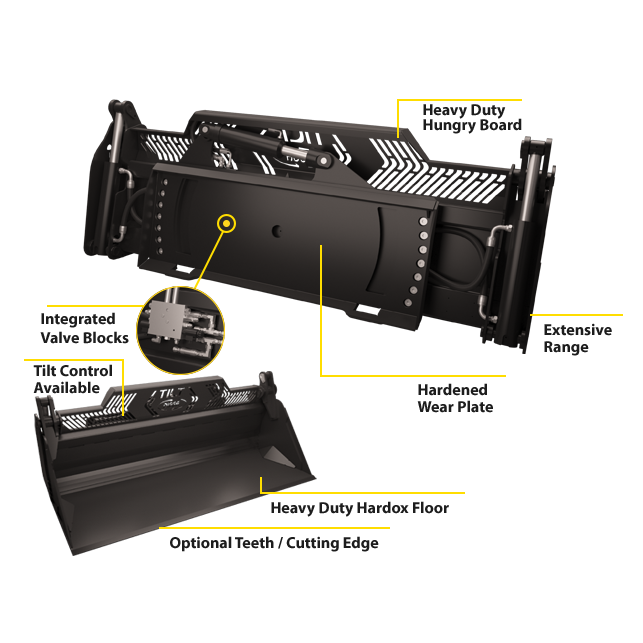

Features:
- Fully enclosed, integrated valve blocks, with built in locking valve.

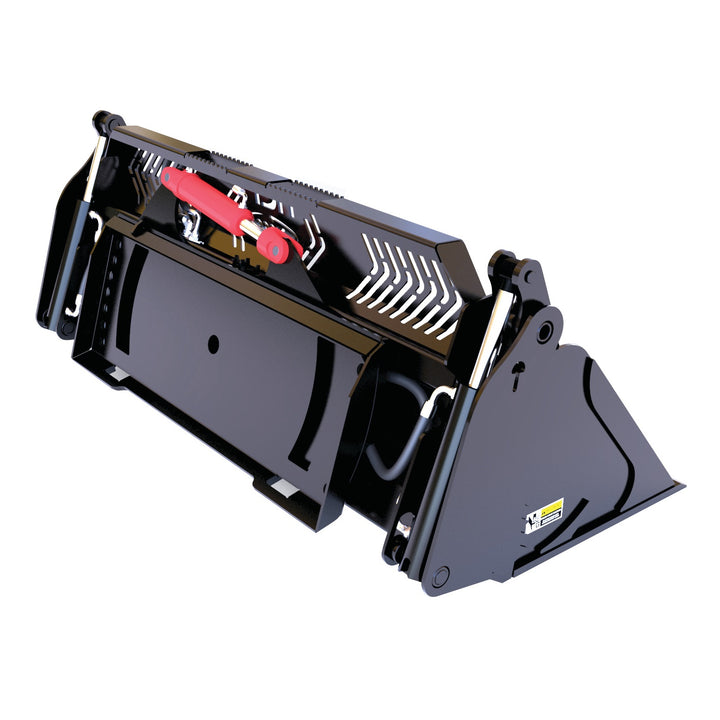

- Hydraulic ram geometry creates exceptional tilting forces.
- Hardened wear plate to increase wear life of moving parts of the tilt mechanism.
| Standard | 1600 | 1650 | 1680 | 1727 |
|---|---|---|---|---|
| Depth (Bucket Closed) | 826 | 826 | 826 | 826 |
| Bucket Cutting Width | 1600mm | 1650mm | 1680mm | 1727mm |
| Height | 729 | 729 | 729 | 729 |
| Weight (No bolt-on blade) | 492kg | 500kg | 510kg | 520kg |
| Struck Volume | 0.22 m³ | 0.23 m³ | 0.23 m³ | 0.24 m³ |
| Heaped Volume | 0.29 m³ | 0.30 m³ | 0.31 m³ | 0.32 m³ |
| Model |
1600mm Standard Tilting Bucket, 1650mm Standard Tilting Bucket, 1680mm Standard Tilting Bucket, 1727mm Standard Tilting Bucket |
|---|---|
| Teeth and Cutting Edges |
Bucket Only, Add BOE x1 - Front, Add BOE x3 - Front / Dozer / Rear, Add 5 Chisel Teeth, Add 5 Tiger Teeth, Add 6 Chisel Teeth, Add 6 Tiger Teeth, Add 7 Chisel Teeth, Add 7 Tiger Teeth, Add 8 Chisel Teeth, Add 8 Tiger Teeth, Add 9 Chisel Teeth, Add 9 Tiger Teeth, Add 10 Chisel Teeth, Add 10 Tiger Teeth, Add 11 Chisel Teeth, Add 11 Tiger Teeth |
