EarthQuake Fixed Concrete Pulveriser for Excavators

Fixed Concrete Pulverisers are also known as demolition pulveriser, hydraulic crusher, concrete crushers or concrete processor.

EarthQuake Fixed Concrete Pulverisers are primarily used for:

• Secondary Demolition and Recycling:

  • They excel at breaking down larger concrete chunks produced during initial demolition into smaller, more manageable pieces.

  • This facilitates easier separation of concrete from rebar, preparing the material for recycling or further processing.
  • In-built steel shears for cutting of rebar.
  • Used to break-down in situ concrete slabs.



• Material Reduction:

  • Pulverisers significantly reduce the volume of concrete debris, minimising transportation costs and maximising space on-site.

Speed-Valve Technology Advantage

Speed-Valve Technology is an advanced hydraulic system designed to dramatically boost the efficiency and productivity of our hydraulic pulverisers. By optimizing hydraulic fluid flow, this innovative system accelerates jaw opening and closing times during demolition tasks.

This translates to:

• Faster Cycle Times: Reduced downtime between operations, allowing for more work to be completed in less time.
• Smoother Operation: Consistent and predictable performance minimizes delays and interruptions.
• Increased Productivity: Enhanced efficiency leads to significant cost-savings on the job site.
• Extended Lifespan: Optimized fluid dynamics reduce stress on components, prolonging the attachment's service life.

This technology provides a clear competitive advantage, delivering faster, more efficient, and more cost-effective demolition operations.

Concrete Pulverisers play a crucial role in the recycling process of concrete by breaking it down into a usable form.

The term Fixed means that the hitch does not rotate. The Hitch is bolted directly to the frame of the pulveriser.

The EarthQuake Fixed Concrete Pulverisers include:

• Double Pin Hitch to suit carrier machine
• Hoses and Fittings (hydraulic quick connectors are not included or recommended)
• Toolbox including spare nut and bolts, feeler gauge and accessories
• Grease gun and grease
• Spare set of steel shear blades

Earthquake Fixed Concrete Pulverisers come in a variety of sizes to suit mini excavators from 2 tonnes to excavators up to 38 Tonnes.

Model: EQ-FCP3

Weight (kg) 150
Length (mm) 770
Width (mm) 220
Opening Width (mm) 0-300
Crushing Power (kN) 196
Carrier Weight (tonnes) 2-4
Flow (lpm): 30-60
Pressure (Bar) 200-250
Rebar Max Cut (mm): 15

Model: EQ-FCP8

Weight (kg) 490
Length (mm) 1225
Width (mm) 350
Opening Width (mm) 0-480
Crushing Power (kN) 588
Carrier Weight (tonnes) 4.5-10
Flow (lpm): 80-100
Pressure (Bar) 220-280
Rebar Max Cut (mm): 25

Model: EQ-FCP14

Weight (kg) 1000
Length (mm) 1600
Width (mm) 415
Opening Width (mm) 0-630
Crushing Power (kN) 774
Carrier Weight (tonnes) 10-16
Flow (lpm): 100-180
Pressure (Bar) 280-320
Rebar Max Cut (mm): 50

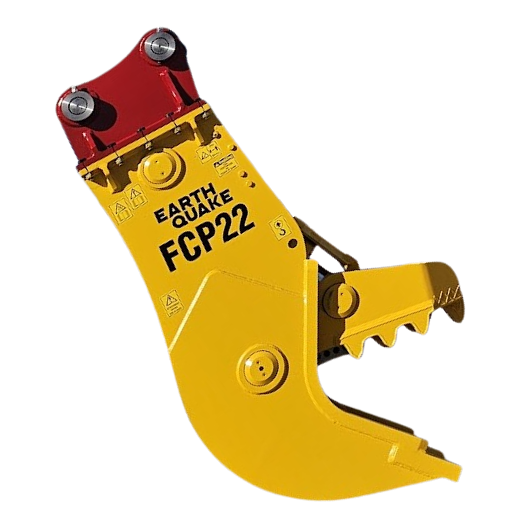

Model: EQ-FCP22

Weight (kg) 2050
Length (mm) 2070
Width (mm) 550
Opening Width (mm) 0-850
Crushing Power (kN) 1127
Carrier Weight (tonnes) 18-27
Flow (lpm): 180-220
Pressure (Bar) 280-320
Rebar Max Cut (mm): 55

Model: EQ-FCP32

Weight (kg) 2850
Length (mm) 2400
Width (mm) 605
Opening Width (mm) 0-1000
Crushing Power (kN) 1500
Carrier Weight (tonnes) 28-38
Flow (lpm): 220-280
Pressure (Bar) 280-320
Rebar Max Cut (mm): 60

How do Fixed Concrete Pulverisers work?

The Earthquake Fixed Concrete Pulverisers are powerful demolition tools designed to crush concrete and other hard materials. Here's a breakdown of how they work:

• Hydraulic Power: These pulverizers are typically attached to excavators and powered by the excavator's hydraulic system.
• Jaw Mechanism: The core of the pulverizer is a pair of jaws:
  • Fixed Jaw: One jaw remains stationary.
  • Moving Jaw: The other jaw moves towards the fixed jaw, creating a crushing force.
• Crushing Action:
  1. The excavator positions the pulverizer against the concrete.
  2. The hydraulic system activates, driving the moving jaw towards the fixed jaw.
  3. The concrete is trapped between the jaws and crushed into smaller pieces.
  4. The jaws then open, allowing the crushed material to fall away.

Key Features:

• Powerful Crushing Force: They generate significant force to break down even the toughest concrete.
• Versatility: Can handle a wide range of materials, including reinforced concrete, bricks, and other debris.
• Efficiency: Reduce material volume significantly, making it easier to transport and dispose of.
• Safety: Can be used in confined spaces where other demolition methods might be impractical or dangerous.

Applications:

• Demolition: Used in various demolition projects, including building deconstruction, roadwork, and infrastructure removal.
• Recycling: Can help prepare materials for recycling by reducing them to manageable sizes.

Attention!

Made to order - This item is not held in-stock.

Earthquake Fixed Concrete Pulverisers are made to order. Production time is usually between 4 and 6 weeks depending on the attachment.

On the Price Request form please make sure to add your machine make and model.

Contact us on 0459 WAREHOUSE (That's 0459 927 346).
