EarthQuake Orange Peel Grapples

Orange peel grapples are multi-tine gripping devices designed for efficient handling of various bulk materials. Their name comes from their resemblance to the segmented peel of an orange, with multiple tines or jaws that open and close to grasp and hold material.

The Earthquake Orange Peel Grapples are availalble in 4 sizes suit carriers from 12 to 45 tonnes.

Key Uses and Functions:

• Material Handling: The Earthquake orange peel grapples are primarily used for handling large quantities of bulk materials, including:

  • Scrap metal (ferrous and non-ferrous)
  • Demolition debris
  • Construction waste
  • Wood chips
  • Tyres
  • Solid waste

• Loading and Unloading: They are highly effective for loading and unloading materials from trucks, ships, and hoppers.

• Sorting and Segregation: The independent movement of each tine allows for selective picking and sorting of materials.

• Stockpiling and Reclamation: Orange peel grapples can be used to create and reclaim stockpiles of materials.

Advantages of Using Orange Peel Grapples:

• High Capacity: They can handle large volumes of material quickly and efficiently.
• Versatility: Suitable for a wide range of materials and applications.
• Improved Safety: Reduce the need for manual handling, minimizing the risk of injuries.
• Cost-Effectiveness: Increase productivity and reduce labour costs.
• Durability: Built to withstand heavy-duty use.

Typical Applications:

• Scrap Yards: Loading, unloading, and sorting scrap metal.
• Recycling Centers: Handling various recyclable materials.
• Construction Sites: Clearing debris and moving construction materials.
• Waste Management Facilities: Handling solid waste and recyclable materials.
• Logging Operations: Handling wood chips and timber.

Specifications:

Model: OPG14

Capacity (Ltr)  400
Carrier Weight (ton)   12-18
Weight (kg)  680
Opening Width (mm)  1,700
Closed Width (mm)  1,142
Opening Height (mm)  1,192
Closed Height (mm)  1,464

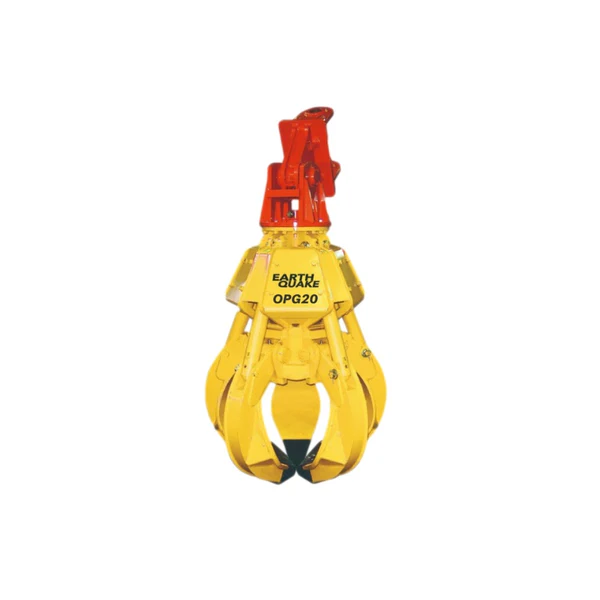

Model: OPG20

Capacity (Ltr) 500
Carrier Weight (ton) 18-25
Weight (kg) 865
Opening Width (mm) 1,820
Closed Width (mm) 1,268
Opening Height (mm) 1,291
Closed Height (mm) 1,567

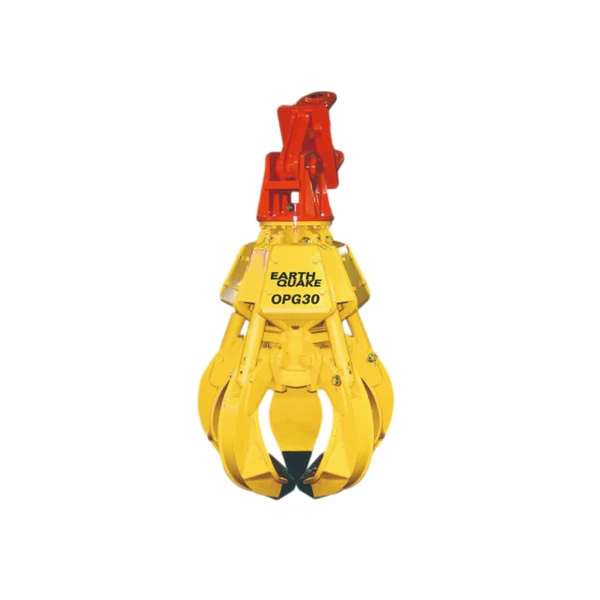

Model: OPG30

Capacity (Ltr) 700
Carrier Weight (ton) 25-32
Weight (kg) 1,120
Opening Width (mm) 2,000
Closed Width (mm) 1,486
Opening Height (mm) 1,443
Closed Height (mm) 1,751

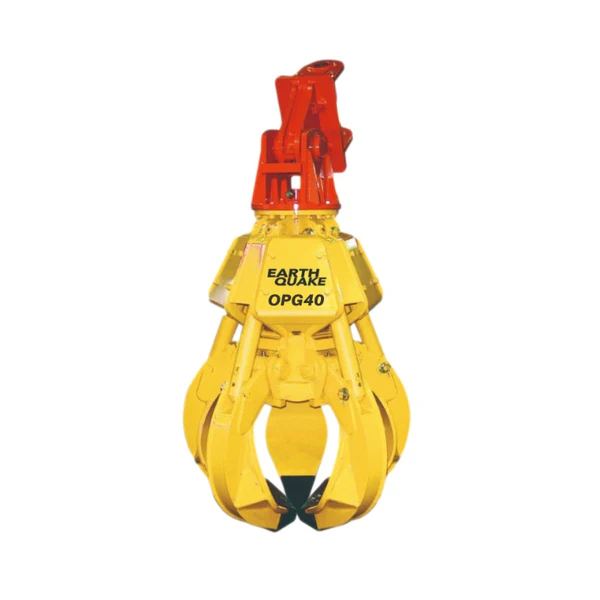

Model: OPG40

Capacity (Ltr) 900
Carrier Weight (ton) 32-45
Weight (kg) 1,610
Opening Width (mm) 2,360
Closed Width (mm) 1,774
Opening Height (mm) 1,691
Closed Height (mm) 2,037

Overall, the Earthquake orange peel grapples are versatile and efficient tools for handling bulk materials in a variety of industries. Their ability to handle large volumes, improve safety, and reduce costs makes them a valuable asset for businesses and operations that deal with significant amounts of material.

Attention!

Made to order - This item is not held in-stock.

Earthquake Orange Peel Grapples are made to order. Production time is usually between 4 and 6 weeks depending on the attachment. On the Price Request form please make sure to add your machine make and model.
