EarthQuake Rotating Multi-Processor

EarthQuake Rotating Multi-Processors

Rotating Multi-Processors (RMPs) are specialised pieces of heavy equipment designed to reduce the size and volume of various materials. They are commonly used in demolition where they are considered the primary demolition attachment with the added benefit of being able to rotate, 360 degrees, to get to the desired angle of the product being demolished. They also contain cutting shears for cutting through the reinforcing steel in concrete.

Key Uses and Functions:

• DEMOLITION: RMPs are primarily used to reduce the size of large pieces of concrete in the demolition process of structures and  buildings, and can also be used to: Resize concrete, Asphalt, Bricks, Rock, Other construction and demolition waste

• Material Processing: They can process materials for various purposes, including:

  • Recycling: Preparing materials for reuse in construction or other applications.
  • Steel Shearing: Integrated steel shears when reinforcing steel is present.


How RMPs Work:

RMPs use a pincer style movement using high power hydraulic cylinders pushing the pulverisor jaws to close under immense force.

• Impact: Point loading of the material causes it to fracture and break.
• Shearing: Cut through steel re bar.
• Attrition: Fast cycle times increase productivity.

Advantages of Using RMPs:

• Size Reduction: Significantly reduce the size and volume of materials.
• Increased Efficiency: Process large volumes of material quickly and efficiently.
• Improved Material Handling: Smaller material size makes it easier to load, transport, and handle.
• Cost Savings: Reduce transportation and disposal costs.
• Environmental Benefits: Reduce landfill waste and promote material recycling.

Typical Applications:

• Construction and Demolition: Processing concrete, asphalt, and other debris from construction and demolition sites.
• Recycling Centers: Processing recyclable materials such as concrete, asphalt, and bricks.

Overall, Rotating Multi-Processors are powerful and versatile machines that play a crucial role in material processing and recycling. Their ability to reduce material size, improve efficiency, and minimize waste makes them valuable assets for various industries.

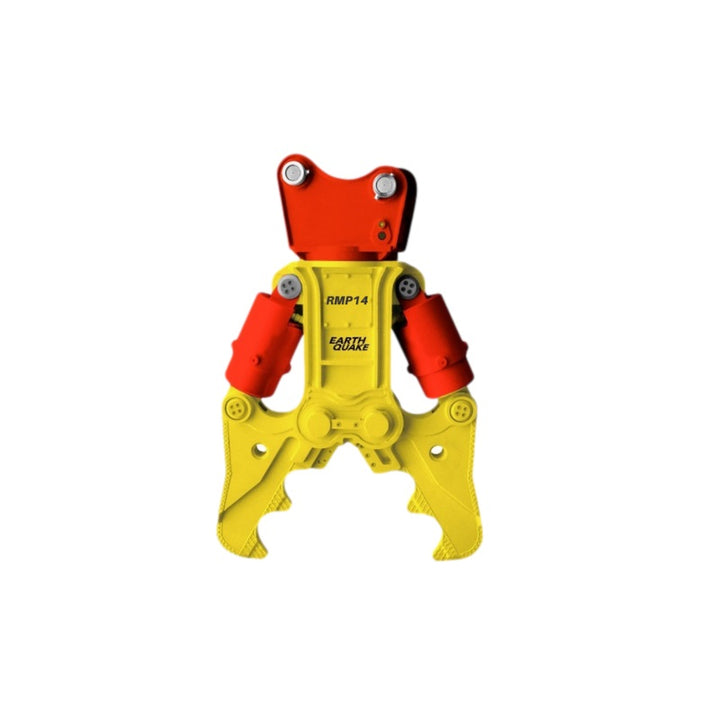

Model: EQ-RMP14

Weight (kg) 1,100
Length (mm) 1,800
Width (mm) 1,130
MAX Opening Width (mm) 0-750
Crushing Power A (kn) 3,620
Crushing Power B (kn) 1,370
Crushing Power C (kn) 882
Carrier Weight (ton) 10-16
MAX Pressure (kg/cm2) 320
Rotation 360 degrees

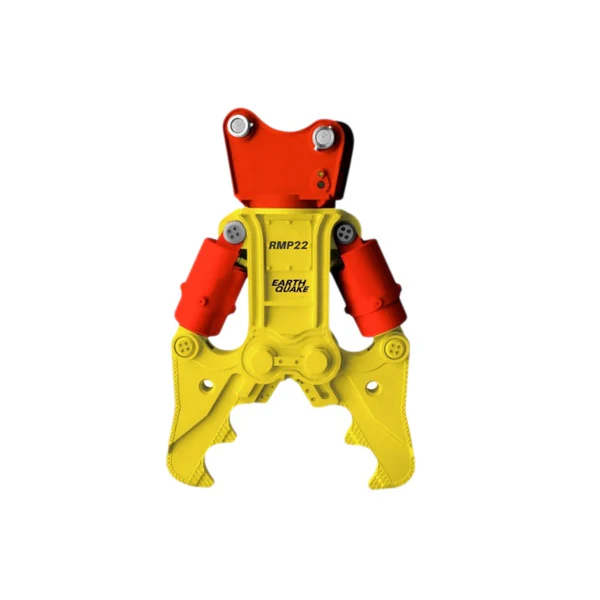

Model: EQ-RMP22

Weight (kg) 1,550
Length (mm) 2,075
Width (mm) 1,267
MAX Opening Width (mm) 0-900
Crushing Power A (kn) 6,311
Crushing Power B (kn) 2,004
Crushing Power C (kn) 1,372
Carrier Weight (ton) 18-24
MAX Pressure (kg/cm2) 300
Rotation 360 degrees

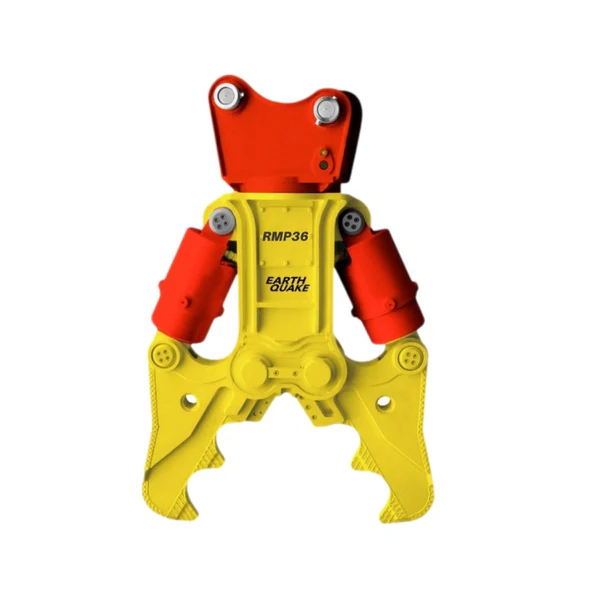

Model: EQ-RMP36

Weight (kg) 2,500
Length (mm) 2,560
Width (mm) 1768
MAX Opening Width (mm) 0-1100
Crushing Power A (kn) 8,820
Crushing Power B (kn) 3,047
Crushing Power C (kn) 1527
Carrier Weight (ton) 28-36
MAX Pressure (kg/cm2) 320
Rotation 360 degrees

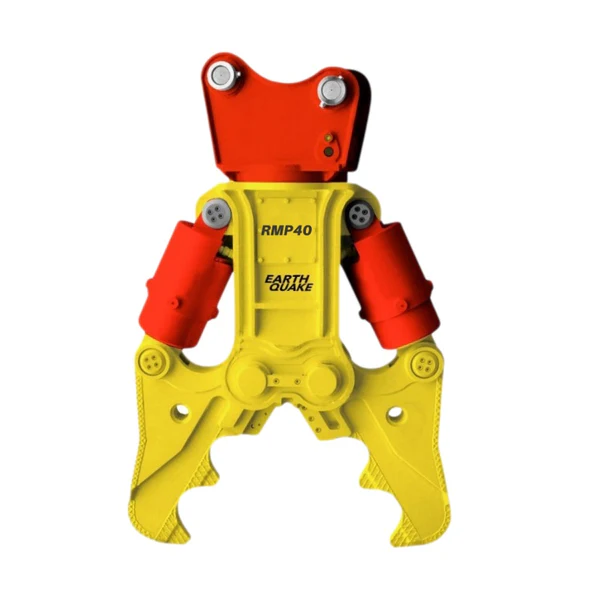

Model: EQ-RMP40

Weight (kg) 4,200
Length (mm) 2,850
Width (mm) 2,350
MAX Opening Width (mm) 0-1400
Crushing Power A (kn) 11,950
Crushing Power B (kn) 5,194
Crushing Power C (kn) 2,744
Carrier Weight (ton) 38-48
MAX Pressure (kg/cm2) 320
Rotation 360 degrees

Overall, The Earthquake Rotating Multi-Processors are powerful and versatile attachments that play a crucial role in demolition, material processing and recycling. Their ability to reduce material size, improve efficiency, and minimize waste makes them valuable assets for various industries.

Attention!

Made to order - This item is not held in-stock.

Earthquake Rotating Multi-Procesors are made to order. Production time is usually between 4 and 6 weeks depending on the attachment. On the Price Request form please make sure to add your machine make and model.

Contact us on 0459 WAREHOUSE (That's 0459 927 346).
