Earthquake Tilt Attach for Skid Steer Loaders

From $8,040.00 AUD
GST is included in price. Shipping calculated at checkout.

Model: CLICK HERE TO CHOOSE OPTION

Model: CLICK HERE TO CHOOSE OPTION
FOR DUAL REMOTE MACHINES WT 1/2” FLUSH FACE COUPLERS
FOR DUAL REMOTE MACHINES WT 1/2” ISO COUPLERS
WITH SOLENOID VALVE FOR SINGLE REMOTE MACHINES - 1/2” FLUSH FACE
WITH SOLENOID VALVE FOR SINGLE REMOTE MACHINES - 1/2” ISO

Electric Kits: CLICK HERE TO CHOOSE OPTION

Electric Kits: CLICK HERE TO CHOOSE OPTION
Electrics for Skid Steer Loaders with 8 Pin Service Plug
Electrics for Skid Steer Loaders with 14 Pin Service Plug
Plug & Play Kit for Skid Steer Loaders with No Service Plug
Plug and Play Kit for Bobcat 7 Pin Machines.
Description

Earthquake Quick Tilt Attach

Machine Suitability: Multi-fit/ Universal skid steer loaders with tipping loads up to 4107kg

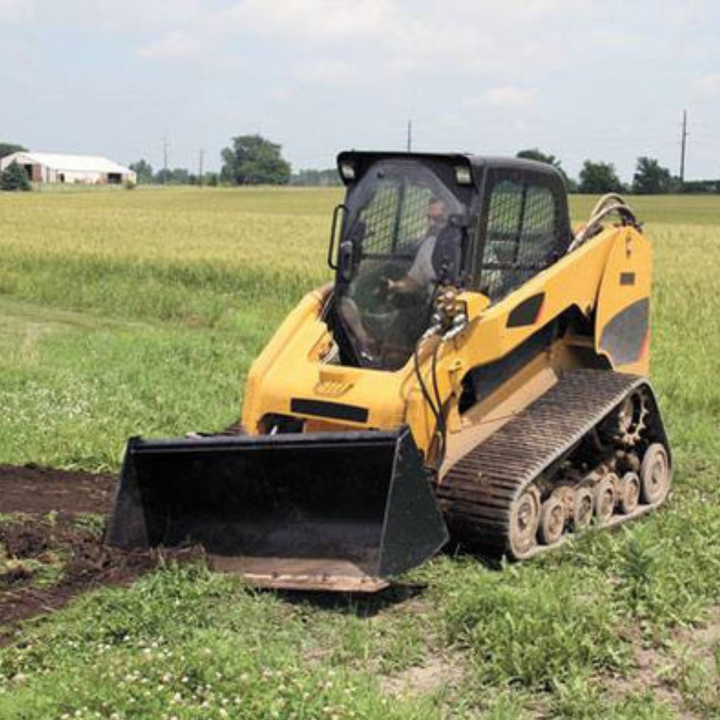

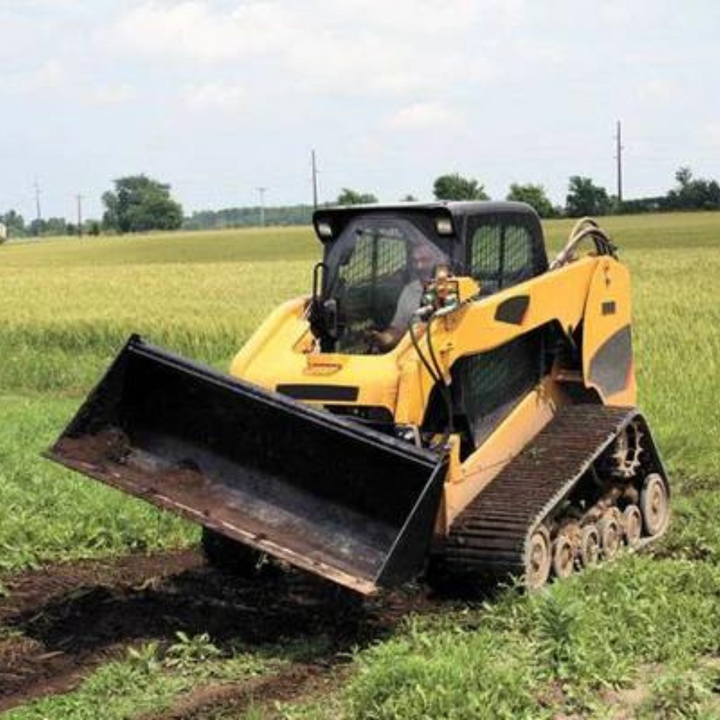

The Earthquake Quick Tilt Attach connects as an adapter between a skid steer loader’s mount frame and its attachment. The tilt function is controlled in cab and allows the Quick Tilt Attach to tilt 17 degrees each way enabling a skid steer to cut grades, ditches, and swales, and keep attachments level on hilly ground. Unlike other tilt attachments, the Quick Tilt Attach design provides the lateral stability and tilting accuracy required for smooth machine-control.

Features:

  • Rotates left or right up to 17 degrees from the skid steer’s horizontal centerline, with equal operation and speed when tilting in either direction
  • Dual cylinder design provides both smooth operation and superior tilting force
  • Perfect for machine control applications using laser or sonic guided equipment
  • Replaceable nylon material at wear points means no grease, minimizing maintenance time and costs
  • Compatible with skid steer quick attach systems and attachments with universal attachment plates
  • Our universal quick attach plates fit most skid steers

Price Inclusions:

QUICK TILT ATTACH, BUILT IN FRAME, 2M HARNESS WT 2 PIN DEUTCH PLUG, HOSES & COUPLERS

Electric Kits (Choose from Dropdown Menu)

- Electrics for Skid Steer Loaders with 8 Pin Service Plug

- Electrics for Skid Steer Loaders with 14 Pin Service Plug

- Plug & Play Kit for Skid Steer Loaders with No Service Plug

- Plug and Play Kit for Bobcat 7 Pin Machines.

Specifications:

Weight 188kg
Width 1452
Height 530
Depth 282mm
Oscillation +/- 17°
Cylinders 2
Cylinder Bore 2.5”
Cylinder Rod 1.25”
Cylinder Stroke 150mm



*This product is built to order and lead times do apply. Please contact us prior to purchase for lead time estimates.

Package Variants
Model

FOR DUAL REMOTE MACHINES WT 1/2” FLUSH FACE COUPLERS, FOR DUAL REMOTE MACHINES WT 1/2” ISO COUPLERS, WITH SOLENOID VALVE FOR SINGLE REMOTE MACHINES - 1/2” FLUSH FACE, WITH SOLENOID VALVE FOR SINGLE REMOTE MACHINES - 1/2” ISO
Electric Kits

Electrics for Skid Steer Loaders with 8 Pin Service Plug, Electrics for Skid Steer Loaders with 14 Pin Service Plug, Plug & Play Kit for Skid Steer Loaders with No Service Plug, Plug and Play Kit for Bobcat 7 Pin Machines.
