Head Brackets Weld-on or Bolt-on 35mm Pins

$535.00 AUD
GST is included in price. Shipping calculated at checkout.

Pin Specs: CLICK HERE TO CHOOSE OPTION

Pin Specs: CLICK HERE TO CHOOSE OPTION
35P/130C/138E
35P/139C/113E
35P/165C/138E
35P/180.5C/126E
35P/185C/144E
35P/200C/148E
Description

Purchase any EarthQuake Weld-on or Bolt-on Head Bracket and get *FREE FREIGHT!

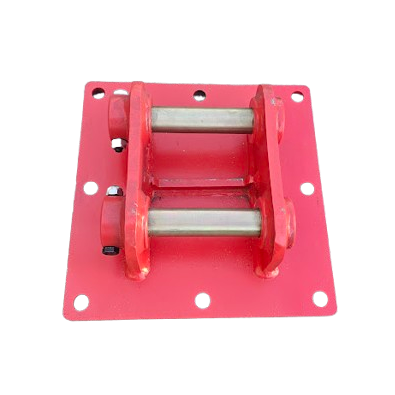

EQ Weld-on or Bolt-on Head Brackets.

Can be welded to or bolted to attachments including spreader bars, brooms, compaction wheels, grader beams etc, or that next new thing you have been working on!

Plate is 320x320x14mm

Head Bracket includes:

  • 1x Bottom Plate
  • 2x Side Plates
  • 1x Gusset
  • 4x Bosses
  • 2x Pins
  • 2x Bolts and Nuts in Pins

Head Bracket is welded and painted and has 8x 17mm diameter holes equispaced.

Suitable for the following machines in numerical order of pin centres

JCB 35P/130C/138E

Kubota 35P/139C/113E

Cat 35P/165C/138E

Kato/Yanmar/Kobelco 35P/180.5C/126E

Hitachi 35P/185C/144E

Komatsu 35P/200C/148E

All hitches may suit other makes and models with the same hitch specs. Check your machines quick hitch pin centre range.

Choose your hitch from the dropdown menu

We ship earthmoving attachments Australia wide. *FREE FREIGHT Terms can be found here.

Package Variants
Pin Specs

35P/130C/138E, 35P/139C/113E, 35P/165C/138E, 35P/180.5C/126E, 35P/185C/144E, 35P/200C/148E
