Log Grapple Heavy Duty Series TG55S
Log excavator grapples are a modern design, allowing wide opening widths & capacity but still allowing very tight closing.
Intermercato log grapples are designed to grip and ACCUMULATE LOGS and the fixed teeth don't bite into logs giving faster bundling & high productivity.
Log grapples are the choice for stacking logs with forwarders, log sorting and often for feeding chippers.
KEY FEATURES:
Add rotator rigid mount or worm drive
Heavy duty
Double guide bars
Optimized roll in/roll out properties
High pressure cylinder with double piston rod seals
HARDOX - high tensile wear resistant steel (400 HB)
Extra reinforced body for rigid mounting - Excavator design

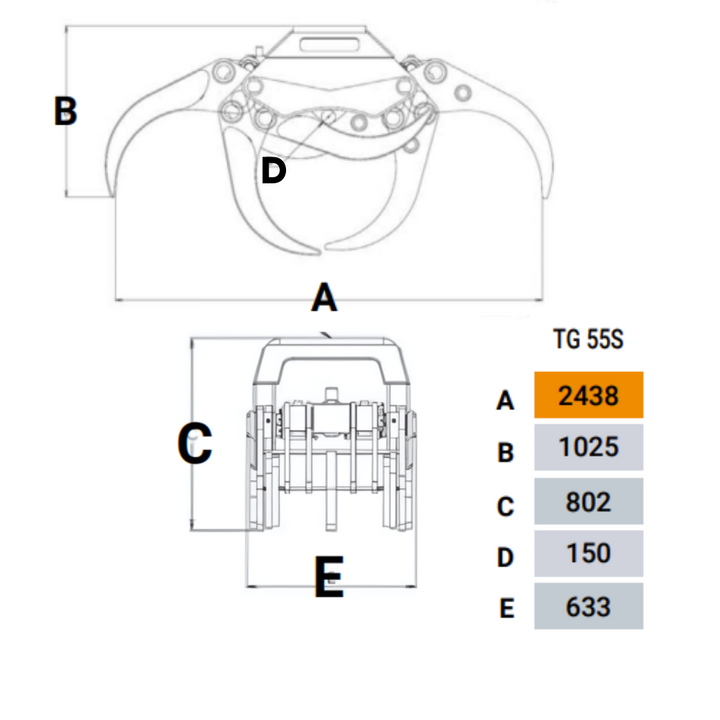

SPECIFICATIONS-
Weight: 628 Kg
Grip Area: 0.65 m2
Pressure: 300 Bar
Flow: 90 l/min
Clamping: 22 kN
Forestry: 30 tm
Capacity: 10 ton
Pendulum: 30 ton
Rigid: 16-22 ton
All Log Excavator Grapples have the following features:
- Belly plate to protect cylinder underneath - designed for minimum downtime.
- Every pin greaseable with protected grease nipples - designed for a long life.
- High clamping forces with oversized pistons - allows secure gripping of any load.
- Excellent bundling geometry - giving rapid productivity.
- All excavator series made from the highest quality steel available - HARDOX.
- Built by a company specializing in excavator grabs and grapples for over 20 years.
All grapples can be matched with Intermercato's line up of 360 degree continuous rotators - RIGID or PENDULUM mounted.
