Intermercato Extreme Duty Log Grab up to 30T

Log Grapple Extreme Duty Series - TG80S

Built for harsh operating environments where finding maintenance personnel is difficult. A special series manufactured for Russian, South East Asian and Australian commercial logging operations.

Intermercato log grab are designed to ACCUMULATE LOGS giving faster bundling & high productivity.

Super strong yoke made of a combination of weldox and hardox for increased durability with extra heavy duty hardox claws

KEY FEATURES:
Add rotator rigid mount or worm drive
Heavy duty
Double guide bars
Optimized roll in/roll out properties
High pressure cylinder with double piston rod seals
HARDOX - high tensile wear resistant steel (400 HB)
Extra reinforced body for  rigid mounting - Excavator design

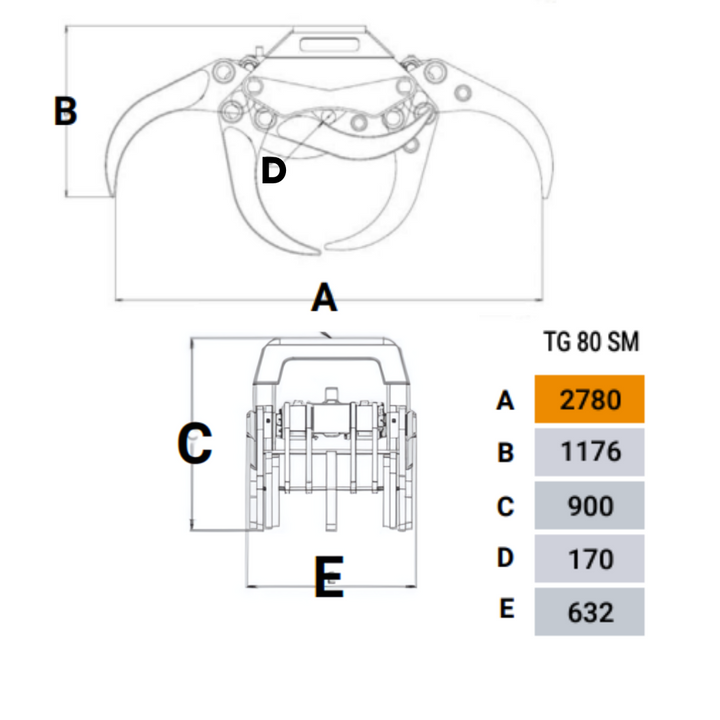

SPECIFICATIONS-
Weight: 980 Kg
Grip Area: 0.80 m2
Pressure: 300 Bar
Flow: 90 l/min
Gripping Force: 26 kN
Forestry: 30 tm
Capacity: 10 ton
Pendulum: 30 ton
Materials Handler: 30 ton

All Log Excavator Grapples have the following features:

• Belly plate to protect cylinder underneath - designed for minimum downtime.
• Every pin greaseable with protected grease nipples - designed for a long life.
• High clamping forces with oversized pistons - allows secure gripping of any load.
• Excellent bundling geometry - giving rapid productivity.
• All excavator series made from the highest quality steel available - HARDOX.
• Built by a company specializing in excavator grabs and grapples for over 20 years.

All grapples can be matched with Intermercato's line up of 360 degree continuous rotators - RIGID or PENDULUM mounted.
