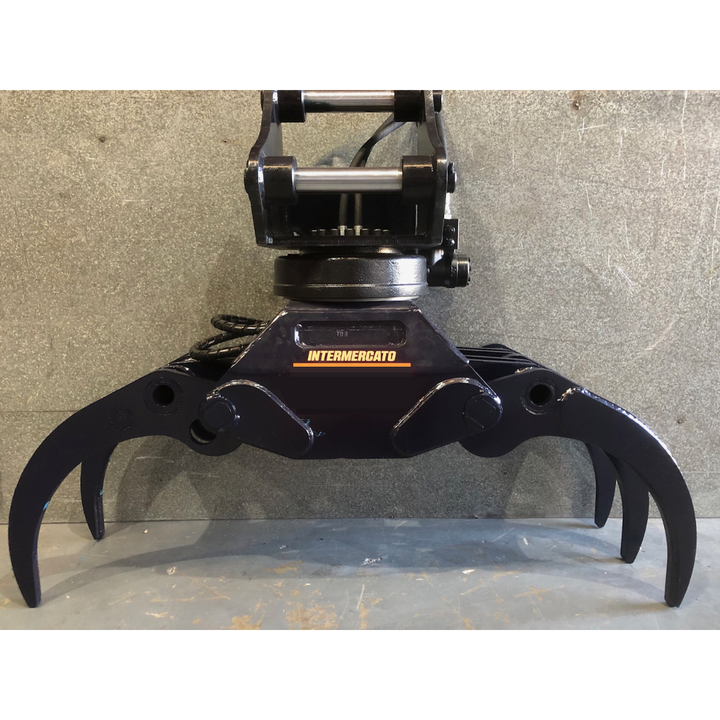

Intermercato Hydraulic Grab 12-16t-with Single Ram

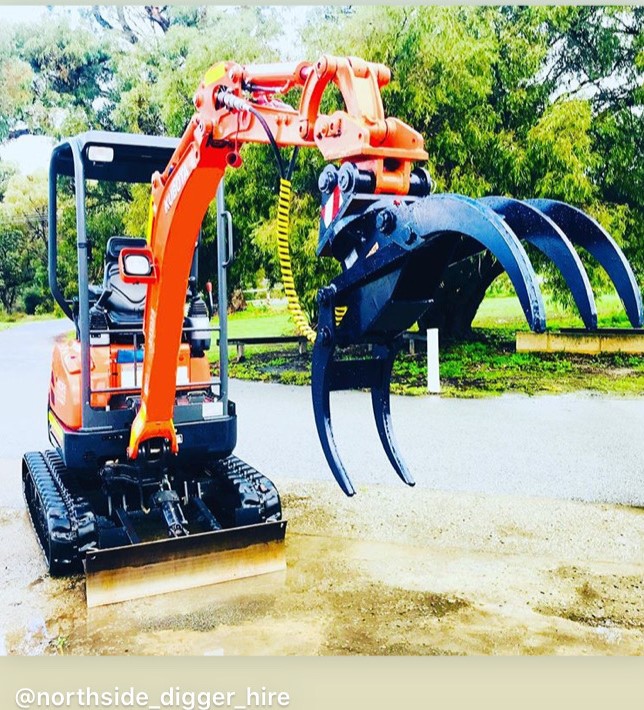

Intermercato five finger grapples are suited to excavators and cranes from 2 tonne to over 30 tonne capacity.

If you work in an ever changing variety of materials, then the five finger grapple series may be the best choice for you.

Many of these grapples combine the best features of other specialist grapples, allowing you to efficiently work day in, day out. Customers use these grapples for all sorts of work including recycling, stone, demolition, logs, forest residue, sorting and bulk material transfer.

All five finger grapples are of the modern bypass design, allowing wide opening widths to pick up large amounts of material and give great capacity but still allowing very tight closing to handle a variety of sizes. Intermercato five finger grapples are designed to give high gripping forces and superior bunching on all materials.

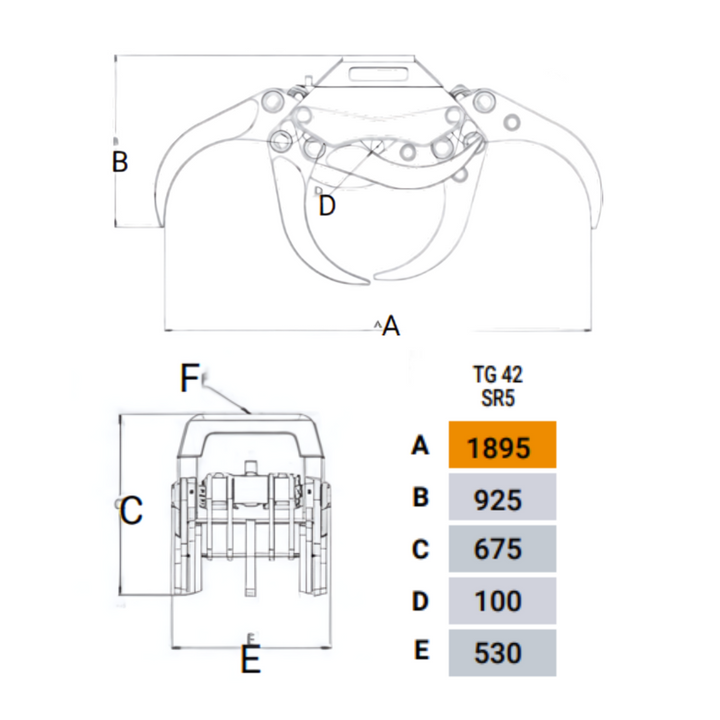

SPECIFICATIONS -
Weight: 480 Kg
Grip Area: 0.50 m2
Pressure: 250 Bar
Flow: 70 l/min
Clamping: 25 kN
Forestry: 25 tm
Capacity: 8 ton
Pendulum: 20 ton
Rigid: 12-16 ton
Forwarder: OK

Why consider a fully HYDRAULIC five finger grapple?

• Full range of motion, same as operating a bucket.
• Couples and uncouples as easily as your bucket - no strut or cylinder plate on your boom.
• No need to modify or weld on to the excavator, weakening it.
• Grapple jaws close evenly to pick up objects easily (not cheap one-arm static design!)
• Rotator can be added later if required for 360 degree rotation of the grapple.
• Grabbing action is always the same as it's independent to your tilt ram.
• Able to be shared between machines with same size coupler.
