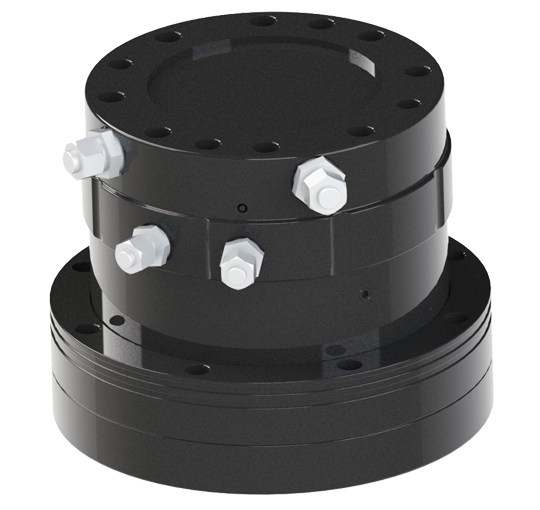

Intermercato Rotator RMR Series 3 - 5.5T

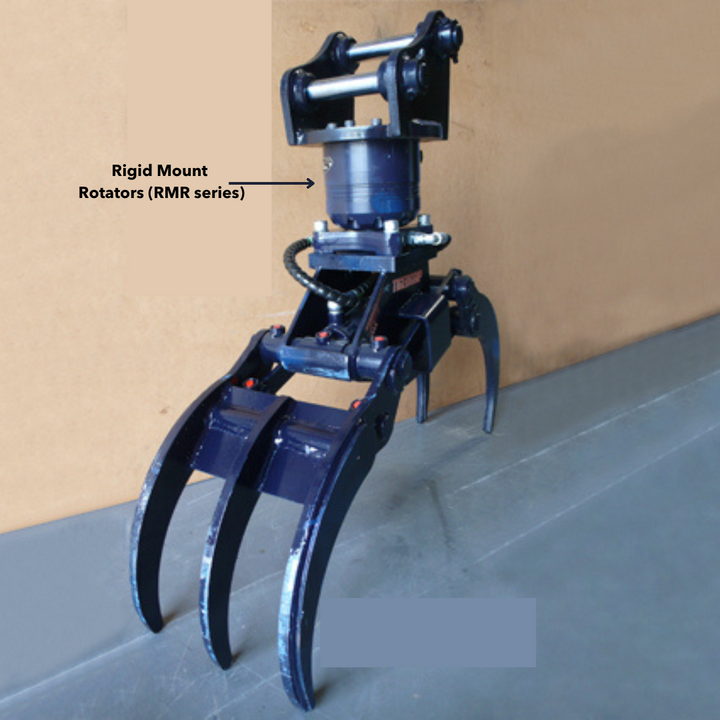

Rigid Mount Rotators

Intermercato Heavy Duty Gerotor Rotators - RMR series, suits excavators of 2-16 tonne operating weight.

RMR series use G-rotor technology to create a compact, high side load withstanding rotator. The axial and radial loading is due to the tapered roller bearing of the dual mounted, forged drive shaft. Designed for high operating pressures of 320 bar.

Fast operating speeds but not designed to hold vertical items steady (such as poles). See geared worm drive rotators for holding items steady in any plane.

RMR are also used as positioning rotators in special applications when pendulum mounted.

SPECIFICATIONS -
Height: 205 mm
Weight: 50 Kg
Static: 7 ton
Pressure: 320 Bar
Flow: 25 l/min
Torque: 2800 Nm
Fittings: 1.5 inch
Pendulum: 14 ton
Rigid: 3-5.6 ton
Bottom Flange PCD: 173/6
Top Flange PCD: 185/8

KEY FEATURES

• Fast operation
• Endless rotation
• High torque

• Steel flange for increased durability
• Ultra compact design
• High Pressure construction
• Forged drive shafts & large tapered foller bearings resit high axial & radial loading.
