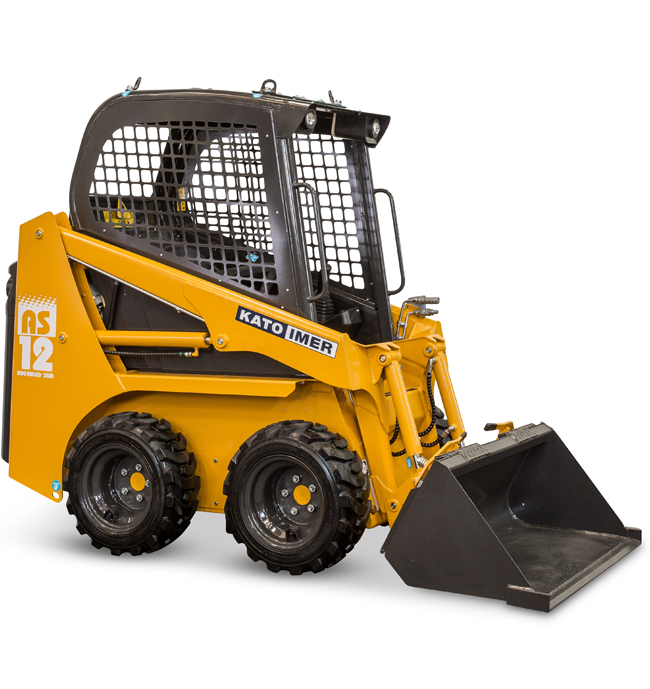

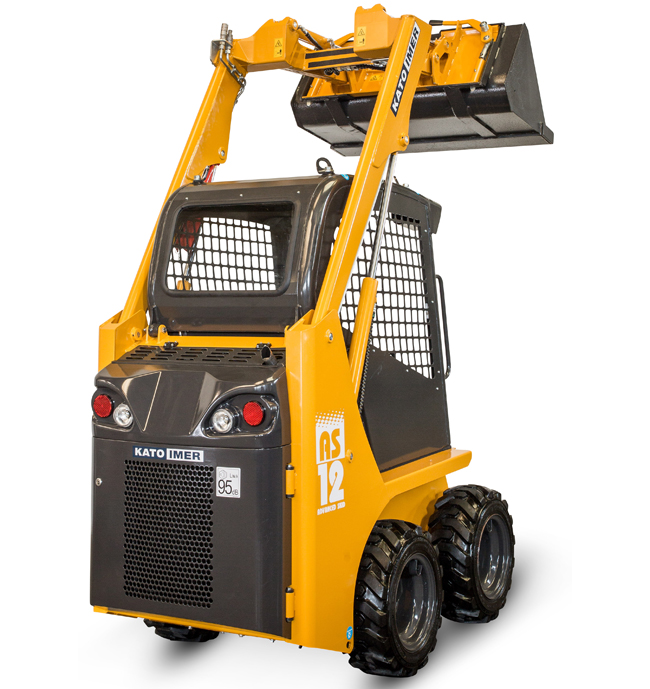

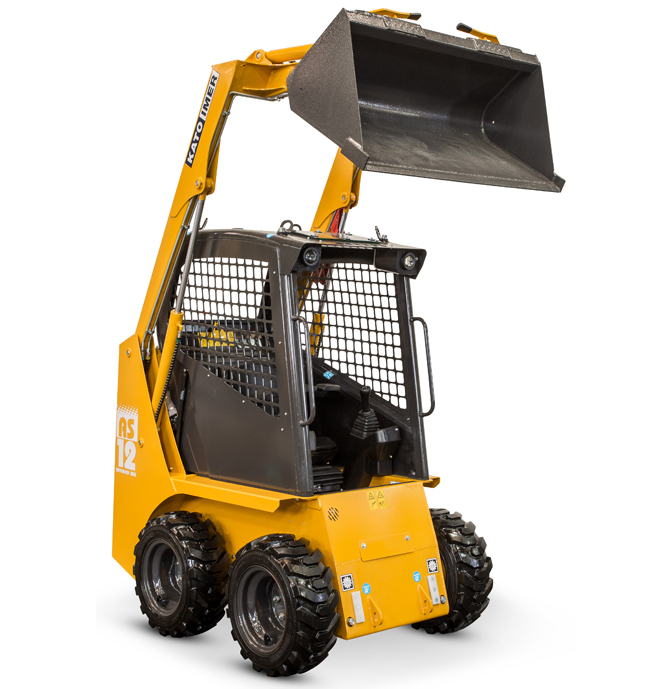

KATO AS12
Compact Skid Steer Loader
Specifications
15.6kW 21hp Yanmar 3TNV76 Engine
Option of Open Cabin or Closed Air Conditioned Cabin
Pilot Control Joysticks (NO Foot Peddles)
ROPS/FOPS Certified
Auxiliary Flow 35 L/pm
1300kg Open Cab Operating weight
1116mm - Width standard tyres
960mm - Width narrow tyres
1877mm - Overall height
2596mm - Overall length (with bucket)
Fuel tank capacity - 20L
3 Years/3000 Hours Warranty
Comfortable Operator room and easy manipulation

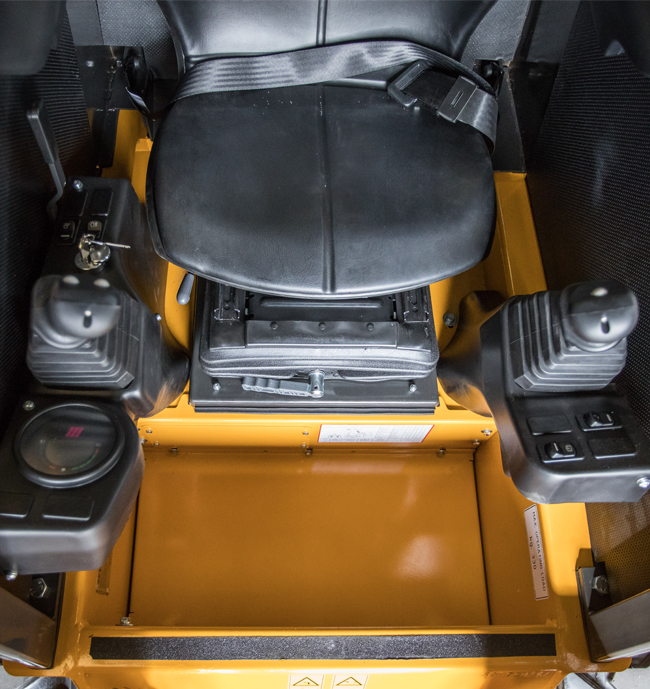

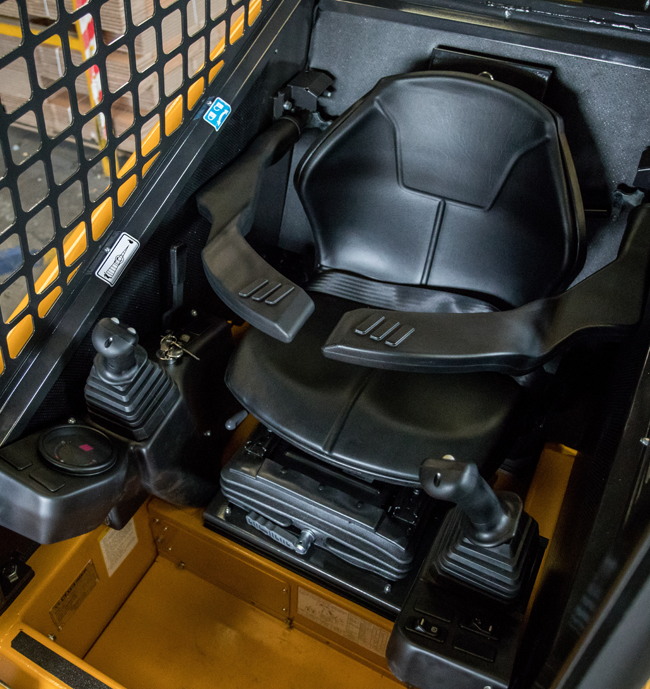

The Kato AS12 Compact Skid Loader features comfortable operators seat with joystick control, increasing productivity

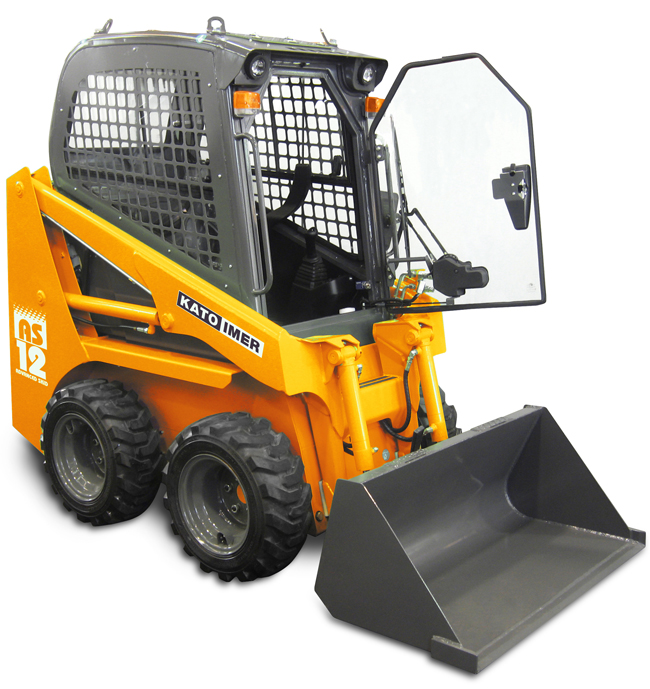

Optional Air conditioned cabin

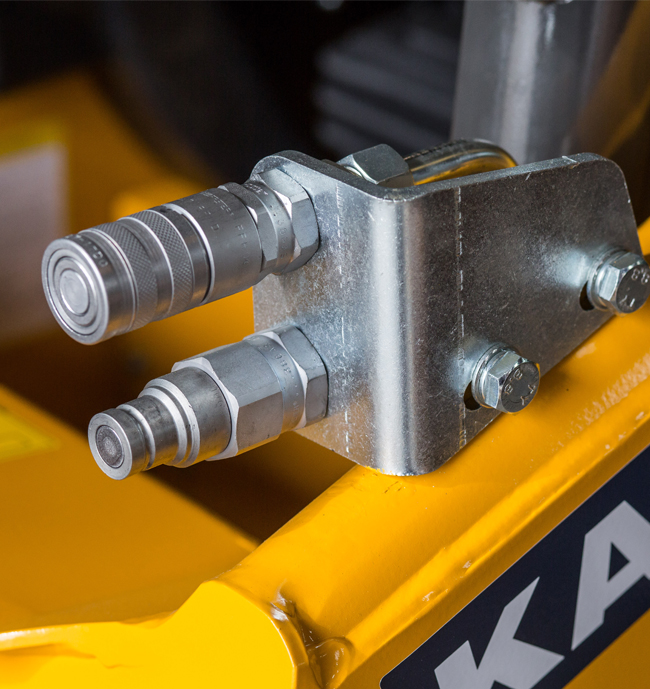

Auxiliary piping control switches are equipped on the joysticks
Serviceability
Our Operator-friendly design enables fuss-free maintenance and easy cleaning

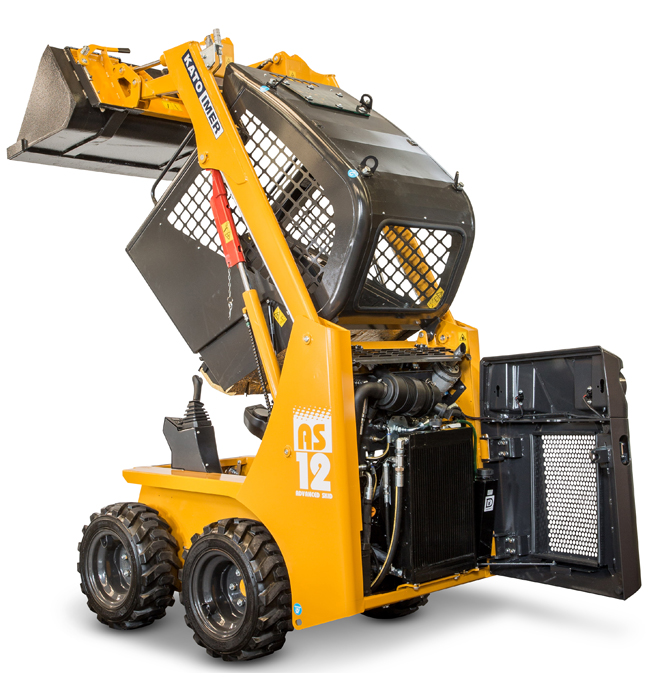

The ROPS can be tilted for easy access to the engine and other service ports

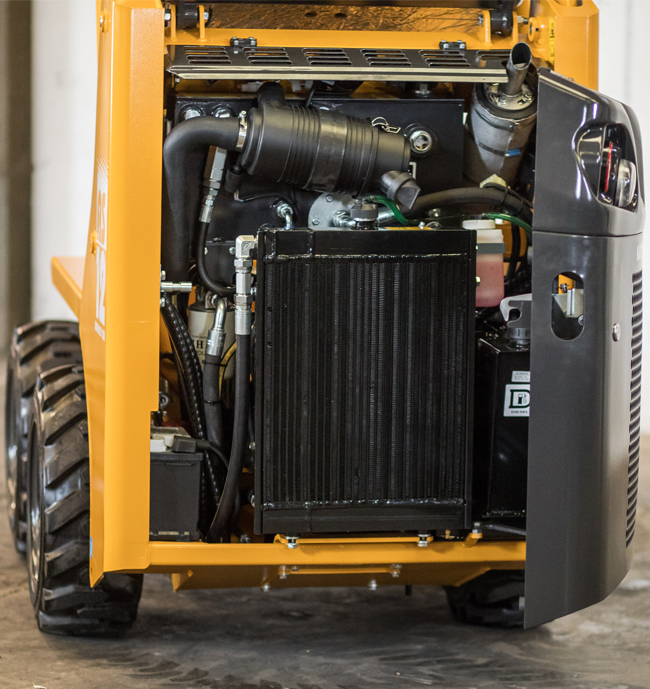

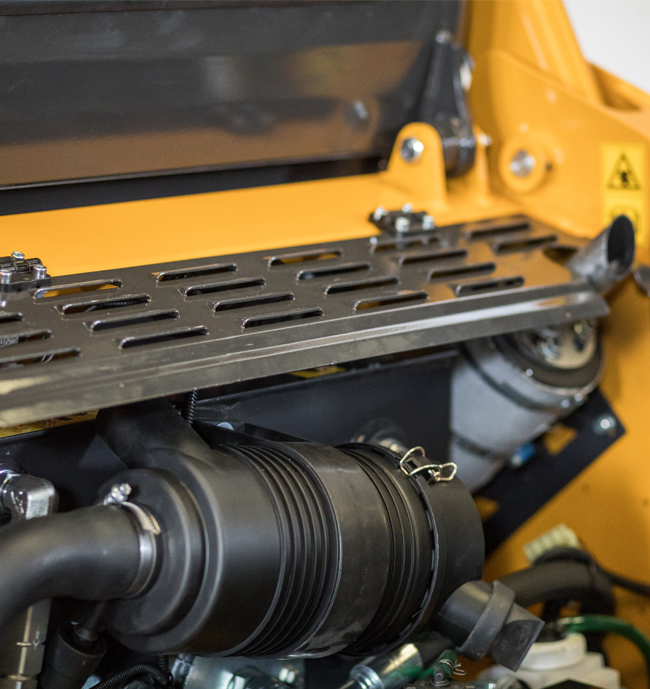

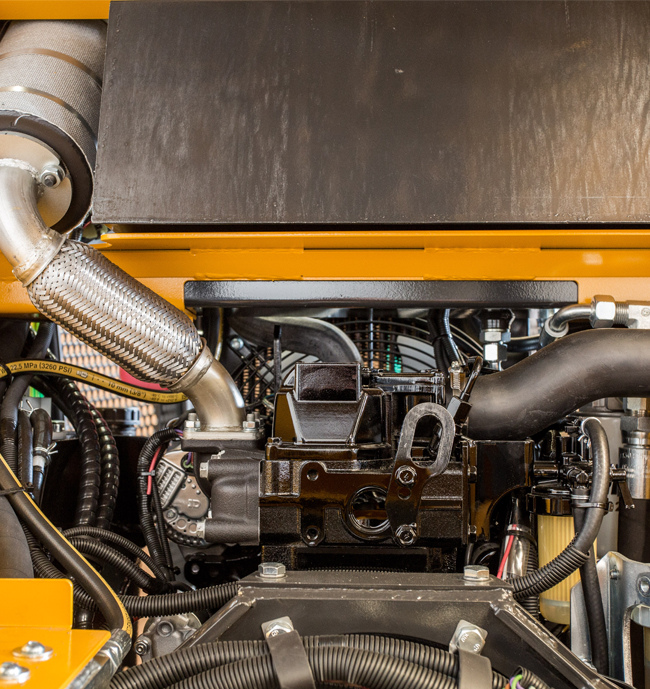

Easy wide opening rear door to access engine bay
Safety
Safety equipment protects operator from dangerous situations:
Safety bar: Locks out controls and offers operator support whilst operating.
Lift arm support: Supports the boom whilst maintenance is taking place.
Hammer for emergency evacuation (located behind the operators seat)
Standard package includes
Standard Tyres 1130mm over-all machine width
Narrow Tyres 960mm over-all machine width
Digga 1130mm High Volume 4in1 Bucket
Kato Narrow GP Buket 980mm
Full range of attachments available
The Kato AS12 will carry a huge range of attachments all available from Earthmoving Warehouse.
