All New V5 Generation Zero Tail Swing Mini Excavator
KATO IHI Mini Excavators 1.7 Tonne Class

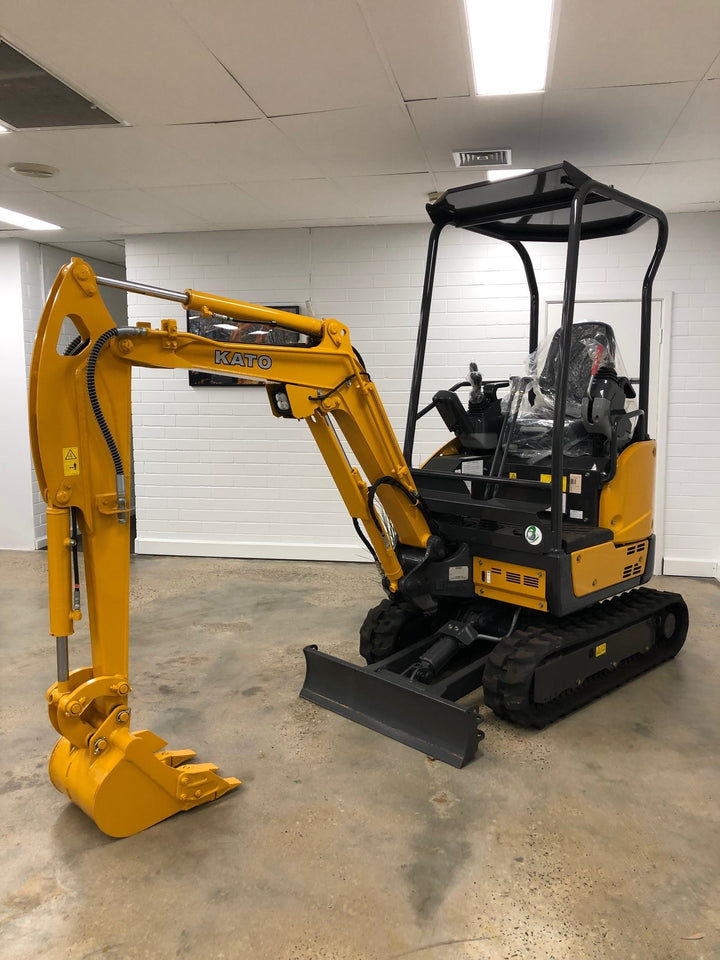

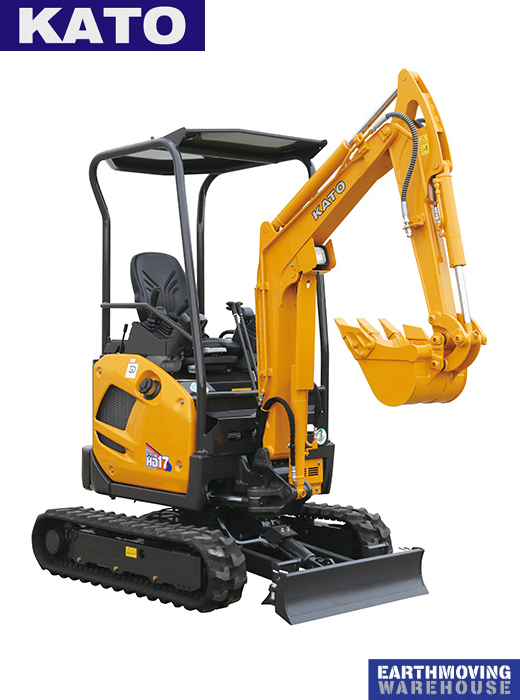

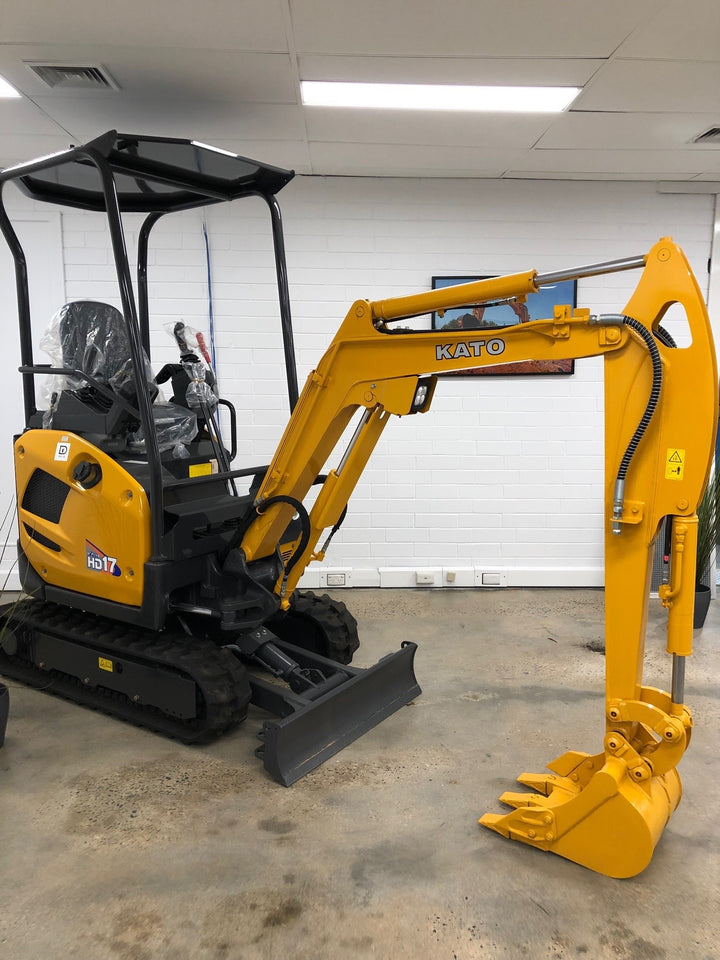

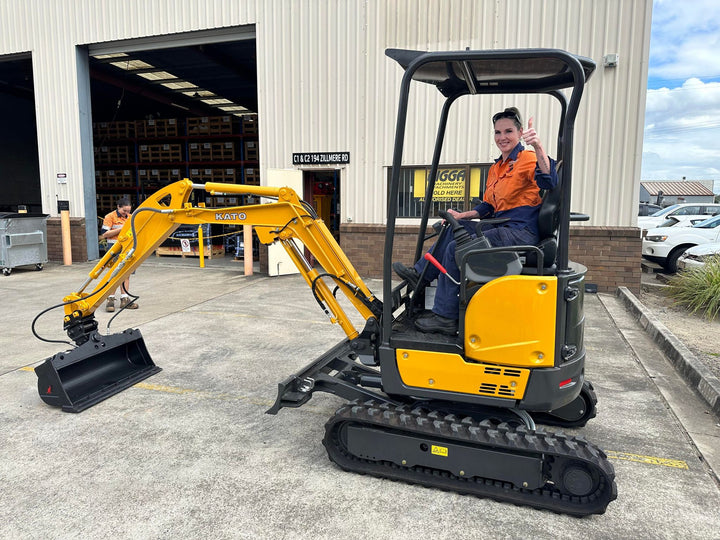

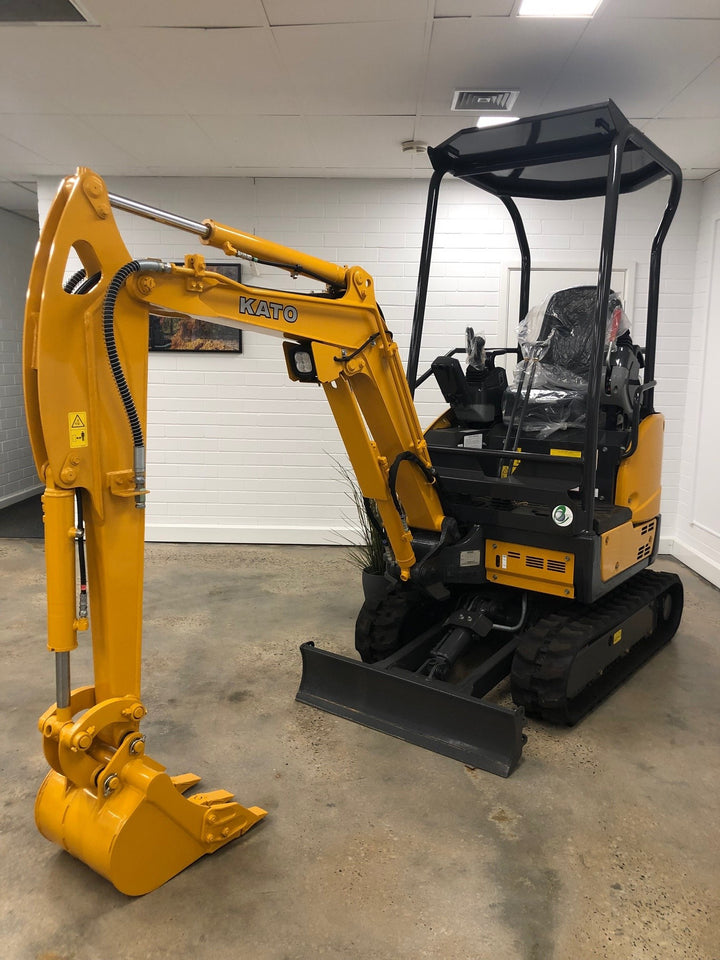

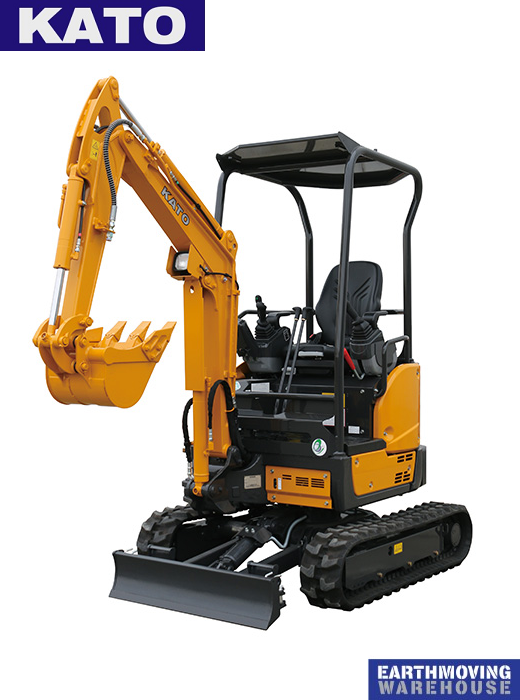

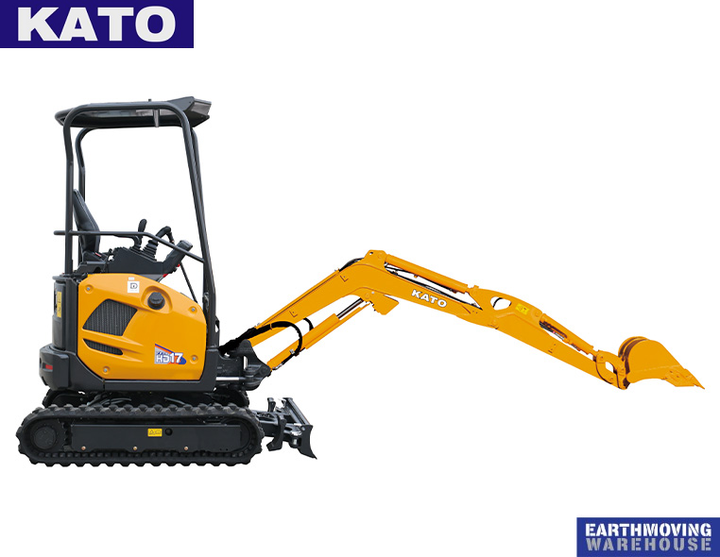

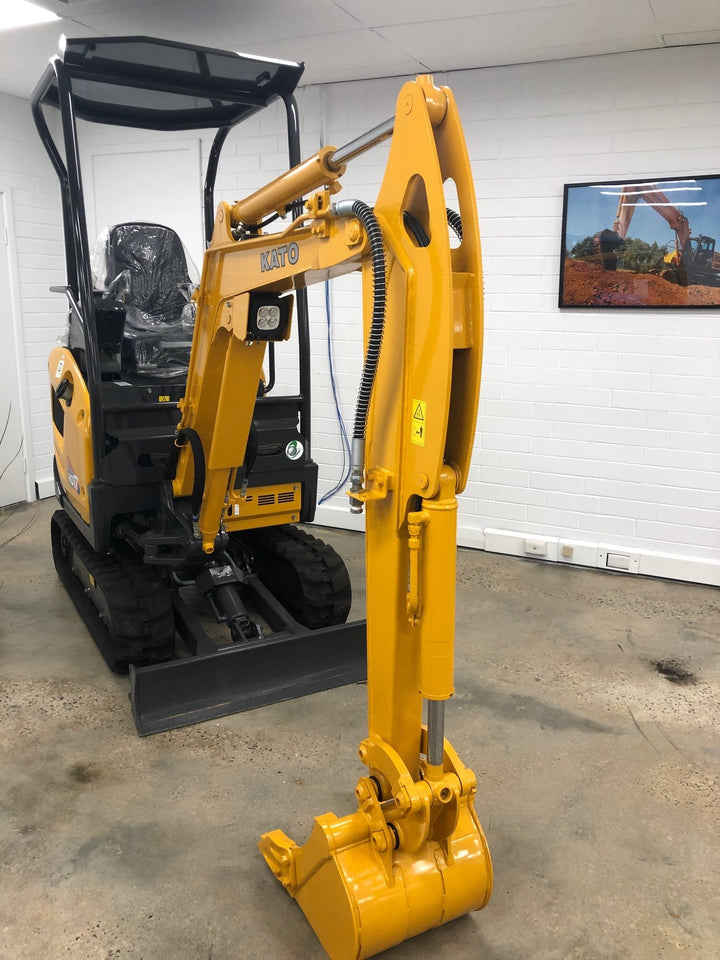

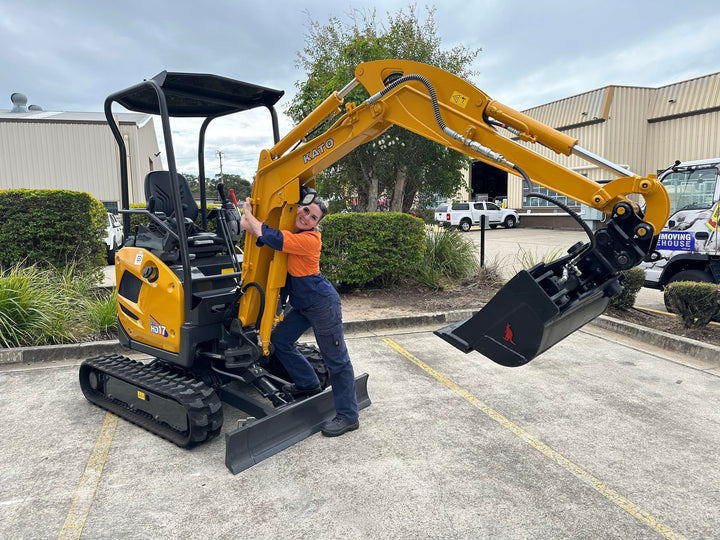

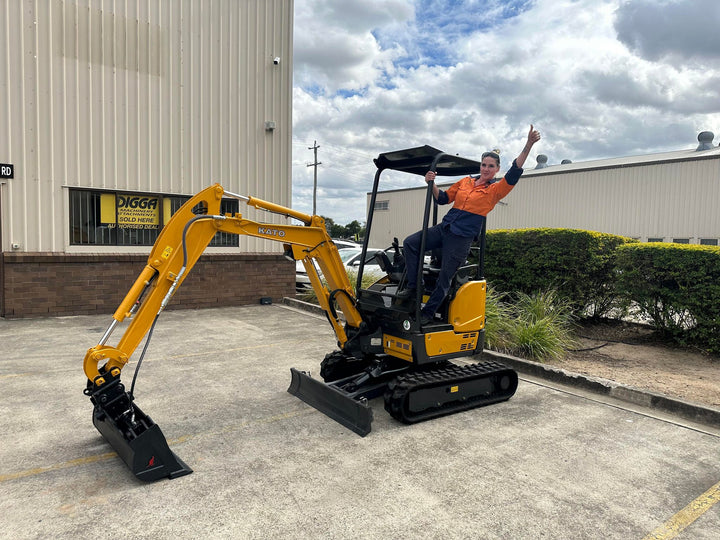

KATO HD17V5 Mini Excavator
Operating Weight - 1780kg (4 Post Canopy)
Yanmar 3TNV74 Engine
Swing Boom (L/R) 55 Degrees/70 Degrees
Powerful bucket Digging force 16.4 kn
Expanding tracks 990-1300mm
Three pump hydraulic system
Hammer/Auger piping with proportional joystick control
Hydraulic quick hitch circuit
Corrosion-free resin 22L fuel tank
Four Post ROPS Canopy
Easy maintenance with wide-opening engine covers
High anti-corrosive aluminum oil cooler and radiator
Segmented boom cylinder hose for easy replacement
Rubber tracks
3 Years/3000 Hours Warranty
- Easily visible monitor
- Legroom enlarged by 20%
- Cabin room enlarged by 25%
- Centralized switches
- Spare power port
- ROPS Certified 4 Post Canopy
- Control Lock Out Lever
- All-lever lock
- Neutral engine-start
- Auto-parking brake in swing & traction motors
- Digging force increased by 10%
- Quickly responsive 3-pump system
- Large covers for easier access

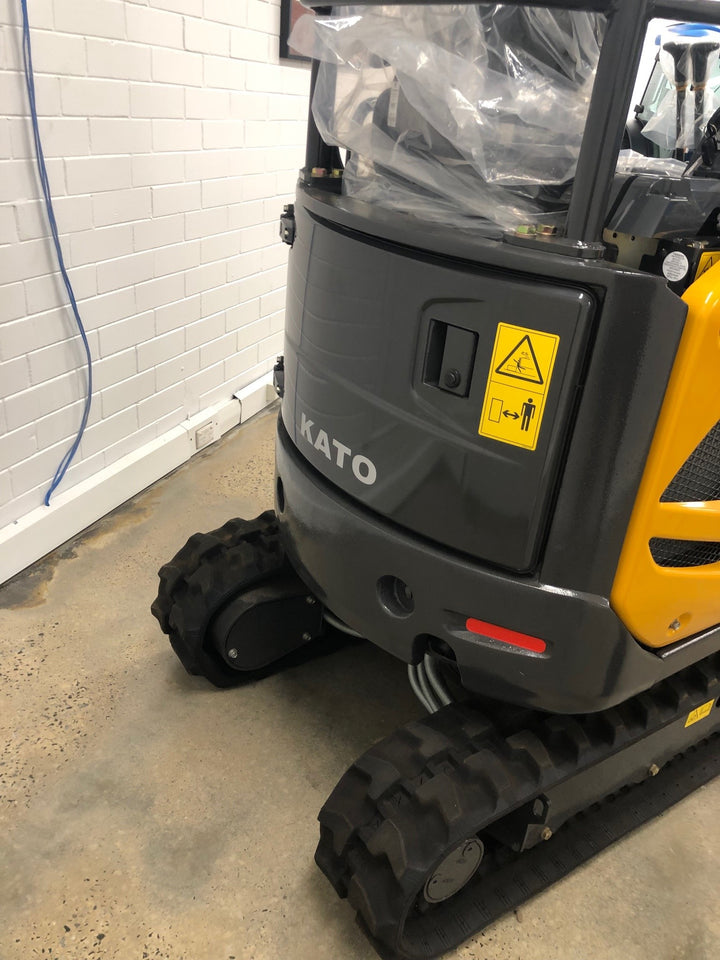

- All engine filters, coolant and battery easily accessible through rear door
- Wide throat opening and lockable fuel cap
- Yanmar 3TNV74 and the 3 pump hydraulic system provide great power and low fuel usage
While the HD17V5 is one of the most compact machines on the market, the wide-opening access panel makes maintenance a breeze. Additionally, a front and center battery has never been easier to test or replace.

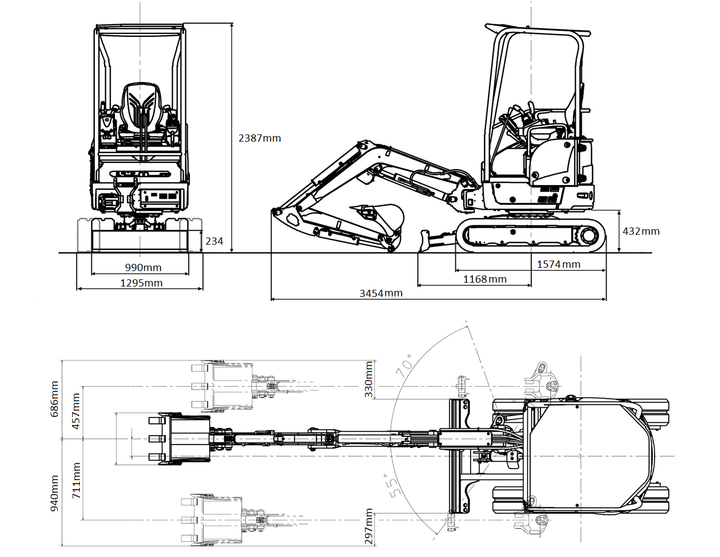

Hydraulic-expandable tracks and folding push blade have an overall width between 990mm - 1295mm, offering the best accessibility and operating stability.
The 17V5 comes equipped standard with an A-F pattern change valve, located underneath the operator floor mat—tool-free access to quickly change control pattern formats.
The 17V5's redesigned ROPS/TOPS four-post canopy has wider access to the operator's seat and extended legroom once inside.
For Pricing, complete the form at the top of the page or Click Here to call our KATO specialists at 0459 WAREHOUSE. (That's 0459 927 346)
