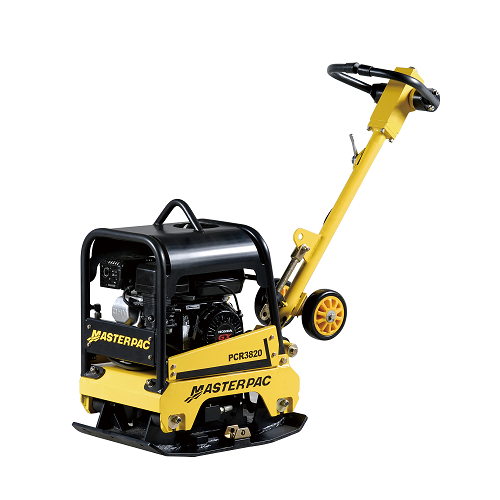

MasterPac PCR3820H Reversible Plate Compactor

$4,800.00 AUD
GST is included in price. Shipping calculated at checkout.
Description

Masterpac PCR3820H Hydraulic Reversible Plate Compactors are ideal and versatile for high production and efficient compaction for sand, gravel and cohesive soils. The reversible vibratory plates offer two eccentric weights which increase the compaction force while creating a smooth transition between forward and reverse travel.

Ideally suited for confined granular and mixed soil applications such as trenches,  highways, dams, parking areas, airports, bridges, and construction foundations.

Features:

  • Hydraulic adjustment control lever for easy direction change.
  • On the spot compaction for problem areas.
  • Infinitely variable hydrostatic forward and reverse motion.
  • Reverse travel safety protection ensures the plate automatically reverts to slow forward travel if the operator releases the travel control lever while reversing.
  • User friendly isolated vibration handle.
  • Fully sealed lubricated wear resistant cast iron vibrator assembly.
  • Handle folds to 45 and 90 degree position for easy transportation and storage.
  • Heavy-duty roll cage with lifting eye protects against dirt and damage for easy transportation.
  • Impact-resistant and open self cleaning base plate.
  • Unique built-in transport wheels provides easy transportation.
  • Convenient Oil drain hose.
  • Robust design sealed belt cover for clutch and belt protection.
  • Electric starter is an option for diesel engine.
  • The optional polyurethane pad for paving applications is available.
  • Powered by gasoline as HONDA GX160

Specifications:

Engine Type:  Honda GX160 Petrol

Power Hp: 4.8

Weight kg: 110

Plate Size mm L x W: 580 x 380

Centrifugal Force kN: 20

Vibration Frequency VPM: 5400

Travel Speed m/min: 22
